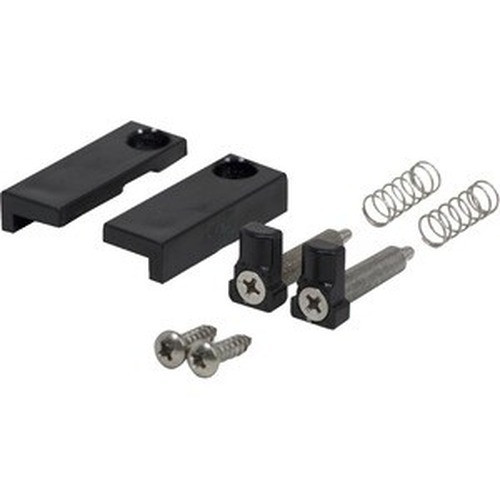

Middle Atlantic Egress Door Sprng PIN SET - XB814SP

Middle Atlantic XB814SP Egress Door Spring Pin Set

Overview

The Middle Atlantic XB814SP is a replacement egress door spring pin set engineered for secure, compliant operation of industrial and commercial enclosure doors. Rated to UL50E Type 6P and IP68 standards, this hardware component ensures your cabinet or panel door meets stringent environmental and electrical safety requirements — critical in surveillance, networking, and equipment-rack environments where door integrity affects both personnel safety and system reliability.

Key Features

• UL50E Type 6P Certification: Meets Underwriters Laboratories standard for indoor/outdoor enclosure construction. Type 6P specifically covers dust-tight and water-tight designs — meaning your door seals function correctly and won't compromise IP ratings through repeated opening/closing cycles.
• IP68 Rating: Submersion-proof construction up to specified depth and duration. On cabinet doors, this rating protects internal electronics from washdown, humid environments, or accidental splash — a genuine asset in server rooms, outdoor telecom cabinets, or surveillance equipment racks near water sources.
• Spring Pin Design: Self-retracting mechanism reduces binding and operator fatigue during frequent access. Spring tension is factory-calibrated; no adjustment needed on installation — faster deployment, fewer field callbacks.
• Black Finish: Corrosion-resistant coating suitable for both indoor and outdoor mounting. The finish resists salt spray and mild chemical exposure common in industrial and marine-adjacent facilities.
• Direct Replacement Component: Engineered for Middle Atlantic enclosure door systems. Ensures mechanical fit and electrical continuity without modification to existing hardware or frame.
• Durable Construction: Precision-machined steel core with high-cycle-life spring mechanism rated for thousands of open/close cycles without degradation — typical lifespan matches or exceeds cabinet operational life in normal commercial environments.

Integration & Compatibility

The XB814SP is a direct-fit replacement for Middle Atlantic egress door assemblies. If you are maintaining, upgrading, or repairing a Middle Atlantic cabinet or enclosure and the existing door pins are worn, binding, or no longer seal properly, this component restores factory specification. No additional tools, special wiring, or software integration required — physical swap-out only. Verify your cabinet model supports this egress pin assembly before ordering; Middle Atlantic's documentation will confirm compatibility with your specific frame.

What's in the Box

The exact package contents for the XB814SP are not itemized in available documentation. Contact the manufacturer or a Middle Atlantic distributor to confirm specific quantities and any included fasteners or gaskets with your purchase.

Frequently Asked Questions

Q: Is the XB814SP a universal egress pin set, or is it specific to Middle Atlantic enclosures?

A: The XB814SP is manufactured by Middle Atlantic as a replacement component for Middle Atlantic enclosure door systems. It is not a universal third-party part. Verify your cabinet model in Middle Atlantic documentation to confirm compatibility before ordering.

Q: What does IP68 rating mean for a door pin component?

A: IP68 means the assembly is dust-tight and can withstand continuous or prolonged immersion in water up to a specified depth. On a cabinet door, this rating contributes to the overall enclosure rating, ensuring seals and mechanisms remain functional even in wet or wash-down environments.

Q: Can I install the XB814SP myself, or do I need a technician?

A: The XB814SP is a direct mechanical replacement — no electrical wiring or programming required. If you are comfortable removing and reinstalling cabinet hardware with basic hand tools, you can perform the swap. However, if door alignment or frame integrity is uncertain, engage a qualified technician to ensure the enclosure maintains its environmental rating after replacement.

Q: What is the warranty on the XB814SP?

A: Warranty information is not detailed in available product documentation. Contact the manufacturer or a distributor for specific warranty terms and coverage duration.

Q: Why would I need to replace the egress door pins?

A: Over time, spring mechanisms can weaken, pins may corrode or bind, and sealing surfaces can wear. Replacement restores smooth door operation, ensures the enclosure maintains its environmental seal, and eliminates potential safety hazards from a door that sticks or fails to close securely.

Karl Wilson

I spec the XB814SP replacement egress pin set for cabinet refresh and maintenance jobs across surveillance and network rack environments. The UL50E Type 6P and IP68 certifications are not marketing claims — they're structural commitments that your enclosure door will continue to seal and function safely after install. The spring pin design on the XB814SP eliminates the binding and creep that develops in older pin assemblies after a few hundred open/close cycles.

Technical Highlights:

• UL50E Type 6P: Ensures your enclosure door meets code for dust and water-tight performance in indoor or outdoor mounted cabinets. Without this certification, you risk failing an inspection or losing environmental rating on the entire system.
• IP68 Sealing: Submersion-proof mechanism protects the cabinet interior from washdown environments and humidity spikes. Not all replacement hardware vendors hold this rating — it matters if your cabinet sits near HVAC condensation or outdoor wash-down zones.
• Spring-Loaded Mechanism: Factory-calibrated tension means no adjustment or maintenance required post-install. You swap, bolt, and close the door. No field-tuning, no return visits for stuck locks.

Deployment Considerations:

• Confirm your cabinet model in Middle Atlantic's documentation before ordering — this is not a universal pin set. Fit and frame compatibility are non-negotiable.
• If your enclosure has been in the field for years and you're seeing slow door closure or moisture tracking around the frame, a pin replacement alone may not restore full IP68 performance if gaskets or frame seals are also degraded. Plan a complete door assembly refresh if environmental rating is critical.

Deploy the XB814SP in outdoor telecom and surveillance equipment racks where door integrity directly impacts system uptime and regulatory compliance. If you have a cabinet running 24/7 with operators accessing it regularly, this component restores the mechanical reliability that keeps your environmental and safety ratings intact.
