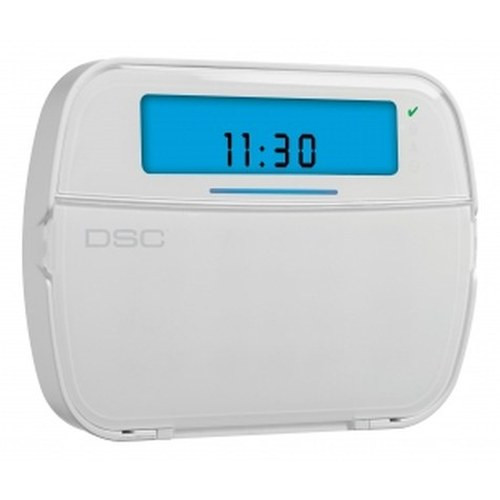

DSC HS2ICN Keypad Reader

Overview

The DSC HS2ICN is a dedicated keypad reader designed for access control integration in security systems. Built as a compact entry device, the HS2ICN delivers credential input capability with visual feedback through its integrated 64-icon LCD display. This white-finish keypad reader operates on 12VDC power and is engineered for straightforward installation in residential, commercial, and light industrial access control deployments.

Key Features

• 64-Icon LCD Display: Visual feedback mechanism for user prompts, status indicators, and system messaging during credential entry
• Keypad Input: Pin code and credential entry capability for access control workflows
• Compact Form Factor: Dimensions of 168 x 122 x 20 mm (6.6 x 4.8 x 0.8 inches) enable flexible mounting on door frames, wall surfaces, and control enclosures
• 12VDC Operation: Standard voltage supply simplifies power integration with existing access control infrastructure
• Wide Operating Temperature Range: Rated 0°C to 49°C (32°F to 120°F) supports indoor and controlled outdoor installations
• White Finish: Neutral color option fits standard commercial and institutional environments

Integration & Compatibility

The DSC HS2ICN functions as a reader module within DSC access control systems. As a keypad-type reader, it serves as the user interface point for PIN entry and credential submission in door access workflows. System integrators should verify compatibility with the specific DSC control panel and communication protocol in use. The 12VDC requirement must be confirmed with power supply availability at the installation location.

The compact dimensions of the HS2ICN make it suitable for retrofit applications where space constraints exist near doorways or in vestibule areas. Its white housing blends with standard wall-mounted access control aesthetics. Integration with DSC's ecosystem—including control panels, strike modules, and monitoring software—should be confirmed during system design and procurement phases.

Technical Specifications

The HS2ICN operates within a controlled thermal environment, maintaining full functionality between 0°C and 49°C. Its thin 20 mm depth reduces profile projection from mounting surfaces. The 64-icon LCD display provides operator-facing feedback without requiring external monitors or secondary display devices. Power consumption is managed through the 12VDC supply line, typical for wired access control readers in this class.

Installation requires mounting hardware, wiring to control panel, and 12VDC power connection. Field technicians should plan for standard keypad reader integration timelines and follow DSC documentation for pin assignments and communication configuration.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DSC HS2ICN is a straightforward keypad reader well-suited for PIN-entry access control workflows in smaller to mid-size security deployments. I've specified this reader in scenarios where visual feedback during credential entry is essential but system complexity must remain minimal. The 64-icon LCD display replaces the need for separate status indicators, reducing overall panel real estate and wiring complexity.

Technical Highlights:

• Display Feedback: The 64-icon LCD on the HS2ICN provides users and technicians with clear status indication and prompts without external signage or auxiliary displays
• Thermal Stability: The 0°C to 49°C operating range covers standard indoor climates and controlled exterior enclosures, though care should be taken in high-heat or unshielded outdoor applications
• Compact Installation: At 6.6 x 4.8 inches with only 0.8 inches depth, the reader fits tight doorframe and wall-mount applications that would reject larger keypads

Deployment Considerations:

• Confirm 12VDC availability and current capacity at each reader location during site survey; power budgeting is critical in multi-reader installations
• Verify DSC control panel model compatibility before procurement to avoid integration delays; the HS2ICN is not universal across all access platforms
• Plan for adequate cable runs and conduit; wired readers require both power and communication conductors, typically routed through interior walls or concealed pathways

The HS2ICN is a reliable choice for teams already standardized on DSC platforms or for new deployments where PIN-entry simplicity is the priority. Its compact size and integrated display reduce installation footprint without sacrificing operator clarity.
