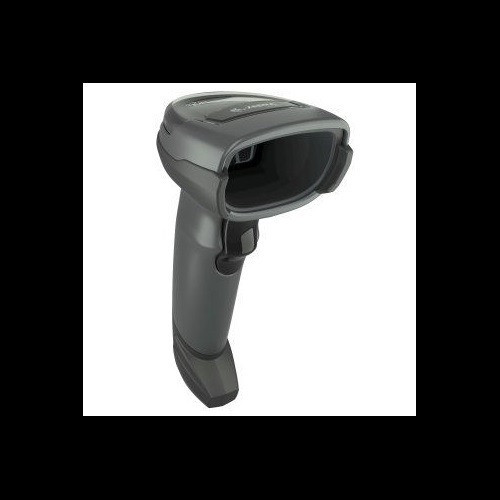

Zebra DS4608-SR Black With Stand USB Kit: DS4608-SR00007ZZWW Scanner - DS4608-SR7U2100SGW
Zebra DS4608-SR Black With Stand USB Kit: DS4608-SR00007ZZWW Scanner - DS4608-SR7U2100SGW
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

Zebra DS4608-SR7U2100SGW Concise Descriptor

Overview

The Zebra DS4608-SR7U2100SGW is a corded imager kit designed for high-volume retail environments. It solves the problem of slow checkout and returns processing by providing rapid barcode capture, even from challenging sources. This specific kit includes the DS4608-SR scanner, a shielded USB cable, and a stand, optimizing its placement and usability at a point-of-sale or returns counter.

Compatibility

This scanner is designed for use with any system that accepts USB HID or USB COM keyboard wedge input. The included shielded USB cable (CBA-U21-S07ZBR) ensures reliable data transfer in environments with potential electrical interference. The included stand (43-114032-04R) is specifically designed for the DS4600 Series imagers.

Installation Notes

The scanner connects via USB, requiring no specialized drivers on most modern operating systems. The included stand allows for hands-free scanning or can be used to position the scanner for manual scanning. The 800 MHz microprocessor and megapixel sensor, combined with Zebra's PRZM Intelligent Imaging technology, enable rapid decoding of 1D barcodes. The scanner can capture UPC codes up to 28 inches away, reducing the need for associates to reach for items in a customer's cart.

What's in the Box

  • 1x DS4608-SR00007ZZWW Scanner
  • 1x CBA-U21-S07ZBR Shielded USB Cable
  • 1x 43-114032-04R Stand
Expert Analysis
Specifications
Dimensions: 6.5 in. H x 2.6 in. W x 3.9 in. D
Weight: 5.7 oz. / 161.9 g
Input Voltage Range: 4.5 to 5.5 VDC
Operating Current: 340 mA (typical)
Standby Current: 150 mA (typical)
Color: Nova White, Twilight Black
Host Interface: USB, RS232, TGCS (IBM) 46xx over RS485
Decode Capability 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32
Decode Capability OCR: OCR-A, OCR-B, MICR, US Currency
Image Sensor: 1280 x 800 pixels
Minimum Reflective Difference: 15%
Minimum Element Resolution Code 39: 3.0 mil
Minimum Element Resolution DataMatrix: 5.0 mil
Skew Tolerance: +/- 60°
Pitch Tolerance: +/- 60°
Roll Tolerance: 0° - 360°
Decode Range UPC: 0 in./0 cm to 28.0 in./71.1 cm
Operating Temperature: 32.0° to 122.0° F / 0.0° to 50.0° C
Storage Temperature: -40.0° to 158.0° F / -40.0° to 70.0° C
Humidity: 5% to 95% RH, non-condensing
Drop Specification: 6.0 ft./1.8 m to concrete
Tumble Specification: 2,000 tumbles in 1.5 ft./0.5 m tumbler
Environmental Sealing: IP52
Electrostatic Discharge Immunity: +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light: 0 to 10,000 foot candles/0 to 107,000 Lux
Warranty: Five Years
