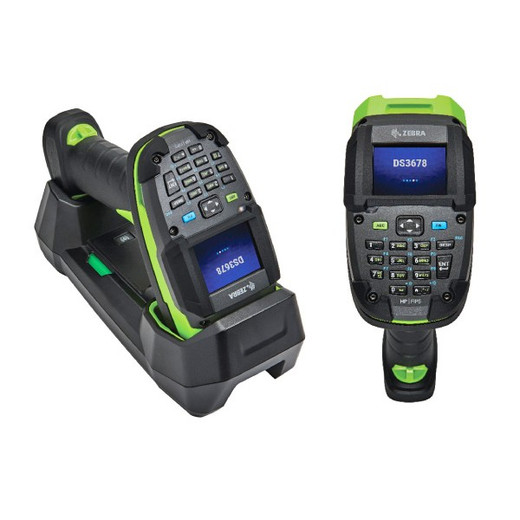

Zebra DS3678-DP2FCC3VTNA TAA Rugged Area Imager

Overview

The Zebra DS3678-DP2FCC3VTNA is a TAA-compliant, rugged 2D area imager designed for demanding industrial environments. It provides reliable, high-performance scanning of direct part marks (DPM) and standard barcodes, crucial for manufacturing, logistics, and warehouse operations where data capture accuracy and device durability are paramount. Its cordless design offers unrestricted movement for operators, improving workflow efficiency in challenging settings. This model is engineered to withstand drops, dust, and extreme temperatures, ensuring continuous operation.

Compatibility

This scanner is designed to integrate with Zebra's DS3600 Series rugged scanners. It is compatible with Zebra's 3600 Series cordless accessories, including charging cradles and communication bases. For specific host system integration, it connects via Bluetooth to Zebra's SE4100 scan engine, which supports various host interfaces through appropriate cables (sold separately). It is intended for use with Zebra's mobile computers and other host devices requiring high-performance barcode scanning.

Installation Notes

The DS3678-DP2FCC3VTNA requires a compatible Zebra charging cradle and communication base (e.g., CR3600-PS2000). Ensure the cradle is powered correctly. For Bluetooth pairing, follow the instructions in the user guide to connect the scanner to its base or directly to a host device. The device is rated for drops up to 2.4m (8 ft) to concrete and sealing to IP67 and IP65 standards, indicating robust protection against dust and water ingress, but should not be submerged beyond specified limits.
