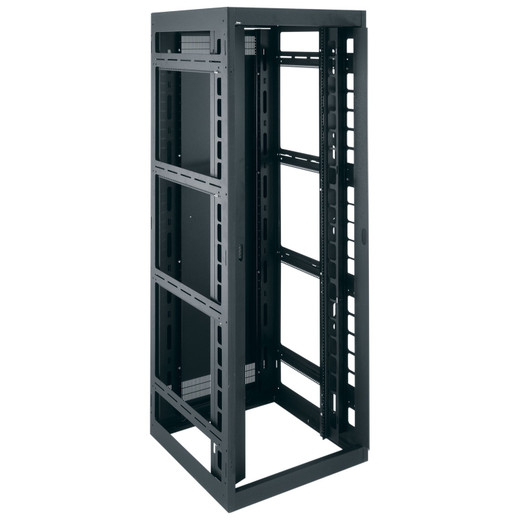

Middle Atlantic DRK19-44-42 44U Deep Data Rack — Frame Only

Overview

The Middle Atlantic DRK19-44-42 is a 44U, 42-inch-deep floor-standing steel rack built for data centers, security head-end rooms, and mission-critical AV/IT equipment installations where structural integrity, seismic compliance, and raw load capacity are non-negotiable. At 83.49 inches tall with 77 inches of usable height, this frame accommodates even the densest NVR, server, and switch stacks without dead-end compromises. Specified and shipped as a frame-only configuration, it gives integrators a clean starting point for custom panel, shelf, and blanking layouts rather than locking them into pre-configured kits that rarely match real-world deployments. The DRK19-44-42 (often searched as DRK19 44 42) ships domestically from US origin, TAA-compliant, and carries an OSHPD seismic listing — a hard requirement for California healthcare facilities and a differentiator in any seismically active region.

Explore the full Middle Atlantic rack and enclosure line for companion accessories, cable management, and power distribution configured for this frame family.

Key Features

• 44 Rack Units / 77 in. Usable Height: 44U of usable space across 77 inches means you can stack a 16-channel NVR, a PoE switch, a UPS, patch panels, and still have room to grow without ordering a second rack. Fewer racks on the floor means simpler cable runs and lower real estate cost in cramped security head-end rooms.
• 2,500 lb UL-Listed Load Capacity: The UL 2500 lb load rating is the number that matters for permitting and insurance documentation — not a marketing claim. Dense security equipment loads (multiple NVRs with drive arrays, switches, battery backups) can push 800–1,200 lbs without effort; this rack handles that with headroom to spare.
• 10,000 lb Static Weight Capacity: The 10,000 lb static capacity confirms the frame's structural design for fully loaded builds with no concern about frame fatigue over years of 24/7 operation. Relevant for permanent installations where the rack stays put and equipment cycles in and out on a multi-year refresh schedule.
• 42 in. Total Depth / 34.85 in. Usable Depth: At 42 inches overall depth with 34.85 inches usable, this rack accommodates deep 1U/2U servers, full-depth UPS units, and cabled NVRs without forcing cable-management gymnastics at the rear. Shallow equipment installs just as cleanly with rear-rail adjustment.
• Seismic Rating — ASCE 7-10 / OSHPD Listed: The OSHPD seismic listing (California's Office of Statewide Health Planning and Development) is one of the most stringent seismic certifications in the industry. If the project is a California hospital, clinic, or any facility subject to OSHPD review, this listing satisfies the structural documentation requirement outright. For non-healthcare projects in seismic zones, ASCE 7-10 compliance covers most AHJ requirements.
• Gangable Design: The DRK series is gangable, meaning multiple units bolt together side-by-side to form a continuous equipment wall. This is the correct approach for large security operations centers or data rooms where 44U per bay isn't enough — gang four bays and you have 176U of continuous, organized rack space without visible gaps or structural weak points at the joints.
• 19 in. EIA-Standard Rails, 10-32 Threading: Standard 10-32 threaded rails accept virtually all 19-inch rack-mount equipment without adapter kits. If you're specifying this alongside managed PoE switches, NVRs, or patch panels from any major vendor, compatibility is a non-issue.
• Rear Door Included: The rear door ships with the rack, providing physical access control to rear cabling and equipment ports — a basic but often overlooked requirement in shared facilities or co-located head-end rooms where the front is locked but the rear is exposed.
• Steel Construction, USA Origin: All-steel construction from a US manufacturing origin supports TAA compliance documentation for government and federally funded projects. The frame's material and build meet the durability expectations for 10+ year installation life without corrosion or structural degradation in climate-controlled environments.
• 30 in. External Width: At 30 inches wide, the DRK19-44-42 fits standard raised-floor tile grids and doorway clearances that a wider enclosure would not. Plan for 36 inches minimum aisle width alongside this rack for proper airflow and service access — standard for any data rack installation.

Integration and Compatibility

The DRK19-44-42 is engineered for integration with the full Middle Atlantic accessory ecosystem — horizontal and vertical cable managers, brush panels, blanking panels, sliding shelves, power distribution units, and mounting rails all attach to the 10-32 threaded rail pattern without modification. The gangable design works with adjacent DRK-series bays using Middle Atlantic gang hardware. This rack pairs directly with rack-mount power distribution units and UPS systems for complete head-end builds. For large-format surveillance deployments feeding multiple NVRs into a centralized rack, a dedicated cable management strategy for the 34.85-inch usable depth is worth planning before installation — rear-to-front cable routing in deep racks without vertical managers becomes a maintenance problem on a 3–5 year timeline.

The rack is not rated for outdoor or wet-location use. It is intended for climate-controlled data, security, or AV head-end rooms. No equipment is included — this is a frame-only SKU. Power distribution, shelving, blanking panels, and cable management are ordered separately.

Frequently Asked Questions

Q: Is the DRK19-44-42 TAA compliant?

A: Yes. The DRK19-44-42 is TAA compliant and manufactured in the USA, making it eligible for GSA schedule and federal procurement projects requiring Trade Agreements Act compliance.

Q: What is the UL-listed load capacity of the DRK19-44-42?

A: The UL-listed load capacity is 2,500 lbs (1,134 kg). The static weight capacity of the frame itself is 10,000 lbs (4,535.9 kg). For permitting and insurance documentation, use the UL-listed figure of 2,500 lbs.

Q: Is the DRK19-44-42 seismic rated?

A: Yes. It carries an OSHPD seismic listing (California Office of Statewide Health Planning and Development) and meets ASCE 7-10 seismic load requirements — one of the most stringent seismic certifications applicable to rack systems. This satisfies AHJ documentation requirements in seismically active regions and is a hard requirement for California healthcare facility installations.

Q: What rack unit and depth configurations does this model provide?

A: The DRK19-44-42 provides 44U of rack space (77 inches of usable height) in a 42-inch total depth frame (34.85 inches usable depth). External dimensions are 83.49 in. H × 30 in. W × 42 in. D.

Q: Does the DRK19-44-42 include shelving, power strips, or cable management?

A: No. This is a frame-only configuration. No shelves, power distribution units, blanking panels, or cable managers are included. These must be ordered separately.

Q: Can multiple DRK19-44-42 units be ganged together?

A: Yes. The DRK series supports gangable installation, allowing multiple bays to be bolted side-by-side to form a continuous rack wall. This is the recommended approach for large security operations centers or data rooms requiring more than 44U of capacity.

Karl Wilson

The spec that defines where the DRK19-44-42 belongs on a project is the OSHPD seismic listing. I've specified this rack in security head-end rooms for California hospital expansions where the structural engineer requires OSHPD rack documentation before the room closes — and the DRK19-44-42 delivers that paperwork without a custom engineering study. The 2,500 lb UL load rating combined with 44U of usable space handles a dense NVR + switch + UPS build with margin left over.

Technical Highlights:

• OSHPD / ASCE 7-10 Seismic Certification: Satisfies AHJ structural documentation in California healthcare and high-seismic-zone projects outright — no supplemental engineer letter required in most jurisdictions.
• 2,500 lb UL-Listed Load / 10,000 lb Static Capacity: The UL figure is what goes on permit drawings; the 10,000 lb static number tells you the frame's actual structural margin. Dense security builds topping 1,200 lbs loaded are well within range.
• 34.85 in. Usable Depth: Accommodates full-depth 2U NVRs, tower UPS in a rack-mount kit, and rear-cabled patch panels simultaneously — the real-world test most spec sheets skip.

Deployment Considerations:

• Frame-only SKU: budget separately for cable managers, blanking panels, PDUs, and shelves before submitting the BOM — the rack ships as a bare frame.
• At 30 inches wide, door clearance is typically fine, but verify your raised-floor or slab cutout dimensions before delivery on retrofit jobs — 30W × 42D requires more floor prep than a standard 24-inch-deep enclosure.

The DRK19-44-42 is the right call for permanent, high-density security and IT head-end rooms in California healthcare facilities, government buildings, and any project where seismic documentation is a permit prerequisite — not just a nice-to-have.
