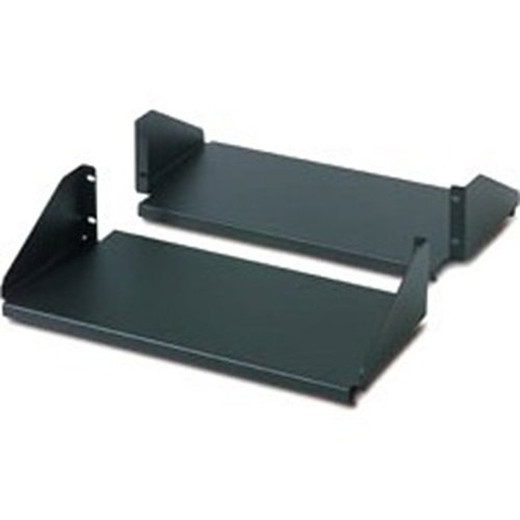

APC by Schneider Electric AR8422 Double-Sided Fixed Shelf for 2-Post Rack
Overview
The AR8422 is a double-sided fixed shelf designed for APC and compatible 2-post open-frame racks. At 19.49 inches wide and rated to 250 lbs, it gives integrators and IT teams a reliable, high-capacity horizontal storage platform for heavy rack-mounted equipment — patch panels, UPS batteries, cable management trays, or ancillary gear that doesn't ship in a standard 1U or 2U form factor. The black finish matches standard APC rack aesthetics, keeping mixed-equipment deployments visually consistent. For a broader look at the APC by Schneider Electric catalog, including compatible open-frame and enclosed rack systems, the full line covers a wide range of physical infrastructure needs.
Key Features
- 250 lb Load Capacity: Handles heavy passive equipment — battery strings, dense patch fields, or stacked accessories — without flex or sag. Plan your weight distribution across multiple shelf positions to stay within the rack's total floor-load rating.
- Double-Sided Design: Equipment can be loaded from the front or rear of the shelf, which matters in open 2-post deployments where rear access is part of the workflow. Single-sided shelves force front-loading only; the AR8422 doesn't.
- 19.49-Inch Width: Sized for standard 19-inch rack equipment with clearance for mounting ears and cable egress — fits without shimming or adapter kits in compliant 2-post frames.
- Fixed Mount (No Slide Mechanism): Fewer moving parts means less vibration risk for sensitive passive gear. If you need tool-access sliding for active equipment, evaluate a sliding variant; fixed is the right call for static loads.
- Black Finish: Matches APC NetShelter and open-frame 2-post rack aesthetics. Consistent finish matters in customer-facing or audited environments where rack appearance is reviewed.
Integration & Compatibility
The AR8422 is designed for 2-post open-frame rack systems using standard 19-inch EIA spacing. Verify your rack's post depth and mounting hole pattern (square, round, or threaded) before ordering — 2-post shelves depend on the post geometry for stable installation. This shelf does not include a cable management arm or side panels; pair it with appropriate rack cable management accessories if routing discipline is required in an open-frame environment. For enclosed cabinet deployments, evaluate APC's 4-post shelf variants instead — 2-post shelves are optimized for open-frame configurations where rigidity comes from the shelf's own structure rather than four-corner support.
Frequently Asked Questions
Q: What rack post configuration does the AR8422 require?
A: The AR8422 is designed for 2-post open-frame racks with standard 19-inch EIA rail spacing. It is not intended for 4-post enclosed cabinets.
Q: What is the maximum load capacity of the AR8422?
A: The AR8422 is rated to 250 lbs, making it suitable for heavy passive equipment including dense patch panels, battery accessories, and cable management hardware.
Q: Is the AR8422 compatible with non-APC 2-post racks?
A: The shelf uses standard 19-inch EIA mounting dimensions. Compatibility with non-APC 2-post frames depends on the post hole pattern (square, round, or threaded) — verify your rack's spec before ordering.
Q: Does the AR8422 ship with mounting hardware?
A: Package contents are not confirmed in available evidence. Contact the seller prior to ordering if specific hardware inclusions are required for your installation.
The AR8422 comes up regularly in 2-post open-frame deployments where integrators need a robust fixed platform rated well above the typical passive-load scenario — the 250 lb capacity is the spec that separates it from lighter utility shelves that flex under battery or dense-patch loads.
Technical Highlights:
- 250 lb Fixed Load Rating: Handles stacked passive gear without the deflection you see in cheaper 1U shelves — relevant when you're staging multiple battery modules or heavy cable trays on a single platform.
- Double-Sided Access: In open 2-post frames where technicians work both faces of the rack, front-and-rear loading capability cuts the time spent repositioning equipment for rear-face cable termination.
- 19.49-Inch Width: Fits standard EIA 19-inch rails without adapter hardware — the clearance accommodates mounting ears and cable egress in the same footprint, which matters when rack real estate is tight.
Deployment Considerations:
- Confirm your 2-post rack's total floor-load rating before stacking multiple 250 lb shelves — the shelf capacity and the rack's aggregate rating are separate constraints.
- This is a fixed shelf, not a sliding variant — budget for front-access workflow only when positioning active equipment; fixed mounts are the right call for static passive loads but the wrong call if you need tool-side sliding access post-installation.
The AR8422 is the right pick for open-frame 2-post deployments in telecom closets and intermediate distribution frames where passive load density is high and double-sided access to the rack face is a daily operational requirement.
