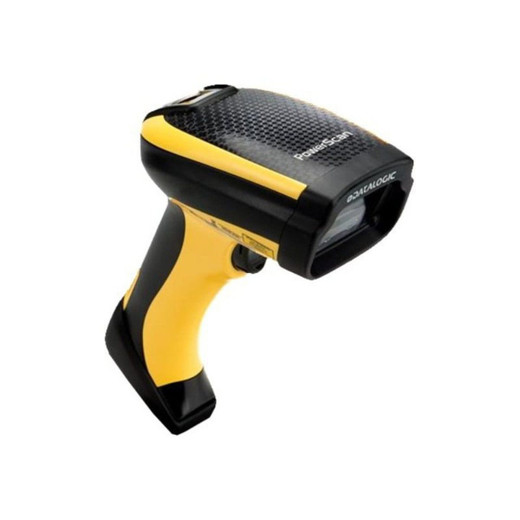

Datalogic PowerScan 9500 PM9501 Industrial Barcode Scanner
The Datalogic PowerScan 9500 Series Industrial Handheld Barcode Scanner (PM9501-DDPM910RB) delivers rugged, enterprise-grade barcode capture for manufacturing, warehouse, and logistics operations. Built with Liquid Lens autofocus technology and 2D area imaging, this scanner reads 1D and 2D barcodes omnidirectionally across variable distances, maintaining high throughput in demanding industrial environments.
Key Features
- 2D Area Imager with Liquid Lens autofocus for flexible focal range and depth-of-field
- IP65 sealed construction protects against dust and water ingress
- 2.0 m (6.6 ft) drop rating for rugged handling in warehouse and manufacturing settings
- Multi-connectivity options: USB, RS-232, Bluetooth, and STAR 2.0 Radio (100 m range)
- Omnidirectional 1D/2D barcode reading with no specific orientation required
- Datalogic Green Spot good-read feedback for operator confirmation
- Extended battery life supporting 30,000+ reads per charge
- Compact weight of 422 g (0.93 lb) reduces operator fatigue
Technical Specifications
- Scan Technology: 2D Area Imager with Liquid Lens
- Dimensions: 71 x 198 x 102 mm (2.8 x 7.8 x 4.0 in)
- Weight: 422 g (0.93 lb)
- Environmental Rating: IP65 (dust and water resistant)
- Drop Resistance: 2.0 m (6.6 ft)
- Connectivity: USB, RS-232, Bluetooth, STAR 2.0 Radio
- Warranty: 1-Year Limited
Ideal Applications
The PowerScan 9500 Series excels in high-volume capture environments where consistent performance and data accuracy directly impact operational efficiency. Deploy across manufacturing production lines, warehouse receiving and shipping, logistics sorting operations, retail inventory management, and healthcare supply chain environments. The omnidirectional reading capability and Liquid Lens autofocus eliminate re-scanning delays caused by poor barcode orientation or focus issues.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PowerScan 9500 addresses total cost of ownership concerns through standardized hardware architecture that scales across multiple facilities. The combination of IP65 rating and 2.0 m drop resistance means this scanner handles real-world abuse without premature failure. Liquid Lens technology differentiates this model by enabling consistent reads across varying barcode distances and sizes without mechanical focusing delays.
Multi-connectivity (wired USB/RS-232 plus wireless Bluetooth and STAR 2.0 Radio) provides flexibility to integrate into existing IT infrastructure or upgrade to wireless workflows without device replacement. The 30,000+ read battery capacity supports full-shift operation with minimal downtime, while Green Spot feedback reduces scanning errors and training time. For enterprises managing device fleets across multiple locations, the PowerScan 9500 simplifies spare parts inventory and training by providing a single proven platform backed by Datalogic factory support and certified repair services.
