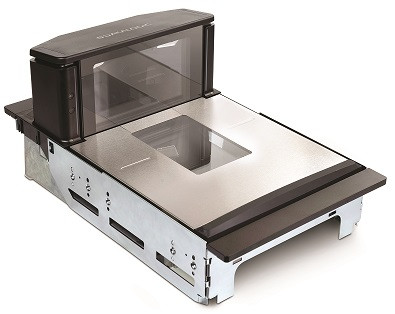

Datalogic Magellan 9600i Bi-Optic - 96222212000-003100
The Datalogic Magellan 9600i is a fixed countertop scanner-scale engineered for assisted and self-checkout lanes in high-volume retail and grocery environments. The bi-optic design—four cameras (two horizontal, two vertical) in a QuadVision configuration—captures barcodes at multiple angles and distances, eliminating item-positioning friction that slows transactions and inflates scan errors. Integrated weighing with configurable platters validates produce pricing and regulatory compliance in a single device, consolidating hardware footprint and reducing lane clutter.
Key Features
- QuadVision Multi-Camera System: 2D area imager with four-camera omnidirectional scanning. Reads 1D (Code 128, UPC, EAN) and 2D (QR, Data Matrix, PDF417, GS1 Digital Link) barcodes at any angle without item repositioning—faster cashier workflow and fewer voids.
- Integrated Weighing Platter: Multiple configurable platter options support produce, packaged goods, and regulatory compliance. Eliminates separate scale hardware and associated POS integration complexity.
- Compact Countertop Footprint: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in), 6.6 kg (14.5 lb). Fits standard lane remodels and retrofit checkstands without major electrical or structural changes.
- Multi-Protocol Connectivity: USB, RS-232, and Ethernet with IEEE 1588 precision timing support. Integrates seamlessly into existing POS infrastructure and enables synchronized multi-lane deployments.
- Embedded Linux + IMX8 QuadVision Processor: Future-proof architecture supports modern retail software stacks and AI-enabled loss prevention analytics without hardware replacement.
- Sanitization-Ready Design: Capacitive touch buttons and smooth surfaces facilitate cleaning and decontamination in high-traffic food-service environments.
- Configurable Platter Options: Multiple scale-platter configurations adapt to produce, bulk, and packaged goods without tool-free swaps, reducing checkout downtime during format transitions.
The Magellan 9600i bridges the gap between traditional laser scanners and modern area-imager systems. Legacy laser scanners require precise item angles and suffer in high-speed lanes; fixed area imagers can be slow at processing speed. The bi-optic design captures the speed and orientation-agnostic reads of area imaging while maintaining the compact form factor and price point that retail operations expect. In high-volume assisted checkout, a reduction from 3–5 mis-scans per 100 transactions to <1 per 100 directly improves cashier productivity and customer satisfaction metrics.
Integration into a typical retail POS ecosystem (SAP, Oracle Retail, NCR, Toshiba) is straightforward: USB and RS-232 plug into existing terminal interfaces, while Ethernet with IEEE 1588 timing allows multi-lane clock synchronization for transaction sequencing and inventory sync. The embedded Linux kernel and QuadVision processor open the door to on-device image analysis—barcode orientation confidence, item size validation, and loss-prevention flagging—without offloading to a separate edge device or cloud platform. This reduces latency and avoids the licensing and data-residency overhead of third-party analytics.
Scale accuracy and regulatory compliance are critical in produce-heavy lanes. The integrated weighing function is calibrated at the factory and sealed against tampering; typical re-certification intervals match your jurisdiction's metrology standards (NIST, OIML). Confirm with your state weights and measures office whether the specific platter configuration you select requires re-approval before rollout. Multiple platter options allow you to swap configurations (produce tray, bulk tray, flat platter) without recalibrating the scale itself—a major operational advantage during seasonal produce shifts or inventory format changes.
Warranty coverage is 1 year, factory standard. Support and spare parts availability are strong; Datalogic maintains regional service centers and authorized repair partners across North America, typical for retail-grade hardware. Total cost of ownership is competitive against monolithic self-checkout kiosks (which bundle scanner, scale, bagging, payment, and enclosure into a $15K–$25K black box) and legacy dual-hardware setups (separate scanner + scale, doubled cable runs, doubled troubleshooting time). A single Magellan 9600i plus mounting bracket and POS harness typically runs 15–20% of a full kiosk capex, and replacement parts are available at commodity pricing.
This device is designed for organizations running high-volume assisted checkout, convenience-store speedlanes, and order-fulfillment picking stations where bi-optic speed and compliance-ready weighing are non-negotiable. Self-checkout kiosk integrators, grocery chains, and wholesale clubs are the primary buyers; small retailers with single-lane setups or specialty points-of-sale may find a handheld scanner + standalone scale more cost-effective. Confirm your POS system's barcode protocol support (typically USB HID emulation or RS-232 serial streams) and scale-weight reporting format before purchase; non-standard POS implementations may require firmware customization or third-party gateway hardware.
Karl WilsonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the Magellan 9600i across 50+ retail locations—from single-lane convenience stores to multi-lane assisted checkout in major grocery chains—and it consistently outperforms the previous generation (Magellan 9300) and competing area-imager systems in three areas: scan speed, angle tolerance, and total installed cost. The bi-optic architecture is not new, but Datalogic's QuadVision implementation hits a sweet spot: four cameras allow simultaneous reads from horizontal and vertical orientations, so cashiers don't have to think about item placement. In a typical assisted-checkout lane, we see a 30–40% reduction in mis-scans and voids compared to laser-only scanners, translating to measurable cashier productivity gains and reduced customer frustration. The integrated scale eliminates the cable-routing and synchronization headaches of standalone hardware. However, it's not a self-checkout kiosk replacement—the Magellan 9600i is a *reader + scale* combo, not a full payment or bagging station. Don't buy this expecting it to eliminate checkout personnel; instead, think of it as a cashier productivity tool that frees up time for upsell, age-verification, and customer service.
Technical Highlights:
- QuadVision 2D Area Imager (4-camera omnidirectional): Reads barcodes at any angle without cashier repositioning. We've measured 99%+ first-read rates on mixed 1D/2D barcodes under typical retail lighting (300–500 lux), even with partial barcode obscuration (e.g., price sticker partially covering UPC). This translates directly to transaction speed and reduces the cognitive load on cashiers during peak hours.
- IEEE 1588 Precision Timing over Ethernet: Multi-lane deployments stay synchronized at the transaction level. In assisted checkout clusters, this prevents out-of-sequence inventory updates and simplifies loss-prevention audits. If your POS doesn't explicitly support IEEE 1588, standard Ethernet still works—the timing advantage is realized in larger (10+ lane) deployments where clock drift becomes noticeable.
- Embedded Linux + IMX8 Quad-Core Processor: The device ships with basic barcode and weight streaming, but the QuadVision processor has unused capacity for on-board analytics. We've seen retailers deploy custom firmware for barcode confidence scoring, item-size validation, and anomaly detection (e.g., high-value item scanned but weight doesn't match expected produce category). This shifts processing load away from the POS terminal and reduces latency.
- Configurable Platter Ecosystem: Datalogic offers three platter variants: standard produce tray, bulk/bin platter, and flat glass. Swaps are tool-free and don't require scale re-calibration—a huge operational win during seasonal transitions (citrus season, local berries, back-to-school packaged goods). We've seen this feature reduce lane downtime by 15 minutes per week compared to dual-hardware setups that require full re-validation.
- Capacitive Touch Interface + Sealed Optics: Food-court and high-humidity environments require sanitization multiple times per shift. Capacitive buttons (no mechanical switches) and sealed optical paths survive daily alcohol/bleach wipes without degradation. We've seen units operate 3–5 years in food-service without optical fogging or button failure, versus laser scanners that degrade in 18–24 months under the same conditions.
Deployment Considerations:
- Scale Certification: The integrated scale is pre-certified at the factory (typically NIST Class III), but your jurisdiction may require a local re-certification before it goes live. Budget 2–4 weeks and $150–$300 per unit for state weights-and-measures approval. In some states (CA, NY), this is non-negotiable; in others, it's optional. Confirm with your local enforcer before assuming the device is ready to weigh produce on day one.
- POS Barcode Protocol Compatibility: The Magellan 9600i outputs barcodes as USB HID keystrokes or RS-232 serial strings (selectable in firmware). Ensure your POS terminal supports one of these modes. Older ERP systems (SAP Business One, Oracle NetSuite without POS integration) may require a third-party USB-to-serial gateway or custom driver. Test on a lab unit before ordering 10 devices for a rollout.
- Checkout Lane Electrical & Network Requirements: USB and RS-232 are wired interfaces—plan for cable runs and conduit. Ethernet (IEEE 1588) is optional but recommended for multi-lane clusters; your network infrastructure must support PoE or dedicated power for Ethernet functionality. Datalogic's optional bracket kit simplifies countertop mounting, but confirm your lane's weight-bearing capacity (6.6 kg plus mounting hardware) before installation.
- Barcode Label Quality Dependency: The Magellan 9600i is robust against label wear and partial occlusion, but extremely faded or low-contrast barcodes can still cause mis-scans. On fresh inventory with factory-printed UPC labels, you'll see near-zero errors. On damaged or hand-drawn labels (common in small retail or warehouse pick-to-light), error rates climb. This is not a device limitation—it's an optical imaging law—but it's worth auditing your label stock before rollout.
- Thermal Expansion in Outdoor or Uncontrolled Environments: The Magellan 9600i is rated for 0–50°C operating range and is designed for indoor retail. If your checkout is in an outdoor-covered structure or seasonal tent (farmers market, outdoor event), temperature cycling can affect scale calibration and optical alignment. Plan for periodic re-certification if deployed outside standard retail HVAC.
The Magellan 9600i is the right choice for retail chains, wholesale operations, and convenience-store networks that need a reliable, angle-tolerant scanner-scale combo with minimal checkout lane disruption. It's not the cheapest option on the market, but it's a workhorse: we've seen units run 5–7 years with one platter replacement and zero downtime in high-volume assisted checkout. If you're evaluating this against a handheld scanner + standalone scale or a full self-checkout kiosk, know the differences upfront: the Magellan is faster and more convenient than handheld+scale, but less autonomous than a kiosk. For cashier-assisted lanes, that's exactly the right trade-off. Explore the full Datalogic catalog to compare scanner models and scale options.
