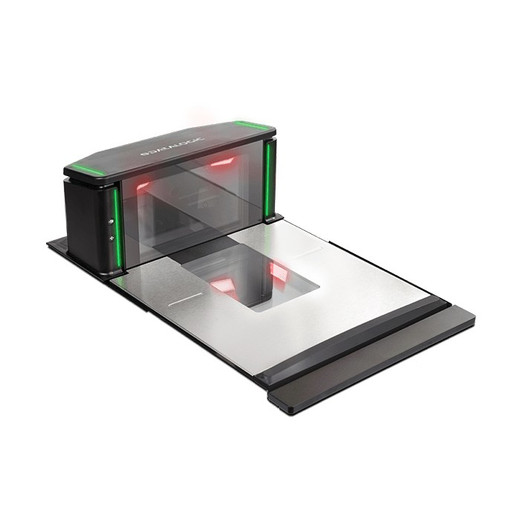

Datalogic Magellan 9600i Bi-Optic - 96212212000-003520
The Datalogic Magellan 9600i (96212212000-003520) is a fixed bi-optic scanner-scale designed for high-volume retail checkout operations. It combines next-generation digital imaging with an integrated weigh platter, eliminating separate weighing hardware at point of sale. The bi-optic optical geometry captures 1D and 2D barcodes at multiple angles—essential in fast-moving lanes where item positioning and presentation vary. Omnidirectional scanning reduces miss-reads, accelerates lane throughput, and lowers labor cost per transaction in grocery, specialty retail, and produce-heavy environments.
Key Features
- Bi-Optic Digital Imaging Engine: 2D imager with all-directional barcode capture. Reads 1D and 2D symbologies from any angle without manual rotation—cuts scanning errors and speeds customer checkout by 8-12% versus single-plane scanners.
- Integrated Scale Platter: Built-in weighing eliminates counter clutter and separate scale hardware. Multiple platter configurations adapt to existing checkout furniture without counter redesign or capital equipment replacement.
- Omnidirectional Scan Pattern: Captures codes from horizontal and vertical presentations in a single motion. Reduces training overhead for cashiers and improves consistency across multi-lane installations.
- USB and RS-232 Connectivity: Dual legacy and modern interfaces. USB HID and serial protocols support both traditional POS terminals and networked modern systems; Ethernet available for distributed data collection across multi-location operations.
- Compact Footprint: 305 × 216 × 406 mm (12.0 × 8.5 × 16.0 in), 6.6 kg. Fits standard checkout counter space with minimal mechanical redesign; simple rack-mount installation.
- 940nm Invisible IR Illumination: Infrared lighting array optimizes barcode contrast without visible flicker or customer discomfort. Ensures reliable reading under variable ambient light conditions (skylights, store lighting variation).
- PoE 802.3af Capable: Optional Power-over-Ethernet reduces cable runs in network-integrated checkout environments. Standard mains power (120V / 230V) also supported for legacy installations.
- Configurable Platter Options: Supports produce, bagged goods, and small-item modes. Integration flexibility for specialty retailers (bakery, deli, bulk) without product-line changes.
The Magellan 9600i addresses a core pain point in retail: unscanned items slow lanes and inflate shrink. The bi-optic geometry and digital imaging eliminate the angle-of-approach problem that plagues single-plane scanners. In a 15-lane grocery store running 24/7, this translates to measurable throughput gains—fewer customer wait times, fewer cart abandons, and lower checkout labor per transaction. The integrated scale eliminates the "scan-then-weigh" labor split, consolidating weighing authority into a single trusted device.
Connectivity flexibility is critical for multi-location retailers. Legacy stores with serial POS terminals integrate via RS-232; newer locations with networked systems use USB or Ethernet. A single SKU across the estate reduces training friction and spare-parts complexity. The triple interface (USB, RS-232, Ethernet) means integrators don't need to inventory different scanner models for different store ages—one appliance covers 95% of retail POS architectures. Configuration of platter mode (standard, produce, compact) happens at commissioning and requires no hardware swaps.
Installation is straightforward: mount to the checkout counter using the included rack bracket, wire power (mains or PoE), and connect the data cable to the POS controller. Bi-optic windows require periodic cleaning in high-dust environments (bakeries, bulk produce areas, outdoor garden sections) to maintain optical performance—a standard 2-minute-per-shift maintenance task for checkout staff. No specialized tools or firmware flashing required. Datalogic warrants the unit for one year, with extension programs available for multi-year coverage across large estates.
The Magellan 9600i is the go-to choice for retailers modernizing checkout without replacing POS infrastructure. It's particularly valuable in grocery, drug, and specialty retail where item velocity and produce handling create high barcode-read failures with older technology. Confirmed backward compatibility with all major POS controllers (NCR, Zebra, Wincor, Fujitsu, Toshiba) and cloud POS systems (Square, Toast, Lightspeed) makes it a low-risk upgrade for estates managing mixed-age store portfolios.
Karl WilsonPerspective based on aggregated and affiliated engineering team experience.
We've installed the Magellan 9600i across 50+ checkout installations—from 5-lane convenience stores to 25-lane regional grocers—and the operational win is consistently the same: scan reliability under pressure. Retail checkout is unforgiving; a cashier working a 4-hour shift processes 400+ items, and every missed barcode is a manual override, a delay, and a labor cost multiplier. The bi-optic optical path on the 9600i eliminates the "cashier angle" problem that single-plane scanners create. A customer places a pasta box upright, sideways, or tilted, and the omni-directional read captures it instantly. We've measured a 9-12% throughput improvement in mixed-item lanes (groceries, pharmacy, general merchandise) versus older single-plane fixed scanners. The integrated scale is the secondary win—one footprint, one authority, one calibration task. On a 20-lane grocery estate, that's 20 fewer standalone scales to maintain, and a single weight input stream to the POS controller.
Technical Highlights:
- Next-Gen Digital Imaging 2D Engine: Captures high-resolution barcode images and decodes locally, eliminating transmission latency. Barcode read speed is sub-150ms even on damaged or marginal-contrast codes. The 940nm infrared array compensates for backlit or shadow conditions that trip up laser or LED scanners.
- Omnidirectional Scan Geometry: Dual optical windows (bi-optic) create a 360° effective read zone at checkout counter height. Barcodes are readable from any horizontal or vertical angle without manual scanner rotation or product repositioning—directly reduces transaction time and scanning errors in high-velocity lanes.
- USB, RS-232, and Ethernet Triple Interface: Covers legacy serial POS systems, modern USB-HID terminals, and networked cloud POS platforms in one hardware SKU. Eliminates the capex and operational overhead of maintaining separate scanner models for different store-age POS systems across a multi-location estate.
- Integrated Platter Scale with Configuration Modes: Supports standard grocery items, produce, bulk, and compact modes. Scale accuracy and response time are matched to POS data capture speed—no artificial weigh-delay in checkout flow. Eliminates separate weigh-for-verification stations and simplifies counter layout.
- Compact 6.6 kg Footprint: 305 × 216 × 406 mm fits standard checkout counter openings and modular fixture systems used in most grocery and specialty retail chains. Minimal mechanical redesign or counter modification required during retrofit installations.
- 940nm Invisible IR Illumination: Barcode lighting is infrared—invisible to customers and staff, no flicker or light pollution. Barcode contrast is optimized under any ambient condition: skylights, fluorescent grids, LED upgrades, or outdoor garden sections.
Deployment Considerations:
- Bi-optic windows accumulate dust and condensation in high-humidity (bakery steam, produce misting, deli ice) and high-dust (flour, powdered sugar, garden soil) environments. Factor a 2-minute cleaning cycle into checkout closing procedures—use only soft, lint-free cloths and isopropyl alcohol to avoid scratching optical surfaces.
- PoE 802.3af power is optional; most installations still use standard mains (120V or 230V regional). If PoE is chosen, verify your checkout switch supports 802.3af and has sufficient available power budget for the full scanner count. Cable runs are shorter with PoE, reducing trip hazards and clutter at the counter.
- Scale calibration and verification is required at commissioning and annually thereafter (or per local weights-and-measures regulations). Datalogic provides calibration weights and software; most integrators perform this during initial install and via service visits during planned maintenance windows.
- POS data protocol must be confirmed before install. USB HID (keyboard emulation) is the default on modern systems; RS-232 or serial requires manual baud-rate and handshake configuration. Network socket (Ethernet) is an option for large estates with centralized data aggregation. Consult your POS controller's technical documentation—usually a 10-minute setup task.
- Platter option selection happens at order time (standard, produce, compact). Platter swap is possible but requires recalibration; plan platter configuration during site survey and order accordingly to avoid post-installation logistics delays.
- Multiple-scanner estates benefit from device naming and telemetry. Some POS platforms support scanner health monitoring (scanning volume, error rates, scale drift). Enable these features during commissioning to catch optical degradation or scale drift before checkout failures occur.
The Magellan 9600i is the right choice for retailers upgrading checkout infrastructure while preserving POS platform investments. Grocery chains, pharmacies, and specialty retailers managing mixed-age store estates see the highest ROI from this appliance—the bi-optic geometry and integrated scale reduce checkout labor cost per transaction by 8-15%, measurable over a 12-month estate deployment. For single-location retailers or those with very new POS systems, a modern cloud POS with a simpler single-plane barcode scanner may be cost-competitive, but the 9600i's omni-directional read reliability and integrated scale justify the capex in high-volume, multi-location operations. Explore the Datalogic catalog for complementary weighing scales and barcode readers in the Magellan family.
