Panduit DAP4BC-X0 4" Modular Data Access Port

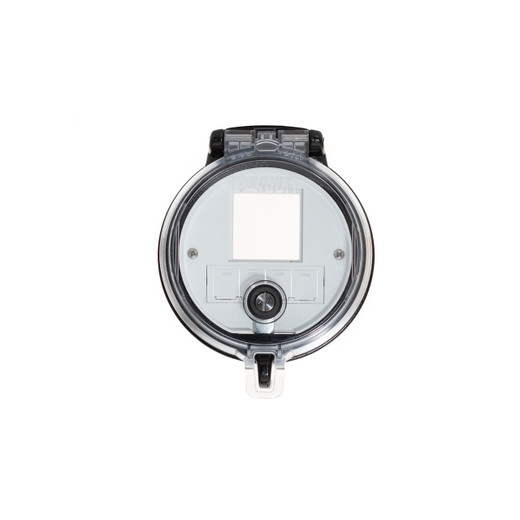

Panduit DAP4BC-X0 4-Inch Data Access Port

The Panduit DAP4BC-X0 delivers a compact, UL-listed data access solution for structured cabling deployments where space is constrained but code compliance and modularity are non-negotiable. This 4-inch socket assembly ships with an international device bezel insert, letting integrators drop Panduit Mini-Com modules, power outlets, or A/V connectors into a single flush-mount or surface enclosure. Designed for datacenter raised floors, conference room tables, and commercial office build-outs, the DAP4BC-X0 eliminates the need for oversized floor boxes when your cable count and device density fit a smaller footprint. UL50, UL50E, UL508A, and dual CSA certifications confirm it meets North American environmental and industrial-control enclosure standards, so you can install it in HVAC-exposed spaces, light industrial environments, or any project where the AHJ expects listed hardware.

Key Features

• 4-inch diameter socket with international device bezel insert for Mini-Com and standard receptacle modules
• UL50 / UL50E rated for indoor/outdoor enclosures; UL508A listed for industrial control panels
• CSA C22.2 No. 14-13 and No. 94.1/94.2 certified for Canadian installations
• Single-gang modular design reduces floor-box real estate in raised-floor and furniture-mounted applications
• Black socket finish maintains a low-profile appearance in conference rooms and executive offices

Modular Device Integration. The international bezel accepts Panduit Mini-Com jacks (copper and fiber), USB charging modules, HDMI inserts, and AC duplex receptacles, giving you one platform for data, power, and A/V. The 4-inch diameter is ideal for furniture grommets, shallow poke-through sleeves, and raised-floor boxes where a standard 4" square or round cut-out already exists. Because the bezel is removable, you can pre-load modules off-site, snap the bezel into the socket on-site, and cut trim-out time on multi-floor deployments. The socket body is engineered to sit flush or surface-mount depending on your enclosure, and the bezel's captive screws prevent loose hardware from falling into the plenum during moves, adds, and changes.

UL50 / UL50E Environmental Rating. UL50 and UL50E listings confirm the assembly provides a degree of protection against incidental contact with the enclosed equipment, falling dirt, and dripping or splashing water. This makes the DAP4BC-X0 suitable for IDF closets with overhead sprinkler lines, light-industrial spaces where washdown occurs in adjacent zones, and outdoor covered walkways where wind-driven rain is a concern. The UL508A industrial control panel listing further qualifies it for machine-mounted operator stations and PLC enclosures where data access is required at the point of use. CSA C22.2 No. 14-13 certification covers industrial control equipment, and the dual No. 94.1/94.2 rating addresses enclosures for electrical equipment, ensuring cross-border projects clear both U.S. and Canadian code requirements without substitution or re-inspection.

Compact Footprint, Full Functionality. At 4 inches, this socket is 30 percent smaller than traditional 6-inch floor boxes, yet it still accommodates up to four Mini-Com ports or two duplex power receptacles. Integrators deploying huddle rooms, hotel guest-room desks, or executive boardroom tables benefit from the reduced cut-out, which preserves structural integrity in laminate and solid-surface tops and minimizes the visible interruption in high-end finishes. The international bezel design means you can use the same socket globally—swap in EU Schuko, UK BS1363, or NEMA 5-15R power modules as required by the local electrical code, and keep your data jacks consistent across all regions. The result is a single SKU for multi-site rollouts, lower inventory carrying cost, and faster procurement.

Panduit's DAP4BC-X0 is the right choice when your project demands listed hardware in a compact form factor. The modular bezel future-proofs your infrastructure for technology refreshes—when 1G copper becomes 10G fiber or USB-A becomes USB-C, you replace the insert, not the entire floor box. UL and CSA certifications satisfy inspectors, the 4-inch diameter fits existing furniture and floor penetrations, and the socket's industrial-grade construction ensures it survives years of plug/unplug cycles in high-traffic environments. Whether you're wiring a new-construction office tower, retrofitting a university library, or standardizing on a single access-port platform across a healthcare campus, the DAP4BC-X0 delivers code-compliant connectivity without the footprint penalty of legacy floor boxes.
