Panduit CD-940-1250 Crimp Die for CT-940CH — 1250 Kcmil Copper

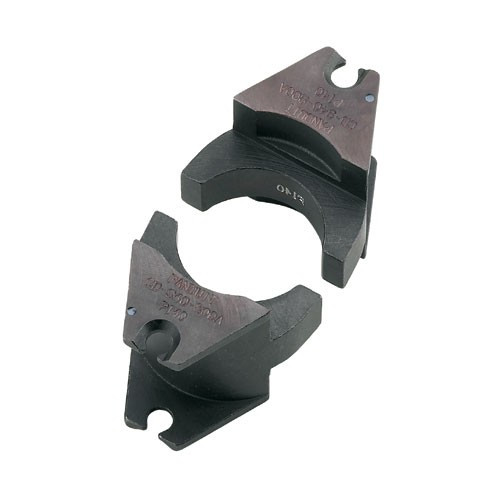

The Panduit CD-940-1250 is a Pan-Lug™ series crimp die engineered specifically for the CT-940CH hydraulic crimping tool, designed to terminate 1250 kcmil copper compression lugs and splices. If you're working large-conductor power distribution runs — switchgear, bus duct connections, or heavy feeder terminations — this die delivers the precise die geometry required for code-compliant copper connections at the 1250 kcmil range. Available individually (package quantity: 1), it fits directly into the Panduit Pan-Lug tooling line without adapters.
Key Features
- Color Coded to Connector: The die's color coding matches it to the correct connector series — eliminating the wrong-die mistake that causes under-crimped or over-crimped terminations on high-current conductors. On a job with multiple die sets in the tool bag, this visual check matters.
- Premium Crimp Geometry: Designed for Panduit copper code compression lugs and splices at 1250 kcmil. The die profile produces a consistent, low-resistance termination — critical at this conductor size where a marginal crimp translates directly into heat buildup under load.
- Embossed Die Number: The CD-940-1250 (often searched as CD 940 1250) has the die number physically embossed on the die body. Inspectors and QA personnel can verify the correct die was used without referencing paperwork — useful during third-party commissioning sign-offs.
- Black Oxide Finish: The black oxide coating provides a corrosion-resistant surface that holds up in industrial environments — substations, utility vaults, mechanical rooms — where tool components are exposed to moisture and contaminants over time.
- CT-940CH Compatibility: This die is purpose-built for the CT-940CH crimping tool. It is not a universal die — verify you have the CT-940CH before ordering. Using mismatched dies in hydraulic crimping tools produces inconsistent crimps that fail pull-out testing.
- 1250 Kcmil Copper Specific: Rated explicitly for 1250 kcmil copper — not aluminum, not a range of sizes. For installations requiring multi-conductor termination across different sizes, you'll need a corresponding die for each conductor gauge in the same Pan-Lug wire termination accessories family.
Integration & Compatibility
The CD-940-1250 is compatible with Panduit copper code compression lugs and splices at 1250 kcmil. It is designed for use exclusively with the CT-940CH hydraulic crimping tool. Consult Panduit's Pan-Lug crimping tools and accessories selection guide to confirm the correct die-to-connector pairing before procurement — die and connector must be matched for a compliant termination. This die is sold as a single unit (package quantity: 1) and is not interchangeable with dies from other Panduit tool platforms without verification.
Frequently Asked Questions
Q: What crimping tool does the CD-940-1250 work with?
A: The CD-940-1250 is designed specifically for use with the Panduit CT-940CH hydraulic crimping tool. It is not a universal die and should not be used with other tool platforms without manufacturer verification.
Q: What conductor size and material is the CD-940-1250 rated for?
A: The CD-940-1250 is rated for 1250 kcmil copper compression lugs and splices. It is not rated for aluminum conductors.
Q: How do I confirm I'm using the correct die for my connector?
A: The die features color coding matched to the correct Panduit connector series and an embossed die number on the body. Cross-reference the die number against Panduit's Pan-Lug connector-to-die compatibility chart before crimping.
Q: Is the CD-940-1250 sold as a set or individually?
A: The CD-940-1250 is sold individually — package quantity is 1 die.
Q: What finish does the CD-940-1250 have, and why does it matter?
A: The die has a black oxide finish, which provides corrosion resistance for use in industrial environments such as substations, mechanical rooms, and utility vaults where moisture and contaminants are present.
The CD-940-1250 is a single-purpose tool component — it does one job, at one conductor size, in one tool platform, and that specificity is exactly the point. At 1250 kcmil copper, you are terminating conductors that carry thousands of amps in critical power infrastructure. A wrong die or a mismatched crimp at this scale is not a rework situation — it is a failure mode. Panduit built the CD-940-1250 to eliminate ambiguity at the point of termination.
Technical Highlights:
- Color Coding: Matches die to the correct connector series visually — on a busy job site with multiple die sets in play, this is the difference between a verified termination and a guessed one.
- Embossed Die Number: Die number is physically marked on the body, not on a label that can wear off. Inspectors can confirm die identity during QA walk-throughs without pulling documentation.
- Black Oxide Finish: Corrosion resistance in utility and industrial environments — the die body holds up in substations and mechanical rooms where tool components see moisture and temperature cycling over years of service.
Deployment Considerations:
- Confirm CT-940CH tool compatibility before procurement — this die is not interchangeable with other Panduit hydraulic tool platforms. Die-to-tool mismatch produces inconsistent crimps that will not pass pull-out testing.
- This die is rated for copper only at 1250 kcmil. If your project involves aluminum conductors or multiple conductor sizes, you need separate dies for each — do not attempt to use this die outside its rated application.
The CD-940-1250 is the right specification for electrical contractors and industrial electricians terminating 1250 kcmil copper feeders in switchgear, bus duct, or utility substation work where die traceability and consistent crimp geometry are part of the commissioning record.
