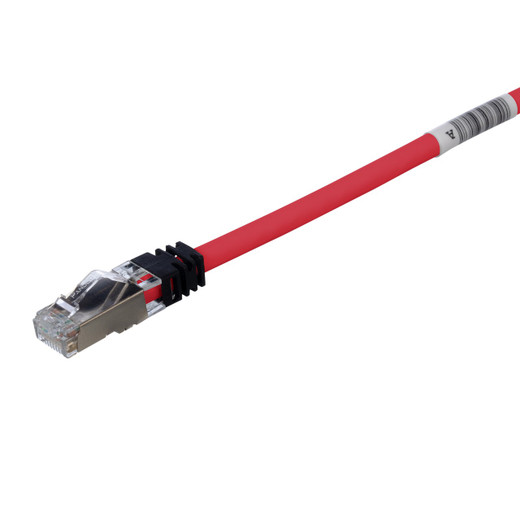

Panduit STP6X2MRD Patch Cord

Overview

The Panduit STP6X2MRD is a 2-meter, red, Category 6A shielded patch cord designed for high-speed data transmission and robust connectivity in demanding environments. Its construction supports 10GBASE-T Ethernet, data center I/O consolidation, server virtualization, backbone aggregation, and parallel processing, ensuring reliable performance where network speed and integrity are critical. The tangle-free latch and slender strain relief boot facilitate easy handling and access in high-density racks.

Compatibility

This patch cord is engineered to exceed ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, making it compatible with all networking equipment supporting these specifications. It is suitable for use with T568A and T568B wiring schemes. The STP6X2MRD specifically supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications, meaning it can handle the power requirements for PoE++ devices without degradation.

Installation Notes

Constructed with 26 AWG stranded, twisted pair, shielded cable, this CM/LSZH rated cord is designed for installations requiring flame retardancy and low smoke emission. The pre-installed RapidID barcodes enable simplified port mapping and network management when used with compatible RapidID software. Its slender profile and snag-free latch are optimized for high-density environments, reducing installation time and potential cable damage during moves, adds, and changes.
