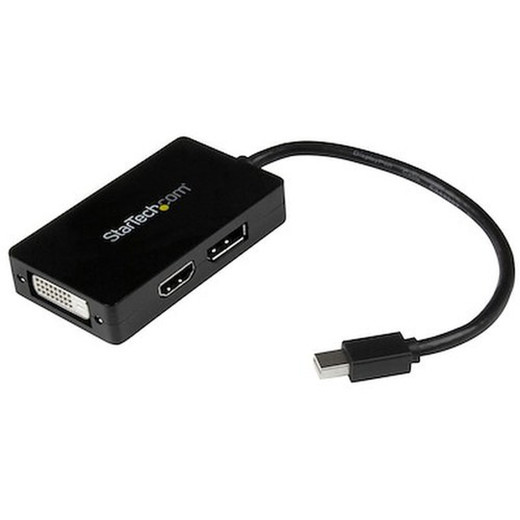

StarTech MDP2DPDVHD Mini DisplayPort to DisplayPort, DVI, and HDMI Adapter

Overview

The StarTech MDP2DPDVHD is a passive multi-output adapter that converts a single Mini DisplayPort source into one of three display interfaces — DisplayPort, DVI-D, or HDMI — depending on which output you connect to. This is the adapter to reach for when you're deploying a laptop, workstation, or video card with a Mini DisplayPort output into a control room, command center, or AV presentation environment where the display side may not be standardized. Because it's passive, there's no driver to install, no power brick to locate, and no configuration to manage — plug it in and the signal routes through. The MDP2DPDVHD supports a single active display at a time, so plan accordingly if you're building a multi-display wall: one adapter, one screen.

Key Features

• Three Output Interfaces, One Adapter: The MDP2DPDVHD ends the hunt for three separate cables. Connect to DisplayPort, DVI-D, or HDMI depending on what your monitor, projector, or video wall input accepts — critical in mixed-display environments where monitor standardization isn't guaranteed.
• DisplayPort at 2560x1600: When driving a DisplayPort monitor, the adapter passes through up to 2560x1600 resolution — high enough for 30-inch class displays used in engineering workstations, CAD review stations, or high-density video surveillance monitoring setups where pixel density matters for detail work.
• HDMI at 1920x1200 with 7.1 Audio: HDMI output tops out at 1920x1200 (slightly taller than 1080p, accommodating 16:10 panels) and carries 7.1-channel audio in the same cable — useful in briefing room or command center installations where you want display and audio routed through a single connection to an AV receiver or sound bar.
• DisplayPort Audio at 5.1 Channel: For DisplayPort-connected monitors with integrated speakers or downstream AV equipment, the adapter passes 5.1 surround audio — relevant in control room setups where the display doubles as an audio endpoint.
• Passive Design, Zero Configuration: No active electronics, no external power, no drivers. Passive adapters are inherently more reliable in 24/7 environments because there's nothing to fail beyond the connector itself. Plug-and-play compatibility extends to virtually any Mini DisplayPort source including Thunderbolt 1 and Thunderbolt 2 ports.
• Compact Form Factor: At 10.0 in long, 1.7 in wide, and 0.6 in tall — weighing just 1.7 oz — this adapter tucks behind a monitor stand or routes cleanly through cable management without adding bulk. It won't compete with rack space or desk real estate.
• 3-Year Manufacturer Warranty: StarTech covers the MDP2DPDVHD with a 3-year warranty, which matters in commercial installations where replacing a failed adapter mid-deployment is a service call, not just an inconvenience.
• Defined Operating Temperature Range: Rated 0°C to 45°C operating, with storage to -10°C/70°C — appropriate for standard indoor commercial and office environments. Not rated for industrial enclosures or outdoor utility rooms that exceed 45°C ambient.

Integration and Compatibility

The MDP2DPDVHD works with any device exposing a Mini DisplayPort output, including Apple MacBooks (pre-USB-C), Microsoft Surface devices, and PC workstations with discrete GPUs that provide Mini DisplayPort alongside full-size DisplayPort. Thunderbolt 1 and Thunderbolt 2 ports are electrically compatible with Mini DisplayPort and will work with this adapter — Thunderbolt 3 and 4 (USB-C) require a different adapter. On the output side, the adapter connects to standard video cables and adapters — pair the DisplayPort output with a standard DP cable, the DVI-D output with a single-link or dual-link DVI cable, and the HDMI output with any standard HDMI cable up to the display. Keep in mind that maximum resolution on DVI depends on whether your DVI cable and monitor support dual-link; the adapter provides DVI-D signal, but single-link DVI cables cap at 1920x1200 regardless. For control room deployments driving multiple displays from a single workstation, pair each Mini DisplayPort output on a multi-output GPU with its own MDP2DPDVHD — the adapter supports one display per unit. Integrators building video wall controllers or multi-monitor operator stations should confirm the source GPU's output count before specifying quantities. See the full StarTech adapter and connectivity catalog for complementary products including full-size DisplayPort adapters, HDMI extenders, and KVM switches. For guidance on selecting the right display adapter for your AV or control room project, the AV connectivity buying guide covers interface selection and resolution planning in detail. Organizations standardizing on DisplayPort adapters for workstation deployments will find this adapter compatible with the broader StarTech ecosystem.

Frequently Asked Questions

Q: Does the MDP2DPDVHD work with Thunderbolt ports?

A: Yes — Thunderbolt 1 and Thunderbolt 2 ports use the same Mini DisplayPort connector and are electrically compatible. Thunderbolt 3 and Thunderbolt 4 use USB-C and require a different adapter entirely.

Q: Can the MDP2DPDVHD drive two displays at the same time?

A: No. The MDP2DPDVHD supports one display at a time. If you need multiple simultaneous outputs, you'll need one adapter per display output on the source GPU, or a different multi-display hub product.

Q: What is the maximum resolution on the HDMI output?

A: The HDMI output supports up to 1920x1200. This covers 1080p (1920x1080) and 16:10 WUXGA displays. For higher resolutions, use the DisplayPort output, which supports up to 2560x1600.

Q: Does this adapter require drivers or external power?

A: No. The MDP2DPDVHD is a passive adapter — no drivers to install, no external power supply needed. Signal passes through from the source device directly.

Q: What is the warranty on the MDP2DPDVHD?

A: StarTech covers the MDP2DPDVHD with a 3-year manufacturer warranty.

Q: Does the DVI output carry audio?

A: No. DVI-D is a video-only interface and does not carry audio. For audio over the same cable, use the HDMI output (7.1 channel) or the DisplayPort output (5.1 channel).

Jerry Tildsen

The spec that comes up most often when integrators ask me about the MDP2DPDVHD is the resolution ceiling split between outputs — 2560x1600 on DisplayPort versus 1920x1200 on HDMI and DVI. That gap matters when you're sourcing workstation monitors for a dispatch or operations center: if you're going with 27-inch or 30-inch high-density panels that run at 2560x1600, you need to route through the DisplayPort output specifically, or you'll be capped below native resolution on every display in the room.

Technical Highlights:

• Passive Architecture: No active chipset means no thermal output, no firmware to update, and no compatibility drift after OS upgrades — in 24/7 control room environments, that reliability matters more than any feature set.
• HDMI 7.1 Audio Pass-Through: Carrying 7.1-channel audio over HDMI consolidates display and sound into a single cable run — useful in briefing rooms or NOC setups where an AV receiver handles audio and a separate audio cable would create routing complexity.
• 10-inch Cable Length: The 10-inch form factor keeps the adapter close to the source port and reduces the lever-arm stress on the Mini DisplayPort connector — relevant when the adapter hangs off a laptop port that sees frequent reconnection.

Deployment Considerations:

• Plan display selection before specifying this adapter — if your monitors are HDMI-only and you need 2560x1600, the MDP2DPDVHD cannot deliver it; the HDMI output hard-caps at 1920x1200 regardless of source capability.
• The 0°C to 45°C operating range rules this out for any installation in an unconditioned equipment room or outdoor enclosure — standard office and control room environments only.

The MDP2DPDVHD is a straightforward fit for operator workstations in security operations centers or network operations centers where the source machine has Mini DisplayPort and the display inventory is mixed — it eliminates the need to stock three different adapter SKUs for the same port type.
