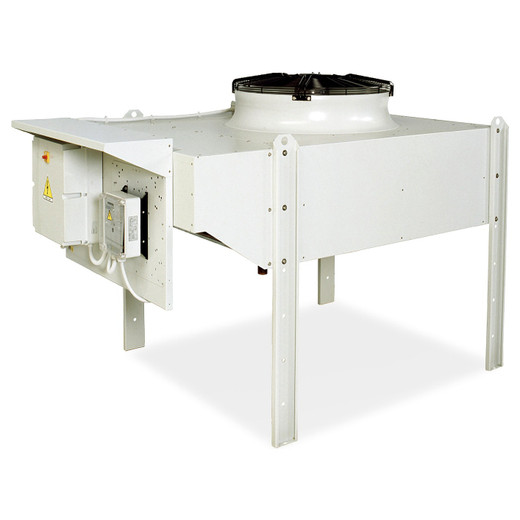

APC by Schneider Electric ACCD75214 Condenser 1 FAN, Single Circuit, 2.4MBH/1F TD

Overview

The APC by Schneider Electric ACCD75214 is a single fan condenser unit designed for targeted cooling within data center enclosures. It provides 2.4 MBH of cooling capacity, addressing localized heat buildup from sensitive IT equipment. This unit is suitable for deployments requiring precise thermal management where a full room cooling system is not feasible or necessary. The ACCD75214 model operates on a standard 230V AC, 60Hz single-phase power supply.

Compatibility

This condenser unit is engineered for integration with APC by Schneider Electric's enclosure heat exchanger systems. It is designed to work with single-circuit configurations and is compatible with input voltages ranging from 208V to 240V AC. Specific compatibility should be verified against the target enclosure's thermal management specifications and available power infrastructure.

Installation Notes

The ACCD75214 requires a 230V AC, 60Hz single-phase power connection. It delivers 5050 CFM of airflow to dissipate heat effectively. The unit's dimensions are 37.52" H x 42.72" W x 34.02" D, requiring adequate space for mounting and airflow. Ensure proper ventilation pathways are maintained to achieve rated cooling performance.
