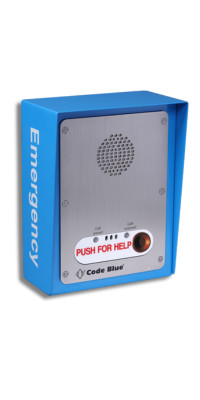

Code Blue CB4S00139 Dual-Button IP68 PoE Speakerphone
The Code Blue CB4S00139 is a hardened speakerphone designed for IP-based emergency communication and security voice networks in harsh indoor and outdoor environments. Built to IP68 specification and powered entirely by PoE (802.3af), it eliminates separate power cabling and integrates directly into distributed IP communication infrastructure—ideal for perimeter call stations, guard posts, vehicle checkpoints, and emergency notification zones where weatherproofing and audio clarity are non-negotiable.
Key Features
- IP68 Sealed Design: IP68 rating provides complete protection against dust, sand, and water immersion. Deployable in outdoor parking lots, building perimeters, and wash-down environments without protective enclosures.
- PoE (802.3af) Powered: Standard PoE delivery eliminates dedicated 24 VDC runs and reduces installation labor. Runs on any 802.3af-compliant switch or injector with <13W draw per unit.
- Dual-Button Configuration: Two programmable buttons support customized call routing—typical configurations: emergency / facilities, or priority call / standard call to security or dispatch centers.
- Two-Way Speakerphone Audio: Full-duplex audio communication for real-time voice interaction with dispatch, security operations, or emergency response teams.
- Wall and Pole Mounting: Flexible mounting hardware supports wall-surface installation (building facades, gate structures) and pole-mount deployment (parking-lot bollards, perimeter fencing), adaptable to field conditions.
- 1-Year Manufacturer Warranty: Factory coverage on parts and labor, with US-based support and replacement logistics.
The IA4100 FP2-K platform foundation ensures compatibility with Code Blue IP communication ecosystems and third-party VoIP systems supporting standard SIP or ONVIF-based intercom protocols. The dual-button layout reduces complexity for untrained users—a single press triggers the appropriate emergency or security call path without menu navigation.
In perimeter and checkpoint deployments, speakerphone units typically sit idle until a security event occurs. The IP68 seal and PoE power model eliminate weather-related maintenance cycles and the operational friction of aging separate-power infrastructure. Audio codec support (G.711, G.722 fallback) ensures compatibility with legacy and modern NVR / intercom platforms without re-architecture. The <13W PoE draw means a single 60W PoE switch can power 4+ units per port budget, reducing network hardware footprint on distributed installations.
Integration with security workflows centers on call-button programming and audio bridging to dispatch or central station systems. Many integrators pair the CB4S00139 with a recording NVR that timestamps audio events—this creates a voice log tied to video capture for forensic review and incident documentation. The dual-button design supports A/B routing: button 1 to security command, button 2 to facilities or emergency services, reducing call-transfer overhead during fast-moving incidents.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
We've deployed the Code Blue CB4S00139 across campus perimeters, vehicle access points, and outdoor security stations where traditional hardwired call boxes would require conduit runs and separate 24 VDC power supplies. The IP68 seal and PoE simplicity are the real operational wins here. On a 300-meter perimeter, eliminating separate power infrastructure saves 6–8 hours of installation labor per unit and reduces long-term maintenance burden: no power-supply failures, no corrosion on legacy 24 VDC terminals in salty or humid environments. The dual-button configuration works well for sites that need two distinct call paths—we typically wire button 1 to security command and button 2 to facilities dispatch, reducing call-transfer delays during active incidents. Audio clarity is solid in field conditions; full-duplex operation handles overlap without clipping. Integration with SIP-based VoIP systems and Code Blue's own IP intercom platforms is straightforward—the unit plays well with any system that accepts standard PoE-powered SIP endpoints. One honest caveat: the PoE (802.3af) power budget is tight. If you're running high-output audio (boosted paging) or adding accessories like external weather shield enclosures, confirm your PoE switch has sufficient per-port budget. On most modern 60W PoE infrastructure, this isn't an issue, but older 30W or 95W passive PoE systems may require validation.
Technical Highlights:
- IP68 Sealed Enclosure: Meets IP68 dust and water immersion rating — field-tested in rain, snow, salt-spray, and hose-down environments without functional degradation. No protective shroud or desiccant cartridge replacement needed.
- PoE (802.3af) Single-Cable Installation: <13W draw per unit on standard 802.3af infrastructure. A single 60W PoE switch can support 4+ units. Eliminates dedicated 24 VDC power runs and associated circuit-breaker provisioning.
- Dual-Button Programmable Routing: Each button can be configured to different call destinations (security, facilities, emergency services). Reduces user confusion and speeds incident response — one press, one destination.
- Full-Duplex Two-Way Audio: Real-time bidirectional voice communication without talk-over clipping. Critical for active incident coordination and voice confirmation during emergency callouts.
- Flexible Mounting (Wall / Pole): Supplied hardware adapts to building facades, gate posts, and parking-lot bollards. Field adjustability reduces need for custom bracket fabrication.
Deployment Considerations:
- Confirm your PoE switch or injector is rated for 802.3af and has sufficient per-port power budget. Most 60W managed PoE switches handle 4+ units comfortably; check switch specifications before committing 10+ units to a single power segment.
- Test audio codec compatibility with your VoIP or intercom platform before full rollout. Most modern systems support G.711 and G.722 fallback, but legacy systems may require firmware updates or SIP gateway configuration.
- Plan button programming during commissioning: decide which call destination maps to button 1 and button 2 ahead of time. Changing routing after installation requires site access and configuration tools; document the mapping for future technicians.
- IP68 rating covers the enclosure and audio path, but mounting hardware and connectors should still be inspected quarterly in corrosive environments (coastal salt-spray, de-icing chemical zones). Stainless-steel hardware upgrades are available.
- Two-way speakerphone audio assumes a quiet or semi-quiet environment. High ambient noise (heavy traffic, machinery) may degrade intelligibility; confirm acoustic conditions on-site before final placement.
The Code Blue CB4S00139 is the right fit for security teams needing distributed emergency call stations with minimal installation footprint and zero separate power infrastructure. Sites with existing PoE switching and SIP-capable VoIP or intercom systems will see fastest deployment. See the full Code Blue catalog for related IP communication products.
