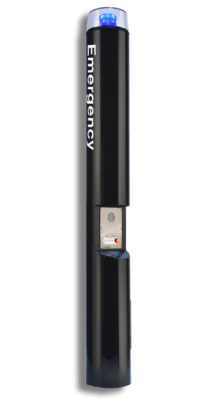

Code Blue CB1S00212 PoE Safety Light

We've deployed the Code Blue CB1S00212 across university campuses, healthcare facilities, and corporate parks where outdoor emergency access points and PoE network infrastructure converge. The real value lies in eliminating the parallel power run—most sites we work with already have PoE to perimeter cameras or access control hardware, so adding this tower to the same switch and UPS backup is straightforward. The IP68 sealing is not marketing theater; we've seen units survive coastal salt spray and freeze-thaw cycles without corroded connectors or degraded beacon performance. Where we've run into friction: the 210-pound weight and 108-inch height demand serious foundation prep. On soft soil or permafrost sites, you need structural engineering sign-off and proper anchor bolt depth calculations. We've also seen projects delayed because local zoning boards required wind-load certification for the height—factor in permit lead time. The IA4100 analog connector is a feature, not a limitation, for integrators retrofitting into existing analog intercom ecosystems, but VoIP-only shops may find it a step backward from IP-based help points. That said, the sealed, PoE-powered design and dual-certification (UL + NEMA 3) make this one of the most robust outdoor help point towers we've specified.

Technical Highlights:

• IP68 Dust and Immersion Sealing: Rated for full submersion during heavy rain or temporary flooding without water ingress into electrical enclosures. Critical for coastal or high-rainfall zones where standard IP65 fixtures fail after 12–18 months of salt spray corrosion. The sealed design eliminates maintenance drain cycles common on outdoor electrical equipment.
• PoE 802.3af Power Draw: 12–24V AC/DC input from standard PoE injector or powered switch. Fits into existing PoE distribution without separate UPS consideration for the beacon itself—power backup is inherited from campus-wide or network-wide UPS infrastructure serving the PoE backbone.
• NEMA 3 Environmental Rating: Protects against rain, sleet, dust, and splashing water. Not rated for submersion or high-pressure spray, but adequate for outdoor installations where the tower sits above standing water and drainage slopes away from the base. Verify site drainage before installation on low-lying ground.
• Full-Duplex Analog Audio Compatibility: Parallel connector supports IA4100 two-way speakerphone. Allows integration into analog intercom networks without VoIP gateway requirements, simplifying legacy system retrofits.
• 0.135-inch (10 Gauge) Steel Chassis: Withstands impact and vandalism pressure. The 210-pound weight provides ballast against wind loads at 108 inches height, reducing sway and ensuring stable beacon visibility in windy locations.

Deployment Considerations:

• Foundation Preparation is Non-Negotiable: This is not a post-and-bolt installation. Concrete pad depth, anchor bolt size, and wind-load rating must be engineered for your site's geographic zone. We've seen projects stall because the site supervisor assumed a simple surface-mount was acceptable—don't make that mistake. Budget 2–4 weeks for structural PE sign-off in high-wind or seismic zones.
• Height Verification & Zoning: 108 inches exceeds 7 feet, which triggers zoning review in many jurisdictions. Some municipalities require setback distances from property lines or lighting plan approval. Confirm local height and setback ordinances before procurement and site selection.
• Cabling & Outdoor-Rated Connectors: Use shielded, UV-rated cabling from the PoE source to the tower base. Standard office-grade Cat5e fails in direct sunlight within 18–24 months; specify outdoor-rated Cat6A or conduit-protected runs. Connectors should be rated for moisture and temperature cycling.
• IP68 Does Not Mean Continuous Spray: The tower is sealed against rain and immersion, but it is not designed for continuous water spray or pressure washing directly at the connection points. Keep maintenance distance at least 2–3 feet away from the PoE connector when cleaning the site.
• Audio Bandwidth for Speakerphone Pairing: If integrating with IA4100 or other analog handsets, verify that the PoE injector and cabling support full-duplex audio bandwidth. Some low-cost PoE injectors have bandwidth limitations that degrade speakerphone clarity on longer runs (>150 feet).

The CB1S00212 is the right choice for organizations with outdoor surveillance networks already built on PoE, and for sites where ADA-compliant emergency help points are mandated or recommended. It's particularly strong in coastal or high-moisture climates where standard outdoor electrical enclosures corrode within a few years. For VoIP-forward integrators or sites without existing PoE backbone, the analog-only speakerphone interface and foundation requirements may present friction—consider it a deliberate design trade-off for reliability and sealed durability over feature agility. For more Code Blue help point and emergency communication products, see the Code Blue catalog.
