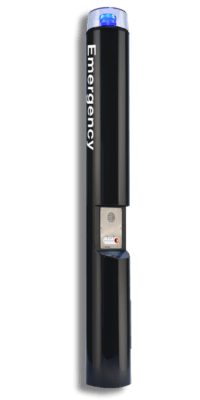

Code Blue CB1E00909 IP68 PoE Help Point Tower

Overview

The Code Blue CB1E00909 is a ruggedized outdoor help point tower built for high-visibility emergency communication and security deployments. Rated IP68 for full submersion tolerance and PoE-powered operation, it delivers sealed connectivity in wet, dusty, and demanding environments where standard security equipment fails. The 160 lb steel cabinet uses 0.135" (10 gauge) construction to resist impact and environmental corrosion, meeting NEMA 3S specifications for outdoor enclosures. UL 62368-1 certification and ADA-compliant design make it suitable for campus perimeters, parking facilities, industrial yards, and public safety applications where reliable outdoor communication infrastructure is non-negotiable.

Key Features

• IP68 Environmental Sealing: Fully sealed against dust and water ingress, including temporary submersion — critical for installations near drainage areas, flood zones, or high-pressure wash-down environments. This rating means the unit won't fail during seasonal weather events or maintenance cleaning.
• PoE (802.3af) Power Delivery: Draws power directly from a single Ethernet line, eliminating the need for separate AC runs to remote outdoor locations. Simplifies installation on perimeter routes where electrical infrastructure is distant or cost-prohibitive to extend.
• 160 lb Ruggedized Steel Enclosure: 0.135" (10 gauge) steel construction resists vandalism, impact damage, and UV degradation — standard for outdoor perimeter towers exposed to weather cycling and human contact. Heavier gauge than commodity outdoor boxes means lower replacement costs over a 5–10 year deployment window.
• NEMA 3S Outdoor Rating: Designed to withstand outdoor environmental stresses (rain, sleet, dust, ice) without compromising internal electrical safety. NEMA 3S is the standard specification for unmanned outdoor security enclosures and is widely understood by facilities teams.
• ADA-Compliant Design: Built to meet accessibility standards — important for public-facing emergency communication towers on campuses, municipal sites, and commercial properties where equal access to security and emergency systems is a legal requirement.
• Racing Green Finish: Aesthetic color option for environmental blending or site-specific requirements in perimeter landscaping. Reduces visual profile in green-space installations where steel gray would appear out of place.

Integration and Compatibility

The CB1E00909 integrates with PoE-powered IP security devices, access points, and networked communication equipment. Its sealed cable connectivity and 802.3af power delivery make it compatible with standard IP camera systems, emergency alert buttons, wireless access points, and networked intercoms requiring outdoor environmental protection. The tower's modular design supports field customization for specific deployment needs — contact pre-sales engineering for configuration guidance specific to your site requirements.

Environmental and Durability Specifications

Operating in outdoor conditions year-round, the CB1E00909 is built for environments where standard network equipment would corrode or fail. IP68 sealing protects all internal circuitry and connections from rain, salt spray, dust storms, and spray-wash maintenance. The 1-year manufacturer warranty covers defects in materials and workmanship; ongoing durability depends on proper site preparation and grounding (key installation considerations to discuss with your pre-sales team).

Installation and PoE Power Considerations

Installation requires a PoE-capable network switch or injector capable of delivering 802.3af power (minimum 13W for the device plus cabling losses). Run a single Cat6/6A shielded Ethernet line to the tower location — no auxiliary AC power required. The 30 lb component weight and tower mounting hardware make this a two-person outdoor installation. Grounding the steel enclosure to site earth is essential for lightning and surge protection in exposed outdoor locations; coordinate with your electrical contractor before final deployment.

What's in the Box

Package contents not fully detailed in available evidence. Contact pre-sales support for exact accessories and hardware included with your order.

Frequently Asked Questions

Q: Is the CB1E00909 suitable for wet outdoor environments?

A: Yes. The IP68 rating means it can withstand temporary full submersion and continuous spray exposure. It's designed for rain, snow, dust, and high-pressure wash-down scenarios.

Q: What power supply do I need for the CB1E00909?

A: The unit is PoE (802.3af) powered. You need a PoE-capable network switch or inline PoE injector; no separate AC power connection is required at the tower location.

Q: What is the warranty on the CB1E00909?

A: The CB1E00909 comes with a 1-year manufacturer warranty covering defects in materials and workmanship.

Q: Is the CB1E00909 ADA-compliant?

A: Yes. The tower is designed to ADA specifications, making it suitable for public-facing emergency communication and security applications where accessibility is required.

Q: Can the CB1E00909 be mounted on existing structures?

A: The tower is designed for outdoor ground or pole mounting. For specific mounting options or structural integration, consult pre-sales engineering to confirm compatibility with your site infrastructure.

Q: What is the shipping timeline for the CB1E00909?

A: Current availability shows 2–3 week lead time. Contact for exact ETA based on current production schedules.

Eden Phillips

The CB1E00909 is purpose-built for outdoor perimeter deployments where environmental sealing is non-negotiable. The IP68 rating combined with PoE power delivery eliminates two major installation headaches: running conduit for AC power in remote outdoor locations, and managing cable connections that corrode in wet conditions. This is the right choice if your site has frequent rain, seasonal flooding risk, or high-humidity salt-air environments.

Technical Highlights:

• IP68 Full Submersion Rating: Protects sealed cable connectors and internal devices from moisture intrusion — a real differentiator compared to IP66-only towers that will fail under sustained spray or temporary water pooling. Critical for sites near drainage paths or seasonal wet zones.
• 0.135" (10 Gauge) Steel Construction: This is thicker than standard outdoor enclosure gauge (typically 0.120"). Resists both vandalism impact and rust perforation over 5+ years of weather cycling. The 160 lb weight also deters theft and casual repositioning.
• PoE (802.3af) Architecture: Draws less than 13W including cabling losses, so a single Ethernet run from your network closet handles both data and power. Eliminates trenching costs and the need for outdoor GFCI outlets — a real savings on dispersed campus or industrial perimeter layouts.

Deployment Considerations:

• The 160 lb weight requires two installers and proper foundation anchoring on exposed sites — account for wind load engineering if your tower location is exposed to high-wind zones. Get site structural specs signed off before shipment.
• IP68 sealing is excellent, but that same sealed design means any internal failures (failed relay, corroded connector inside) require box replacement rather than field repair. Budget replacement lead time (2–3 weeks) into your maintenance planning.

This tower is the right pick for campus emergency communication, parking perimeter installations, and industrial yards where outdoor IP68 sealing and zero-AC-power installation are must-haves. If your environment doesn't require full IP68 sealing, a lower-rated outdoor cabinet will cost less and ship faster — but if you're near water, in a humid climate, or deploying in a salt-air zone, the CB1E00909's engineering pays for itself in reduced corrosion callbacks.
