Panduit CBH30L50-V6 Trefoil Cleat Mounting Bracket

Panduit CBH30L50-V6 Cable Cleat Mounting Bracket

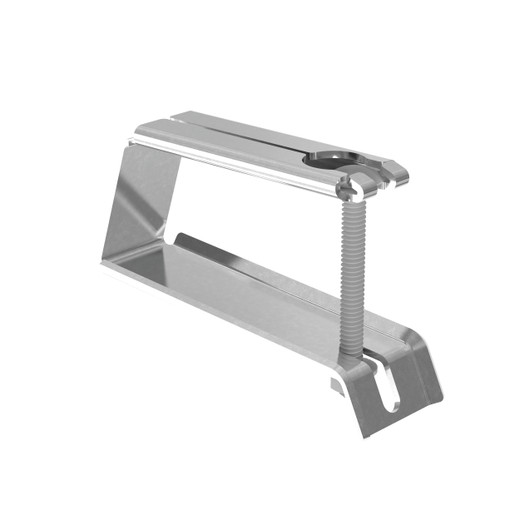

The Panduit CBH30L50-V6 is a stainless steel mounting bracket engineered for rapid, no-drill installation of trefoil cable cleats in high-fault-current environments. Designed to support Panduit's CCSSTR stainless steel and CCALTR aluminum trefoil cleat series, this bracket eliminates the need to drill rung holes while maintaining full compliance with short-circuit protection standards. Built from 316L-grade stainless steel with a natural finish, the CBH30L50-V6 delivers corrosion resistance and mechanical strength for outdoor substation, marine, and industrial power applications where cable retention under fault conditions is mission-critical.

Key Features

• 316L stainless steel construction for superior corrosion resistance in harsh and marine environments
• No-drill installation eliminates the need to perforate cable ladder rungs, preserving structural integrity
• Hinged bolt assembly enables tool-free positioning and faster cleat attachment
• Compatible with Panduit CCSSTR stainless steel and CCALTR aluminum trefoil cable cleats
• 30mm height x 50mm length footprint optimized for standard rung profiles
• Natural stainless finish resists oxidation and UV degradation in outdoor deployments
• Supports high short-circuit fault current retention per IEC 61914 cleat standards
• Supplied in packages of 5 brackets for project-scale installations

Traditional cable cleat mounting requires drilling through ladder rungs or cable tray, a time-intensive process that weakens the rung structure and introduces corrosion entry points in outdoor or corrosive atmospheres. The CBH30L50-V6 solves this by clamping directly onto the rung surface via a hinged bolt mechanism—installers position the bracket, thread the bolt, and tighten without power tools or hole preparation. The 316L stainless steel body resists chloride pitting and crevice corrosion in coastal substations, wastewater treatment plants, and chemical processing facilities where 304-grade stainless would fail. The natural mill finish provides a non-reflective surface that meets utility and industrial aesthetics while eliminating the flaking and chalking common to painted or powder-coated hardware after years of UV and salt spray exposure.

This bracket is purpose-built for three-phase trefoil cable formations where cleats secure bundled conductors in a triangular configuration to withstand electromagnetic repulsion forces during short-circuit events. It mates exclusively with Panduit's CCSSTR and CCALTR trefoil cleat families—typically deployed on 11kV through 33kV medium-voltage power feeders in substations, data center electrical rooms, and industrial switchgear lineups. The 30mm vertical dimension suits standard 50mm and 75mm wide cable ladder rungs, while the 50mm length provides stable load distribution across the rung face. Installers working on energized or live-proximate installations benefit from the hinged bolt's captured design, which prevents dropped fasteners and reduces foreign object debris (FOD) risk in energized switchgear. Each package contains five brackets, matching typical cleat spacing intervals of 1 to 2 meters along a cable run.

The CBH30L50-V6 is specified on projects requiring IEC 61914 or IEEE 1820-compliant cable cleat systems, particularly where drilling is prohibited by structural engineering review, where rung galvanizing or anodizing must remain intact, or where future cable route modifications demand non-destructive mounting. Panduit's engineering data confirms compatibility with rung thicknesses from 3mm to 10mm, covering the majority of North American and European ladder standards. For integrators balancing installation speed, long-term durability, and compliance documentation, this bracket delivers a verifiable mounting solution with full traceability to Panduit's ISO 9001-certified manufacturing and UL listing for the cleat assembly as a system.
