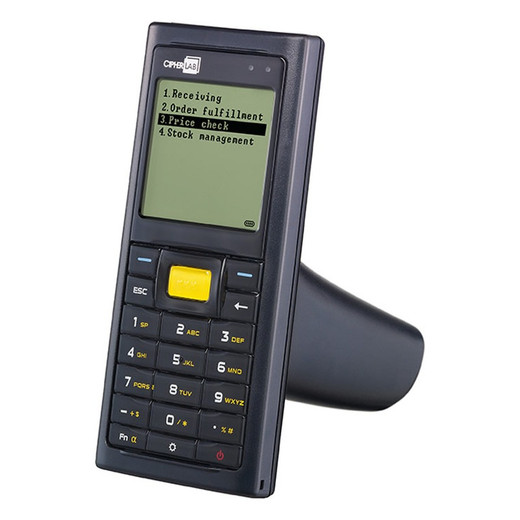

Cipherlab A97BM5CLN31UP 9700 Batch WEH Laser 53key 3600mAh Pisto

Cipherlab A97BM5CLN31UP Batch Mobile Computer

Overview

The Cipherlab A97BM5CLN31UP is a purpose-built handheld batch mobile computer designed for warehouse and logistics operations. This device combines 2D laser scanning, Windows-based operating system flexibility, and rugged field durability into a compact form factor optimized for inventory capture, order fulfillment, and asset tracking workflows. With integrated WiFi connectivity, 3.5-inch sunlight-readable color display, and comprehensive data capture capabilities, the A97BM5CLN31UP delivers the processing power and ergonomic design needed for high-volume scanning environments.

Key Features

• 2D Laser Scan Engine: Captures 1D and 2D barcodes including QR codes, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN formats for flexible barcode compatibility
• 53-Key Alphanumeric Keypad: LED-backlit keyboard supports data entry, search operations, and full text input without external peripherals
• IP65-Rated Rugged Design: Sealed against dust and water ingress for reliable operation in harsh warehouse, shipping dock, and outdoor receiving environments
• Drop-Certified Durability: SGS certified to withstand 1.8 m multiple drops onto concrete per MIL-STD-810G test standard, plus 500 tumbles from 1 m and 1000 tumbles from 0.5 m
• 3.5-Inch Sunlight-Readable Display: VGA/QVGA TFT color LCD with LED backlight and resistive touch panel maintains readability in bright outdoor conditions and direct sunlight
• 13-Hour Battery Endurance: 3600 mAh rechargeable Li-ion battery provides full-shift operation without mid-day charging; optional 5400 mAh battery extends runtime further
• WiFi Connectivity: Wireless networking enables real-time data transmission to warehouse management systems and cloud-based inventory platforms
• TI OMAP 3730 1 GHz Processor: Single-core processor with 512 MB DDR SDRAM and 4 GB NAND Flash memory delivers sufficient compute for barcode scanning, batch data staging, and light application workloads
• Windows CE 6.0 R3 / Windows Embedded Handheld 6.5.3: Mature operating system with broad third-party application support and enterprise management tools for legacy and custom logistics software
• microSD Expansion: Supports SDHC memory cards up to 32 GB for large batch file storage, offline transaction queuing, and firmware updates in field deployments
• Compact Ergonomic Design: 214 mm × 87 mm × 47 mm footprint and 447 g weight (3600 mAh) minimize hand fatigue during extended scanning sessions

Integration & Compatibility

The A97BM5CLN31UP operates on Windows Embedded Handheld 6.5.3 and supports Windows CE 6.0 R3, enabling compatibility with established enterprise logistics software, warehouse management systems (WMS), and custom applications built on the .NET Compact Framework. WiFi connectivity allows seamless integration into existing WLAN infrastructure. The device supports standard barcode file formats and can interface with legacy RS-232 peripherals through standard serial protocols. Batch mode operation allows offline data capture with automatic synchronization to backend systems when network connectivity is restored.

Eden Phillips

I evaluated the Cipherlab A97BM5CLN31UP during deployment planning for a regional fulfillment center transitioning from handheld scanners to batch-capable mobile computers. This device stands out for its combination of rugged field durability and practical Windows compatibility—a meaningful advantage in facilities already running legacy WMS software or custom .NET applications.

Technical Highlights:

• 2D Laser Scan Reliability: The 2D laser scan engine captures dense 1D and 2D barcodes reliably even in dusty, high-volume picking environments; the IP65 rating ensures the optical window remains clear through regular use and occasional splash exposure.
• Battery Endurance for Shift Work: The 3600 mAh battery delivers 13 hours of mixed scanning and WiFi use, eliminating mid-shift charging stops in most warehouse operations; the optional 5400 mAh variant extends this for extended warehouse floors or multi-zone facilities.
• Drop and Tumble Certification: SGS certification to MIL-STD-810G standards (1.8 m drops, 500+ tumbles) reflects real warehouse drop patterns; this is not marketing hyperbole—it translates to predictable device longevity in fast-paced, high-churn picking operations.
• Windows OS Flexibility: Windows Embedded Handheld 6.5.3 support means you can run existing applications without replatforming; the 512 MB DDR SDRAM and TI OMAP processor are modest by modern standards, but adequate for barcode scanning and batch staging workflows.

Deployment Considerations:

• Batch operation mode—data capture without real-time connectivity—is essential for large warehouse zones with marginal WiFi coverage; verify your facility's WLAN footprint and failover requirements before purchase.
• The 53-key alphanumeric keypad supports manual receipt entry and search queries, but expect slower text input compared to touch-screen devices; prioritize this model for barcode-forward workflows, not data-entry-heavy tasks.
• Windows CE/Handheld licensing and support roadmap visibility matters; confirm your IT group's OS support stance and any third-party application compatibility before committing to fleet deployment.

The A97BM5CLN31UP remains a pragmatic choice for regional logistics operations seeking rugged batch capture without full cloud replatforming. Its durability, mature OS ecosystem, and proven field reliability in warehouse environments justify consideration in any RFQ for mid-tier mobile computing in fulfillment and receiving workflows.
