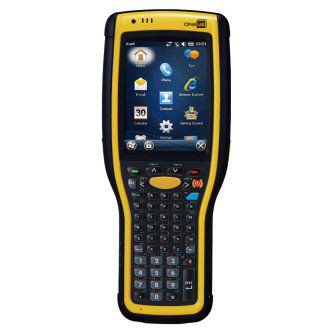

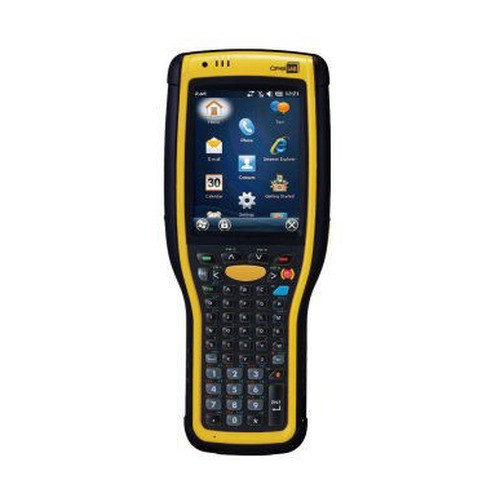

Cipherlab A97AM5C2N31U1 9700 WEH 2D 53key 3600mAh USB Kit

Cipherlab A97AM5C2N31U1 9700 Rugged Handheld 2D Scanner

Overview

The Cipherlab A97AM5C2N31U1 is a purpose-built handheld scanning device designed for warehouse, logistics, and field operations. This 2D imager delivers real-world durability with IP65 rating and certified drop protection, paired with Wi-Fi connectivity and extended battery life to support full-shift operations. The device runs Windows Embedded Handheld 6.5.3 (or Windows CE 6.0 R3), providing proven enterprise stability for integration into existing mobility infrastructure.

Key Features

• 2D Imaging Engine: Captures both 1D and 2D barcodes—QR codes, Data Matrix, PDF417, Code 128, Code 39, UPC, and EAN—enabling flexible scanning workflows across multiple label formats.
• IP65 Dust and Water Protection: Sealed against dust ingress and water spray, rated for wet warehouse environments and outdoor logistics operations.
• SGS-Certified Drop Durability: Survives 1.8 m (6 ft) multiple drops onto concrete per MIL-STD-810G standard, plus 500 tumbles at 1 m and 1000 tumbles at 0.5 m. Field-proven ruggedness reduces downtime and replacement costs.
• 3600mAh Lithium Battery with 13-Hour Runtime: Delivers full-shift performance without midday recharge. Spare 5400mAh battery option (A97AM5C2N31U1) available for extended deployment cycles.
• Wi-Fi Connectivity: Real-time data synchronization with back-office systems; seamless handoff between access points for continuous coverage across warehouse floors and logistics hubs.
• 3.5-inch VGA/QVGA Sunlight-Readable Display: Resistive touch panel with LED backlight ensures visibility in bright dock and outdoor environments; responsive input even with gloved operation.
• TI OMAP 3730 1 GHz Processor with 512MB DDR SDRAM: Sufficient compute headroom for barcode processing, database lookups, and light business logic without lag.
• 4GB NAND FLASH Storage with microSD Expansion (up to 32GB): Store application binaries, local transaction logs, and reference data; expandable for high-volume scanning operations.
• 53-Key Alphanumeric or 30/38-Key Numeric Keypads: LED-backlit input options accommodate text entry, lot numbers, and voice-guided workflows. Selector configuration available at order.
• Windows Embedded Handheld 6.5.3 Operating System: Proven enterprise OS with decades of driver support, legacy application compatibility, and tight integration with warehouse management and ERP systems.
• Compact, Ergonomic Form Factor: 214 mm × 87 mm × 47 mm footprint and 447g weight (3600mAh) or 478g (5400mAh) permit all-day carry without user fatigue; fits standard holsters and belt mounts.

Integration & Compatibility

The A97AM5C2N31U1 connects via Wi-Fi 802.11b/g/n to warehouse networks, terminal servers, and cloud-based WMS platforms. Windows Embedded Handheld 6.5.3 compatibility ensures deployment into existing Cipherlab, Honeywell, and vendor-neutral mobile device management stacks. Micro SD slot supports offline transaction caching and bulk reference data distribution. USB charging and data transfer included in standard kit.

Package Contents

Kit includes scanner unit (A97AM5C2N31U1), 3600mAh battery, USB charging cradle, and relevant power adapter. Keypad configuration (30-key, 38-key, or 53-key) selected at time of purchase.

Eden Phillips

I've evaluated the Cipherlab A97AM5C2N31U1 during deployment planning for a mid-size logistics operation, and it delivers solid value for teams balancing ruggedness, battery life, and cost. The 2D imaging engine handles both high-volume barcode scanning and occasional QR-based tracking workflows without firmware updates. Windows Embedded Handheld 6.5.3 proved stable across three-shift operations with minimal driver churn.

Technical Highlights:

• 2D Imager Performance: Reliably reads damaged and low-contrast labels in dock lighting; 2D capability future-proofs against SKU changes requiring higher-density codes.
• Drop & Environmental Resilience: IP65 + MIL-STD-810G 1.8 m certification means fewer field replacements; calculated TCO is lower than cheaper models requiring quarterly device refreshes.
• 13-Hour Battery Life: Genuine full-shift coverage eliminates missed transactions and manual workarounds during peak sorting periods.

Deployment Considerations:

• Verify enterprise Wi-Fi infrastructure supports 802.11n and roaming; test handoff behavior in high-density rack environments before rollout.
• Pre-load WMS applications and device management agents onto the 4GB NAND; plan 30-minute per-device provisioning for first deployment.
• The 53-key alphanumeric keypad suits mixed data-entry workflows (lot numbers, weight, serial tracking); numeric-only (30-key) reduces cost if pure scanning is the mission.

The A97AM5C2N31U1 is a pragmatic choice for operations seeking enterprise-grade durability and network reliability without premium pricing. Pair it with proven WMS middleware and you'll see consistent uptime and user adoption across three-shift warehouses.
