Panduit PFP6C04BU-UGZ Copper Cable

Overview

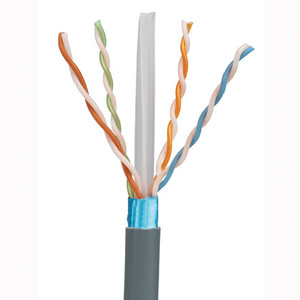

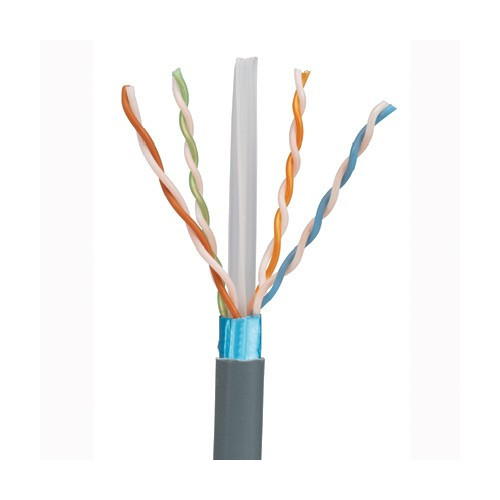

The Panduit PFP6C04BU-UGZ is a 1000-foot spool of Category 6 F/UTP bulk copper cable designed for high-speed data transmission in plenum-rated environments. Its construction supports exceeding ANSI/TIA-568.2-E Category 6 component standards, making it suitable for demanding network installations where performance and safety are critical. The cable features 23 AWG solid conductors twisted into pairs, separated by a cross divider, and protected by an overall foil shield and a low-smoke, flame-retardant PVC jacket.

Compatibility

This cable is designed for use with standard Category 6 networking equipment, including patch panels, keystones, and network interface devices. It is suitable for deployment in enterprise data centers and commercial buildings that require CMP-rated cabling for plenum spaces, such as above drop ceilings or under raised floors. It integrates with standard RJ45 connectors and network infrastructure components that adhere to the Cat 6 specification.

Installation Notes

The cable features 23 AWG solid conductors with FEP (CMP) insulation and a low-smoke, flame-retardant PVC jacket. Proper termination is essential to maintain performance standards. Ensure all connections adhere to Category 6 specifications to prevent signal degradation. The 1000-foot length is provided on a spool for ease of deployment in structured cabling systems.
