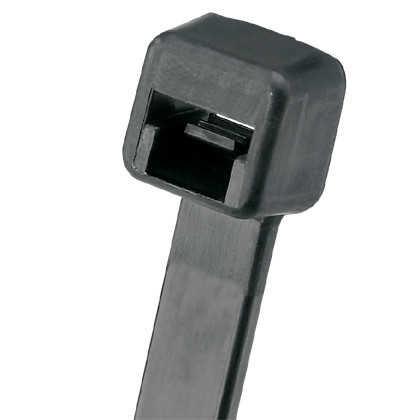

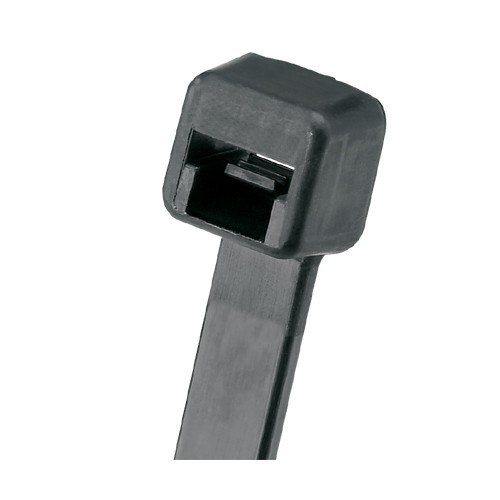

Panduit PLT3S-C30 Pan-Ty® High Heat Cable Tie

The Panduit PLT3S-C30 delivers 50-pound tensile strength in an 11.5-inch heat-stabilized cable tie engineered for high-temperature installations where generic ties fail. Built from Nylon 6.6 with heat stabilization, this tie maintains structural integrity in plenum spaces, outdoor enclosures, and equipment rooms where ambient temps push beyond standard tie ratings. The curved tip design reduces threading time on dense cable bundles, and the one-piece locking wedge eliminates the slippage common in two-piece designs. UL 62275 Type 2/21 compliant and CSA certified for professional-grade deployments.

Key Features

• 50 lb tensile strength for secure bundling of heavy cable runs and outdoor backbone lines
• Heat-stabilized Nylon 6.6 construction rated for elevated-temperature environments
• 11.5" (292 mm) length accommodates standard 4" and 6" diameter bundles
• Curved tip allows fast pick-up from flat surfaces and one-handed initial threading
• One-piece locking wedge design for consistent performance and zero slippage
• UL Recognized (File #E56854), CSA Certified, UL 62275 Type 2/21 compliant, RoHS compliant
• Black finish for professional appearance and UV resistance in outdoor applications
• 100-count package (1,000 per carton) for inventory efficiency on multi-site rollouts

The PLT3S-C30's heat-stabilized Nylon 6.6 formulation is engineered to resist creep and embrittlement in sustained high-temperature conditions—critical when bundling cables in attic runs, above drop ceilings, or near equipment exhaust vents. The one-piece locking wedge delivers consistent lock-up across the full range of bundle diameters, from finger-tight initial threading to final torque. Low insertion force reduces installer fatigue during large deployments, while the 50-pound loop tensile strength provides margin for outdoor PTZ camera mounts, fiber backbone bundling, and heavy-gauge copper runs. Standard 0.18" × 0.05" cross-section fits Panduit installation tools (GTS-E, GTH-E, GS2B-E, GS4H-E series) for repeatable tensioning and flush-cut trimming.

Security integrators rely on the PLT3S-C30 for camera installation wire management—securing siamese cable along conduit runs, bundling pigtails inside junction boxes, and strain-relieving drops at ceiling-mount cameras. In datacenter and AV environments, these ties manage patch-panel dressing, vertical cable managers, and overhead ladder-rack runs where plenum rating and heat tolerance are non-negotiable. The 11.5" length handles standard 4" to 6" diameter bundles, covering typical 24-pair copper bundles, fiber trunk groups, and mixed-media runs. Black color maintains clean aesthetics in exposed installations and provides UV resistance for outdoor enclosures and pole-mounted equipment.

UL 62275 Type 2/21 compliance certifies this tie for low-smoke, fire-safety installations per NEC Article 800. CSA certification meets Canadian electrical code requirements for commercial and industrial sites. RoHS compliance ensures spec compliance on federal and municipal projects with environmental procurement mandates. Compatible with Panduit's GTS-E manual tool, GTH-E heavy-duty tool, and pneumatic installation tools for consistent tensioning across crews. The curved tip and rounded edges reduce cable jacket damage during installation—important for maintaining Category 6A performance and fiber bend-radius specs in dense bundles.
