Panduit CCPLTR5060-X Polymer Trefoil Cable Cleat, 50–60mm, 136kA, Pack of 10

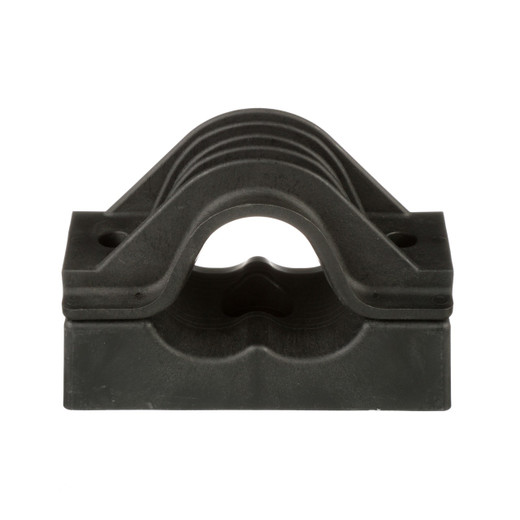

The Panduit CCPLTR5060-X is a glass-reinforced polyamide trefoil cable cleat rated for medium-to-high intensity short-circuit events in less mechanically demanding environments. Designed for three-core trefoil cable arrangements with an outer diameter of 50–60mm, this cleat retains cables under fault conditions up to 136kA peak fault current and meets IEC 61914:2015 — the international standard governing cable cleat performance, testing methodology, and fault-current retention. Sold in packs of 10, the CCPLTR5060-X is a practical buy for panel builders, electrical contractors, and facilities teams specifying medium-voltage cable management on cable tray systems.

Overview

Trefoil cleats solve a specific problem: when a bolted short-circuit occurs on a three-phase power cable, the electromagnetic forces generated between conductors are substantial — enough to eject cables from their supports, cause secondary faults, or injure personnel. The CCPLTR5060-X anchors the cable formation at each cleat point, distributing and resisting those forces so the cable stays in position through the fault event. This cleat is the right tool where the cable diameter falls in the 50–60mm window and fault levels are within the 136kA design envelope. For more demanding installations — higher fault currents, extreme ambient temperatures, or highly corrosive environments — a higher-rated or stainless-steel cleat family would be the appropriate step up.

Key Features

• 136kA Peak Fault Current Rating: Tested and certified to retain cables during fault events up to 136kA — this is not a catalog claim but a verified performance figure per IEC 61914:2015. Size your cleat spacing to your calculated fault level; the 136kA rating gives substantial headroom for medium-voltage distribution panels and switchboard feeders.
• IEC 61914:2015 Certified: Compliance with this standard means the cleat has been independently tested for mechanical retention force, thermal cycling, UV resistance, and dimensional stability. Specifying IEC 61914:2015-compliant hardware satisfies most utility and industrial EPC inspection requirements without further justification.
• 50–60mm Cable Diameter Range: The cleat is sized for trefoil cable ODs in the 50–60mm window. Verify your cable's outer sheath diameter — not conductor size — before ordering. A mismatch of even a few millimeters compromises both retention and the integrity of the IEC-certified performance envelope.
• Glass-Reinforced Polyamide Construction: The polyamide (nylon) matrix with glass-fiber reinforcement delivers the structural rigidity needed to resist fault-force deflection without the corrosion concerns of uncoated steel. Rounded edges on the cleat body protect cable insulation from abrasion during installation and thermal cycling — a detail that matters on cables that will see decades of service.
• M10 Bolt Mounting into Cable Tray Rung: Installs directly into the fixing hole of a cable tray rung using a standard M10 bolt (not included). This keeps the BOM simple and means field crews can source fasteners locally if needed. Confirm your tray rung hole pattern matches M10 clearance before installation.
• Pack of 10 — Project-Quantity Packaging: At 10 units per pack, the CCPLTR5060-X is packaged for real installation quantities rather than single-piece sampling. Cleat spacing is typically specified per IEC 61914:2015 Annex guidance or the cable manufacturer's datasheet — plan your run length and fault-level spacing to determine how many packs your project requires.
• Color: Black: Standard black finish suits most industrial and commercial cable tray installations. Color-coding by phase or circuit is not a typical use case for trefoil cleats, but if your specification requires a specific color, verify availability in the broader Panduit cleat range.

Integration & Compatibility

The CCPLTR5060-X (often searched as CCPLTR5060 X) is compatible with cable tray systems that use M10 fixing hardware on the rung. It is designed for use with trefoil-laid three-core cables with outer diameters of 50–60mm. The cleat installs without special tooling — a standard M10 bolt and wrench are sufficient. It is not designed for flat-formation (trifoil flat) or single-core spaced layouts; those require a different cleat geometry. Competitive equivalents listed in Panduit's technical documentation include KOZ TRI 38-53, KOZ TRI 53-66, and TR45-54/TR52-62 series cleats, which confirms the CCPLTR5060-X positions in the mid-range OD segment of the trefoil cleat market.

For broader cable management planning, including tray selection, cleat spacing calculations, and cable routing accessories from the Panduit wire routing and management line, evaluate your full run before committing to a single cleat model. Spacing requirements under IEC 61914:2015 vary by fault current level and cable mass — undersizing the cleat count is a common and costly error on high-fault-current feeders. See the cable cleats category for the full range of OD sizes and fault ratings available.

What's in the Box

• 10x Panduit CCPLTR5060-X Polymer Trefoil Cable Cleats

Note: M10 mounting bolt is not included and must be sourced separately.

Frequently Asked Questions

Q: What cable outer diameter does the CCPLTR5060-X support?

A: The CCPLTR5060-X is designed for trefoil-laid cables with an outer diameter of 50–60mm. Measure the outer sheath of your cable — not the conductor size — to confirm fit before ordering.

Q: What is the fault current rating of the CCPLTR5060-X?

A: The CCPLTR5060-X has been tested to a maximum fault current of 136kA peak, per IEC 61914:2015. This rating applies to the medium-to-high intensity short-circuit environments for which the cleat is designed.

Q: Is the CCPLTR5060-X compliant with IEC 61914:2015?

A: Yes. The CCPLTR5060-X meets IEC 61914:2015, the international standard for cable cleats used with power cables. This certification covers mechanical retention, thermal performance, and dimensional requirements under fault conditions.

Q: Is the M10 mounting bolt included with the CCPLTR5060-X?

A: No. The M10 bolt required to fix the cleat to the cable tray rung is not included and must be sourced separately. Standard M10 hardware is widely available from electrical and fastener suppliers.

Q: How many cleats come in a pack of the CCPLTR5060-X?

A: Each order of CCPLTR5060-X contains 10 cable cleats. Calculate your required cleat count based on your cable run length and the fault-current spacing requirements per IEC 61914:2015 before determining how many packs to order.

Q: What material is the CCPLTR5060-X made from?

A: The CCPLTR5060-X is manufactured from glass-reinforced polyamide (nylon). This material provides the structural rigidity needed for fault-force retention while offering corrosion resistance and rounded edges that protect cable insulation during installation and service life.
