Panduit CCPL2H5870-X 58-70mm Polymer Cable Clamp

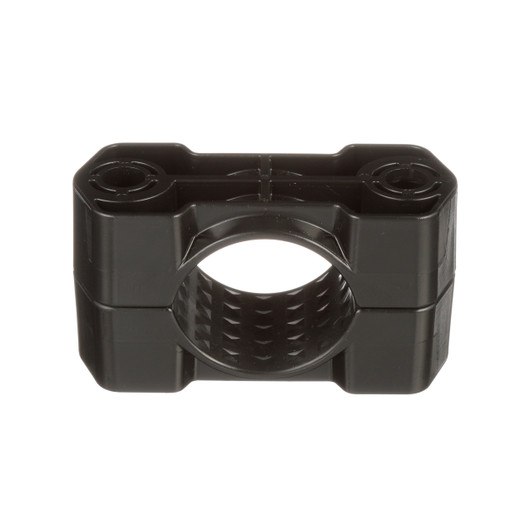

Panduit CCPL2H5870-X Polymer Cable Clamp

The Panduit CCPL2H5870-X is a heavy-duty polymer cable clamp engineered for securing 58-70mm diameter cables in datacenter, telecom, and industrial installations. This two-hole mounting clamp uses M10 double-bolt fixation to handle large-gauge power feeds, fiber trunks, and bundled copper runs where standard tie-wraps and J-hooks won't cut it. IEC 61914:2015 certified and third-party lab tested, it delivers code-compliant cable support across a -40°C to +60°C operating range. The nylon construction resists UV degradation and vibration fatigue, and the rounded contact edges prevent jacket abrasion on expensive campus trunk cables. Ships in 10-piece packages for multi-point routing projects.

Key Features

• IEC 61914:2015 certified for global compliance on power and telecom cable management
• Two-hole M10 bolt mounting for rigid attachment to cable tray, rack verticals, or structural steel
• 58-70mm cable diameter range accommodates bundled Cat6A, fiber trunk, and medium-gauge power feeds
• Nylon polymer construction withstands UV exposure, vibration, and thermal cycling from -40°C to +60°C
• Rounded contact edges prevent cable jacket abrasion and insulation damage during expansion/contraction
• Integrated grooves keep cables centered and prevent slippage under load
• 128mm width × 78mm height footprint fits standard 4" and 6" cable tray widths
• Third-party lab tested for mechanical strength and environmental durability
• Black finish for professional appearance in visible pathways
• 10-piece package quantity for full rack or tray runs

Panduit's CCPL2H5870-X is built from impact-grade nylon 6/6, a material chosen for its high tensile strength, chemical resistance, and long-term dimensional stability. Unlike commodity cable ties that degrade under UV exposure or break during thermal expansion cycles, this clamp maintains clamping force across temperature extremes without embrittlement. The IEC 61914:2015 certification confirms that the design has passed third-party lab tests for mechanical strength, flammability, and environmental resistance—critical for installations subject to NEC Article 300 (wiring methods), TIA-569 (pathways), or ISO/IEC 11801 (generic cabling) compliance audits. The M10 double-bolt fixation system (hardware not included) allows you to torque the clamp to spec without crushing cable jackets, and the two-hole pattern distributes load across a wider mounting surface than single-screw P-clips. Operating temperature range of -40°F to +140°F covers outdoor telecom pedestals, unheated equipment shelters, and rooftop antenna installations where seasonal temperature swings would crack polypropylene hardware.

This clamp is sized for the heavy-gauge cable bundles common in enterprise datacenters, campus backbone pathways, and industrial control installations. A typical use case is securing a 60mm bundle of twelve Cat6A cables running vertically in a 42U rack—too thick for standard D-rings, too heavy for Velcro straps. The 128mm width spans the mounting holes on 4" ladder rack rungs and 6" solid-bottom tray, and the 78mm height provides clearance for stacked bundles without forcing cables into tight bends. The integrated grooves on the inner radius keep round cables centered during installation, and the rounded edges prevent jacket scuffing when cables expand under load or thermal cycling. For projects running diverse cable types (fiber OM4 trunk + 1/0 AWG power feeds + coax antenna runs), the 58-70mm range lets you standardize on one clamp SKU instead of mixing Panduit's 38-50mm and 70-95mm sizes. The 10-piece pack covers a typical single-rack vertical run with clamps every 4-5 feet per NEC 300.11(A) support requirements.

Where Panduit's CCPL2H5870-X separates from hardware-store cable clamps is the IEC 61914:2015 certification—documentation that matters when the final inspection checks your pathway compliance or when an insurance adjuster traces a failure back to unapproved hardware. The third-party lab test reports confirm flame-resistance ratings, load retention after thermal cycling, and UV-stability metrics that commodity clamps can't provide. For integrators bidding on government, healthcare, or financial-sector projects with enforced standards compliance, this clamp closes the gap between "it holds the cable" and "it meets the spec."
