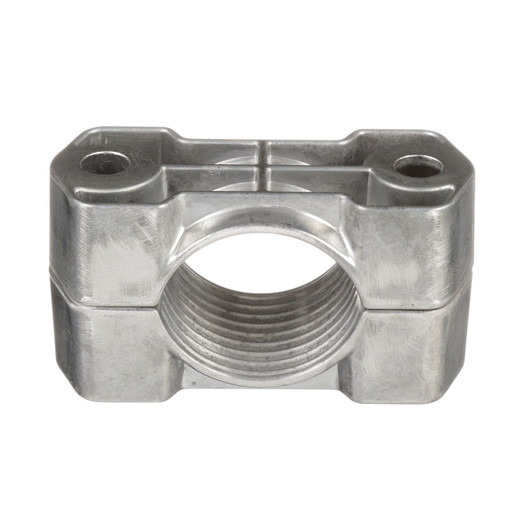

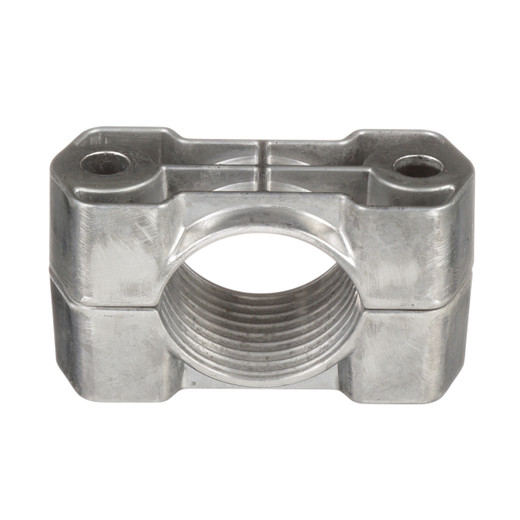

Panduit CCAL2H3846-X Aluminum Two-Hole Cable Cleat, 38-46mm, Pack of 10
Overview
The Panduit CCAL2H3846-X is an aluminum two-hole cable cleat engineered to retain single cables with an outer diameter of 38 to 46mm under medium-to-high-intensity short-circuit events. Certified to IEC 61914:2015 and tested to a maximum fault current of 131kA, this cleat is the choice when code compliance and mechanical retention under fault conditions are non-negotiable. At 3.98 in (101mm) wide and 2.36 in (60mm) tall, it installs directly into cable tray rung holes using M10 bolts (sold separately), making it compatible with standard ladder-type cable management infrastructure. Sold as CCAL2H3846-X (often searched as CCAL2H3846 X), this pack of 10 suits both initial installation and maintenance stock.
Key Features
- 131kA Fault Current Rating: Tested to retain cables during high-magnitude short-circuit events — critical in medium-voltage switchgear rooms, substations, and industrial power distribution where a fault could otherwise cause catastrophic cable movement or whipping.
- IEC 61914:2015 Certification: Compliance with this international standard means the cleat has passed independent testing for cable retention under dynamic fault loads, which satisfies specification requirements on commercial and industrial projects where engineers must document cleat ratings.
- Aluminum Construction for Moderately Corrosive Environments: The natural-finish aluminum body resists corrosion in most indoor and sheltered outdoor applications. Note: Panduit explicitly positions this for less corrosive environments — in aggressive chemical or coastal salt environments, evaluate a stainless alternative.
- 38-46mm Cable Diameter Range: Sized for larger power cables common in feeder circuits and medium-voltage runs. Confirm your cable's actual outer diameter (including jacket) before ordering — the cleat must grip, not just encircle.
- Two-Hole Mounting Pattern: Dual mounting points distribute mechanical stress under fault conditions far better than single-hole designs, reducing the risk of the cleat rotating or pulling free from the tray rung during a fault event.
- M10 Bolt Compatibility: Installs into standard cable tray rung holes with M10 hardware — widely available and consistent with most ladder tray systems already on site. Bolts are not included; order accordingly.
- Galvanic Corrosion Note: Panduit specifies that spacers and washers (sold separately) are required when pairing with dissimilar metals to prevent galvanic corrosion. This is especially relevant when mounting to steel or hot-dip galvanized trays.
Integration & Compatibility
The CCAL2H3846-X installs into cable tray rung holes and is compatible with M10 bolts. Spacers and washers for galvanic protection are sold separately by Panduit. This cleat is designed for single-cable retention; it is not intended for multi-cable trefoil or flat-formation groupings. Cross-reference competitor part numbers 2A-07N and 2BC038048A if transitioning from another manufacturer's cleat specification on an existing project.
What's in the Box
- 10x Panduit CCAL2H3846-X aluminum two-hole cable cleats
Frequently Asked Questions
Q: What cable diameter range does the CCAL2H3846-X accommodate?
A: The CCAL2H3846-X is rated for single cables with an outer diameter of 38 to 46mm (approximately 1.5 to 1.8 inches). Measure the finished outer diameter of the cable including its jacket before specifying.
Q: What fault current level has this cleat been tested to?
A: The CCAL2H3846-X has been tested to a maximum fault current of 131kA, making it suitable for medium-to-high-intensity short-circuit applications in industrial and commercial power distribution environments.
Q: Is the CCAL2H3846-X certified to any international standards?
A: Yes. The CCAL2H3846-X meets IEC 61914:2015 (also referenced as CEI 61914:2015), the international standard governing cable cleats for electrical installations.
Q: Are mounting bolts included in the pack?
A: No. The pack of 10 includes only the cable cleats. M10 bolts, spacers, and washers must be ordered separately. Panduit recommends using spacers and washers when mounting to dissimilar metals to prevent galvanic corrosion.
Q: Is this cleat suitable for outdoor or corrosive environments?
A: The aluminum construction is appropriate for less corrosive environments. For aggressive chemical exposure, coastal installations, or direct submersion, a stainless steel cable cleat variant should be evaluated instead.
The CCAL2H3846-X sits in a specific and often under-specified niche: large-bore feeder cables in environments where a bolted fault is a real design scenario. The 131kA test rating is the number that matters on a switchgear room submittal — that figure, combined with IEC 61914:2015 certification, is what closes the loop with the electrical engineer of record when they're reviewing your cable management package.
Technical Highlights:
- 131kA Fault Current Tested: This rating covers medium-to-high-intensity fault scenarios in industrial switchgear, MCC rooms, and utility distribution — the cleat physically retains the cable during the electrodynamic force spike that accompanies a major fault event.
- 38-46mm Single Cable Range: Targets the cable OD range common to 350-500 kcmil and similar large feeder conductors. At 101mm (3.98 in) wide, the two-hole footprint spans a standard ladder rung cleanly without interference on typical 9-inch rung spacing.
- Aluminum Body, Natural Finish: Lightweight relative to steel alternatives, and non-sparking — relevant in environments where metal-on-metal contact near energized conductors is a concern. The trade-off is reduced corrosion resistance versus 316 stainless; specify accordingly per the environment classification.
Deployment Considerations:
- M10 bolts, spacers, and washers are all sold separately — do not arrive on site without them. On a typical feeder run you will need one cleat per IEC-specified spacing interval, so factor hardware quantities into your BOM from the start.
- This cleat is rated for single-cable installation only. If your design calls for trefoil or flat-formation groupings of three conductors, you need a trefoil cleat rated for that configuration — the CCAL2H3846-X is not the right product for multi-cable formations.
For industrial power distribution projects — MCC rooms, substation cable risers, large commercial feeder runs — where the specification sheet calls out IEC 61914:2015 compliance and a documented fault current rating above 100kA, the CCAL2H3846-X delivers exactly what the submittal requires. The pack-of-10 quantity aligns well with a single riser or panel feed installation run.
