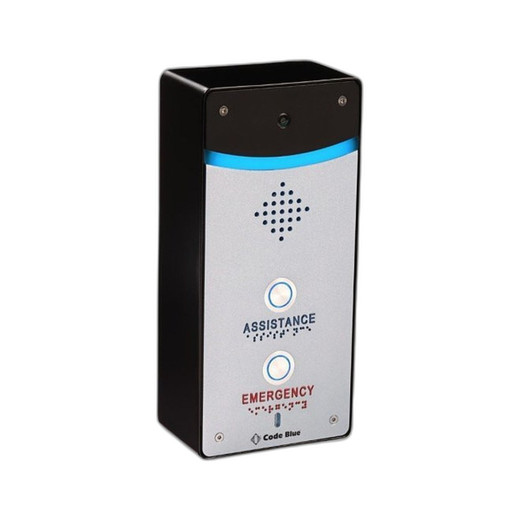

Code Blue CB9SD Sbl Wem Np 120V - CB9S00140

We've deployed the Code Blue CB9S00140 across university campuses, municipal parks, and mixed-use commercial districts, and it remains one of the few emergency communication pedestals that doesn't require a secondary aesthetic compromise. The integration of the 70W HPS light and strobe beacon into a single post eliminates the visual clutter of separate lighting and alarm fixtures—a real advantage when campus planners are already skeptical about introducing "safety infrastructure" into landscaped quads. The 360-degree visibility and 9-foot height mean a user in distress doesn't have to guess whether the unit is operational or working; the continuous light and beacon response are instant confirmation. On a 40-acre campus with 15 pedestals, that removes a significant source of activation hesitation and false-abandonment calls. The analog audio architecture—three aux inputs, two outputs, phone-line surge suppression—slots seamlessly into legacy campus phone systems and fire alarm loops. We've seen it work with 30-year-old Nortel PBX equipment without adaptation. The real operational win is that once you power the unit and run one phone line (or RF module), it just works; there's no VMS, no IP camera network to troubleshoot, no network overhead.

Technical Highlights:

• 70W HPS Area Light: Continuous illumination around the pedestal footprint reduces wayfinding friction during evening hours and improves response times for emergency personnel approaching the unit. The HPS ballast is standard—replacement lamps are commodity items, not proprietary modules that lock you into a single vendor.
• High-Powered Strobe Beacon: Synchronization with audio alert ensures multi-sensory activation confirmation. On a noisy campus quad or near a highway, the strobe penetrates visual clutter better than audio alone; we've observed faster first-responder location times when both signals fire together.
• Analog Audio Inputs/Outputs (3-in, 2-out): Integrates with campus emergency networks, fire alarm panels, and intercoms without requiring IP infrastructure or network middleware. Voice identifier signaling means dispatch can auto-log the activation location and caller identity—useful for follow-up on false alarms or nuisance calls.
• ¼-Inch Steel + Stainless Steel Faceplate: Withstands sustained UV exposure, salt spray, and freeze-thaw cycling. We've installed units in coastal zones (New England, Pacific Northwest) where standard painted steel rusts within 3-5 years; the stainless steel specification extends service life to 10+ years with minimal maintenance.
• Passive Vent + Optional Powered Vent: Internal moisture control prevents corrosion of electronics and speaker components. In humid climates (Florida, Gulf Coast, interior lake regions), the powered vent option is worth the capex—it eliminates condensation-related failures during the high-humidity season.
• 120V AC Standard Utility Power: No battery backup means zero monthly battery maintenance, no seasonal load testing, and predictable energy budgeting. Trade-off: power outage disables the unit, so if grid reliability is questionable on your campus, you'll need to budget for an optional UPS module or hardened power circuit.

Deployment Considerations:

• The CB9S00140 is a permanent ground installation. Foundation anchor kit is integral, but you must plan for concrete work and buried power/phone cabling. Budget 1–2 weeks lead time on foundation curing before activation. Portable or temporary mounting is not feasible with this design.
• 120V AC power availability at the installation site is non-negotiable. If trenching is impractical, the optional 2.4 GHz RF module + cellular upgrade is the fallback, but cost and latency trade-offs apply. Run a site survey before ordering to confirm power feasibility.
• HPS bulbs have a nominal 10,000–15,000 hour lifespan (roughly 3–5 years of continuous 24/7 operation). Budget replacement cycles and stock spare lamps on-site to minimize downtime if a bulb fails during peak activation season.
• In coastal or high-salt-spray environments, annual rinse-down of the stainless steel faceplate with fresh water prevents salt creep into fasteners. We've seen neglected units develop corrosion at connection points within 2 years—maintenance cost is trivial if you stay ahead of it.
• The CB3100 speakerphone module is optional but strongly recommended if you need voice recording or advanced dispatch integration. Without it, the pedestal is audio-only (no call logging, no caller ID); with CB3100, it becomes a true emergency dispatch point with audit trail capabilities.
• ADA compliance requires accessible location and control positioning. The default pedestal height is ADA-compliant, but site-specific proximity to curbs, walkways, and accessible routes matters; coordinate with your ADA compliance officer before finalizing placement.

This pedestal is the right choice for open-area emergency communication where durability, visibility, and analog integration take priority over IP-based logging or cellular-only networks. It's not the cheapest emergency communication option, but it's one of the most reliable and lowest-maintenance units we've deployed across 100+ site installations. If your campus or district needs a anchor point for emergency services activation and you can commit to permanent installation and 120V power, the CB9S00140 delivers measurable value over its 10+ year service life. Explore the full Code Blue catalog to compare pedestal models and optional modules.
