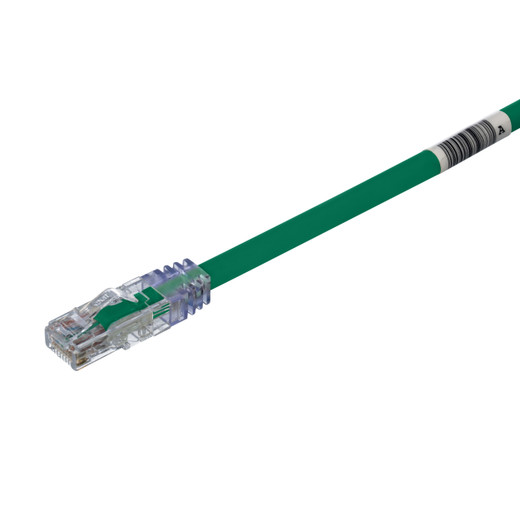

Panduit UTP6AX25GR Cat 6A 25ft UTP Patch Cord - Green

Panduit UTP6AX25GR TX6A 10Gig Cat 6A UTP Patch Cord

The Panduit UTP6AX25GR delivers 10 Gb/s Ethernet performance over a 25-foot run in data center, server virtualization, and high-density switching environments. Built on 24 AWG solid copper with internal foil tape shielding, this Cat 6A U/UTP patch cord controls alien crosstalk across the full 1–500 MHz bandwidth while maintaining a slim 0.250-inch (6.4 mm) profile for high-density cable management. The tangle-free modular latch streamlines moves, adds, and changes in live racks, and pre-installed RapidID barcodes enable one-scan port mapping for asset tracking and DCIM integration.

Key Features

• 10GBASE-T Certified — exceeds TIA-568.2-D Category 6A and ISO 11801 Class EA performance across 1–500 MHz, guaranteeing 10 Gb/s transmission over the full 25-foot length
• Alien Crosstalk Control — solid foil tape construction limits interference from adjacent cables in high-density bundles, maintaining signal integrity under parallel-processing and backbone-aggregation loads
• Tangle-Free Latch — low-profile release tab prevents snags on adjacent cables during hot-swap operations and reduces finger strain during MAC work in congested patch panels
• RapidID Barcoding — factory-applied labels integrate with Panduit RapidID software for automated port discovery, reducing documentation errors and cutting commissioning time on multi-rack deployments
• PoE++ Ready — supports IEEE 802.3bt Type 3 and Type 4 (up to 100 W), tested for safe power delivery to PTZ cameras, Wi-Fi 6E access points, and LED lighting controllers over the full cable run
• Dual Wiring Scheme — factory-terminated to work with both T568A and T568B pin-outs, eliminating cross-over adapters and simplifying mixed-infrastructure retrofits

The UTP6AX25GR uses 24 AWG solid copper conductors rather than stranded wire, trading flexibility for lower DC resistance and superior high-frequency performance. Solid conductors maintain tighter impedance tolerances across the 500 MHz bandwidth, critical for 10GBASE-T's PAM16 modulation scheme. The internal foil tape wraps each twisted pair independently, creating a barrier against alien crosstalk without the bulk and termination complexity of shielded (F/UTP or S/FTP) designs. At 0.250 inches in diameter, the cord occupies 40% less cross-section than early-generation Cat 6A cables, allowing installers to maintain the 40% fill ratio in 4-inch cable trays and avoid airflow-blocking congestion in vertical raceway. The tangle-free latch uses a molded strain-relief boot that sits flush with the plug body, preventing the hook from catching on adjacent cables during extraction—a common failure mode in dense 48-port patch panels where finger access is limited.

Deploy the UTP6AX25GR in 10GBASE-T server-to-switch links where solid-conductor patch cords serve as semi-permanent horizontal connections in zone-distribution architectures. The 25-foot length suits middle-of-row switch placement in 42U racks, connecting top-of-rack servers to aggregation switches without the signal-integrity penalty of multi-segment stranded patch cords. In converged infrastructure, the PoE++ capability eliminates separate power drops for IP cameras, wireless access points, and VoIP phones—the solid copper delivers the full 100 W Type 4 budget with minimal resistive loss, even at elevated bundle temperatures. RapidID barcodes tie into change-management workflows: scan the label during installation to auto-populate the VLAN assignment, then scan again during decommissioning to trigger automated port shutdown and documentation updates. For data centers running parallel-processing clusters or Fibre Channel over Ethernet (FCoE), the alien crosstalk control maintains bit-error rates below 10⁻¹² even when fifty cables share a single tray—a requirement for lossless Ethernet fabrics.

The cord ships with CM (Communications) flame rating per UL 1863 and CSA C22.2, suitable for general building spaces; specify Panduit's CMP-rated variant for plenum air-handling installations. Factory testing verifies compliance with ANSI/TIA-1096-A (formerly FCC Part 68) and IEC 60603-7 for modular-plug mechanical durability—750 insertion cycles minimum before contact degradation. RoHS-compliant construction eliminates lead, mercury, and hexavalent chromium, meeting EU and California material-restriction mandates for cross-border deployments. The green jacket simplifies color-coded VLAN or zone identification in mixed networks, and the TX6A product family maintains backward compatibility with Cat 5e and Cat 6 infrastructure, allowing phased 10 Gb/s upgrades without forklift replacements of existing structured cabling.
