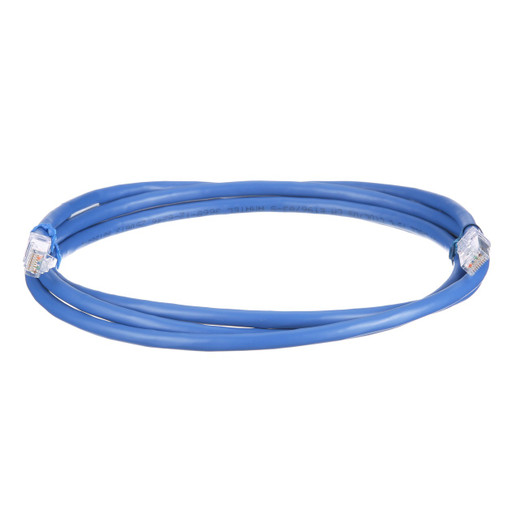

Panduit UTP6AX17BU Patch Cord
Overview
The Panduit UTP6AX17BU is a 17-foot Category 6A unshielded twisted pair (UTP) patch cord designed for high-speed network deployments. Constructed with 24 AWG solid conductors and high-performance modular plugs, this blue cord is built to handle 10 Gigabit Ethernet transmissions. Its solid foil tape construction effectively limits alien crosstalk, a critical factor for maintaining signal integrity in demanding environments like data centers or enterprise networks. The integrated tangle-free latch simplifies installation and maintenance by preventing snags and ensuring a secure, yet easy, release, streamlining moves, adds, and changes. This cord is also enabled with RapidID technology, featuring pre-installed barcodes for straightforward port mapping with compatible RapidID software, reducing configuration time.
Compatibility
This patch cord is engineered to exceed all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards, ensuring compatibility with Category 6A network infrastructure. It meets ANSI/TIA-1096-A requirements and IEC 60603-7 specifications. Critically for modern network devices, it is rated for 2500 cycles with IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) Power over Ethernet standards. This makes it suitable for connecting devices that require high power delivery, such as advanced Wi-Fi 6/6E access points, IP cameras with high illumination, or other PoE++ enabled equipment where standard Cat 5e or Cat 6 cables may not suffice or could overheat.
Installation Notes
The cable has a CM flammability rating, suitable for use in general-purpose horizontal applications within commercial buildings according to the National Electrical Code (NEC). The solid conductor construction provides superior performance for fixed installations but is less flexible than stranded cable, making it ideal for patch panel to switch connections or wall plate to device runs where the cable is not frequently moved. The 0.250-inch (6.4mm) diameter cable offers a balance between density and ease of termination. Ensure proper cable management practices are followed to maintain performance and prevent strain on the connectors.
