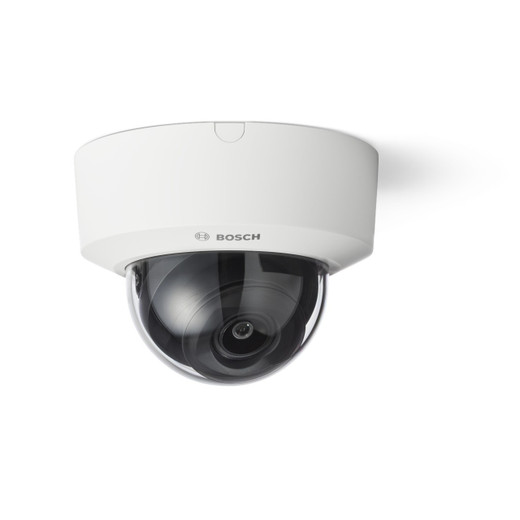

Bosch Bubble tinted FD3100i indoor - NDA-3083-TBLV

Bosch NDA-3083-TBLV Tinted Indoor Dome Bubble Cover for FD3100i

Overview

The Bosch NDA-3083-TBLV is a tinted polycarbonate replacement bubble designed specifically for the FD3100i series indoor dome cameras. At 137 mm × 103 mm (5.39 in × 4.05 in) and weighing just 118 g (0.26 lb), it installs without adding meaningful load to existing ceiling or surface mounts. If your current bubble is scratched, cracked, or you need to change from clear to tinted for glare reduction or to obscure the camera's pan position from subjects, this is the direct OEM replacement path — no adapters, no improvisation.

Tinted bubbles serve a specific operational purpose: they reduce visible reflections in high-ambient-light interiors (retail floors, lobbies, atriums) and prevent observers from reading the camera's pointing direction, which matters in loss-prevention deployments. The polycarbonate construction keeps weight low while the anti-scratch coating extends service life in high-traffic environments where cleaning cycles are frequent.

Key Features

• Tinted Polycarbonate Bubble: Reduces visible glare on the dome surface in bright indoor environments and obscures lens direction from subjects — a standard requirement for overt-but-discreet retail and lobby installations.
• Anti-Scratch Coating: Polycarbonate without a hard coat degrades quickly under regular cleaning with standard janitorial chemicals. The factory anti-scratch coating on the NDA-3083-TBLV extends clarity and service life without requiring specialized cleaning products.
• Signal White Housing (RAL 9003): The polycarbonate housing matches RAL 9003 Signal White — a near-universal neutral in commercial ceiling tile and suspended grid environments. Drop-in aesthetic match with standard white ceilings means no touch-up painting or color-mismatch complaints after installation.
• Compact Form Factor — 137 × 103 mm, 118 g: At just over a quarter-pound, swapping this bubble during a service call adds no appreciable time. The 137 mm diameter fits within the FD3100i's standard ceiling footprint without requiring a new mounting template or trim ring adjustment.
• OEM Fit for FD3100i Indoor Dome Series: Sourced as a genuine Bosch component, this bubble mates to the FD3100i camera body without shimming or modification. Third-party bubbles in this form factor often introduce slight optical distortion or IR reflection artifacts even in tinted variants — using the matched OEM part avoids that risk.

Integration & Compatibility

The NDA-3083-TBLV (often searched as NDA 3083 TBLV) is designed for the Bosch FD3100i indoor fixed dome series. Confirm your existing camera body model before ordering — Bosch dome accessories are series-specific, and a bubble from an adjacent series (e.g., FD5100i or FD7100i) will not seat correctly. If you are specifying a multi-site refresh and need to verify compatibility across a mixed installed base, cross-reference the camera body MPN against the Bosch surveillance accessories catalog before placing a quantity order.

For installers managing a broader dome camera accessory inventory, stock both clear and tinted variants if your customer base includes mixed environments — swapping bubble tint is a common field request during commissioning walkthroughs.

Frequently Asked Questions

Q: Which camera models is the NDA-3083-TBLV compatible with?

A: The NDA-3083-TBLV is designed for the Bosch FD3100i indoor fixed dome camera series. Verify your camera body model number before ordering, as Bosch dome bubbles are series-specific and will not interchange across FD product lines.

Q: What is the difference between a tinted and a clear bubble for the FD3100i?

A: A tinted bubble like the NDA-3083-TBLV reduces ambient light reflections on the dome surface and prevents observers from determining the camera's pointing direction. A clear bubble allows full visible light transmission and is preferred where maximum image quality is the priority. Choose tinted for retail loss-prevention and lobby applications where discreet pan-position masking matters.

Q: Does the tinted bubble affect image quality or IR performance?

A: Any tinted dome introduces some light attenuation compared to a clear bubble. The NDA-3083-TBLV is an OEM Bosch component matched to the FD3100i optical path, so the impact is accounted for in the camera's factory tuning. Third-party tinted bubbles not matched to this series may introduce additional distortion or unexpected IR reflection artifacts.

Q: What are the dimensions and weight of the NDA-3083-TBLV?

A: The bubble measures 137 mm × 103 mm (5.39 in × 4.05 in) and weighs 118 g (0.26 lb). No additional mounting hardware is required beyond what is already installed with the FD3100i camera body.

Q: Is the housing color a standard match for commercial ceiling environments?

A: Yes. The polycarbonate housing is RAL 9003 Signal White, which is a standard neutral used across commercial suspended ceiling tile systems. It provides a clean aesthetic match in most office, retail, and institutional ceiling environments without painting or finishing.

Eden Phillips

The NDA-3083-TBLV is one of those parts that sounds trivial until you have the wrong one on a service van. It is the tinted replacement bubble for the FD3100i indoor dome — 137 mm diameter, RAL 9003 white housing, anti-scratch coated polycarbonate — and it is series-specific, which means a bubble from the FD5100i or FD7100i line will not seat correctly even if it looks close in a parts photo.

Technical Highlights:

• Tinted Polycarbonate Construction: The tint serves two functions simultaneously — it cuts reflective glare on the dome surface under overhead fluorescent or LED lighting, and it masks the camera's pan position from foot traffic below. Both matter in retail loss-prevention where you want overt coverage without telegraphing exactly what the camera sees.
• Anti-Scratch Hard Coat: Standard polycarbonate clouds and scratches within months under repeated cleaning with ammonia-based janitorial products. The factory hard coat on this bubble holds up to regular maintenance cycles, which matters when you have dozens of domes across a retail floor being cleaned nightly.
• 118 g / 0.26 lb Weight: Light enough that a bubble swap during a scheduled PM visit takes under two minutes and does not require re-torquing the mounting hardware. Keep one or two on the service van if you are managing an FD3100i installed base.

Deployment Considerations:

• Confirm the camera body MPN before ordering in quantity — Bosch's indoor dome accessory line uses series-specific bubbles and the physical fit differences between adjacent series can be subtle enough to pass a visual check on the shelf but fail at installation.
• Tinted bubbles attenuate light reaching the sensor compared to the clear variant. In very low ambient light environments (storage rooms, parking structures at night), consider whether the camera's existing exposure settings will compensate adequately, or whether the clear bubble is the better call for that location.

This bubble is the right specification for FD3100i deployments in retail floors, corporate lobbies, and institutional hallways where appearance standards require a neutral white dome and loss-prevention protocols require obscured pan-position. For camera body procurement or a full FD3100i system build, pair with the Bosch indoor dome camera line.
