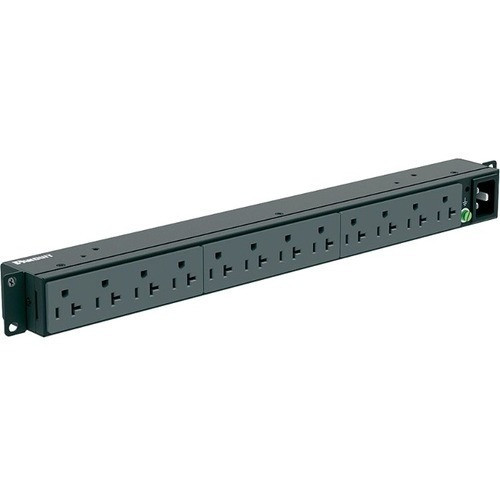

Panduit P12B30M Power Distribution Unit

Overview

The Panduit P12B30M is a 20-amp, 12-outlet Power Distribution Unit (PDU) designed for reliable power delivery in rack-mounted IT environments. It features a NEMA L5-20P locking plug for secure connection to a 20A circuit and provides twelve NEMA 5-20R outlets for powering network equipment, servers, and other rack-mounted devices. This unit is critical for organizing power within a standard 19-inch rack, ensuring each device receives stable power from a single input source. The P12B30M is suitable for data centers, network closets, and enterprise server rooms where consistent power distribution is paramount.

Compatibility

This PDU is compatible with standard 19-inch rack enclosures. The NEMA L5-20P input plug requires a 20A, 125V circuit with a locking receptacle. The twelve NEMA 5-20R outlets are standard for many IT devices, supporting equipment that draws up to 20 amps total across all outlets. It is designed to integrate with existing rack infrastructure and power distribution schemes.

Installation Notes

Install the P12B30M in a standard 19-inch rack, ensuring adequate clearance for airflow and cable management. The unit can be mounted vertically. Secure the NEMA L5-20P plug into a compatible 20A locking receptacle to prevent accidental disconnection. Distribute the load evenly across the twelve outlets to avoid overloading any single outlet or the PDU's total capacity.
