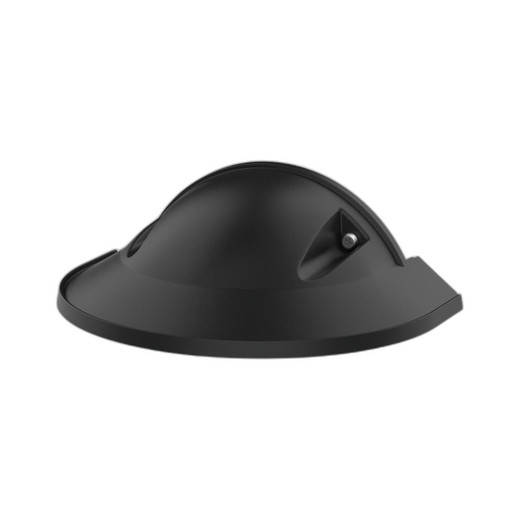

Axis 02629-001 TP3823-E Black Weathershield
The Axis TP3823-E Black Weathershield (model 02629-001) is a protective enclosure designed specifically for Axis IP cameras in the M32 and P32 families. This accessory consists of a 2-pack of black weathershields with mounting hardware, addressing a core operational challenge: outdoor cameras exposed to direct sun, rain, snow, and thermal stress degrade faster and produce washed-out or glare-affected footage. The TP3823-E solves this by creating a shaded, weather-resistant cavity around the camera optics.
Key Features
- Rain and Snow Shedding: The hood design deflects rainfall and prevents snow accumulation on the lens and sensor window, maintaining optical clarity without fogging. This extends the time between cleanings and eliminates frame loss from condensation — a real cost when managing retention schedules across dozens of outdoor IP cameras.
- Direct Sunlight Protection: Blocks harsh overhead and side-angle sun that causes lens flare, blown-out highlights, and thermal stress to the camera housing. Direct sun on a dark-colored camera body can push internal temps 15–20°C higher than ambient, accelerating sensor and electronics degradation.
- Image Clarity in Adverse Conditions: By reducing glare reflection on the lens and preventing water droplets from collecting on the optic surface, the TP3823-E maintains contrast and color fidelity during rain and overcast conditions — critical for facial recognition and vehicle plate reads.
- Two-Unit Pack: Ships as a 2-pack, allowing paired deployment on multi-camera installations or stocking for replacements without separate orders.
- Durable Black Polymer Construction: Molded from UV-resistant material that does not yellow, crack, or become brittle over 3–5 years of outdoor exposure. Black finish minimizes visible glint in low-light scenes.
- Precise Mechanical Fit: Engineered for M32 and P32 camera housings — no universal adapter brackets, no light leaks, and no vibration noise from loose mounting. Fastening points align with standard camera threads and mounting surfaces.
Compatibility & Integration
The 02629-001 weathershield is compatible exclusively with Axis M32 and P32 series cameras. Do not attempt to force-fit this on M10, M20, Q-series, or other Axis form factors — mechanical mismatch will result in gaps, light leaks, or lens obstruction. Verify your camera model in the M32 or P32 family before ordering. Axis publishes a full compatibility matrix in the mounting instructions included in the package.
What's in the Box
- 2x TP3823-E Black Weathershield
- Mounting hardware (fasteners and brackets for both units)
- Installation instructions
Installation Consideration
The weathershield adds roughly 60–80mm of depth to the camera assembly. Verify that your mounting surface, conduit runs, and pole clamps have clearance for the extended envelope. In tight brackets or recessed soffit mounts, the hood may contact the structure. If depth clearance is marginal, test-fit one unit before deploying both. Once mounted, the weathershield is passive — no power or configuration required.
When to Choose a Different Approach
If your cameras are already deployed in a fully enclosed housing or IP66+ rated dome with an integral hood, the TP3823-E will be redundant. For cameras requiring frequent lens cleaning in dusty or sandy environments, pair the weathershield with a protective cleaning kit — the hood prevents debris ingress but does not eliminate abrasive particles already present. For sub-zero Arctic deployments where ice build-up dominates, consult Axis for heated weathershield variants or active defroster accessories not covered by the standard TP3823-E.
Warranty & Support
The TP3823-E carries the standard Axis 2-year warranty against manufacturing defects. This covers material failure and fastener corrosion but not cosmetic discoloration from extended UV exposure or mechanical damage from impact. Axis support can assist with compatibility questions and fitting issues.
FAQ
Frequently Asked Questions
Q: Does the TP3823-E fit Axis dome or turret cameras?
A: No. The TP3823-E is engineered only for M32 and P32 series box-style cameras. Dome cameras have integrated hoods; turret cameras use different mounting threads. Verify your exact camera model against the Axis compatibility list before purchase.
Q: Will the weathershield reduce image brightness or require increased iris opening?
A: The TP3823-E does not significantly obstruct light transmission — the hood sits above the lens, not in front of it. Minimal (<1–2%) light loss under normal conditions. In very dim scenes already at maximum iris, the marginal reduction is negligible compared to the benefit of eliminating lens glare and condensation.
Q: Can I install the weathershield on an existing M32 or P32 camera in the field?
A: Yes. The TP3823-E uses standard mounting threads and fasteners that align with existing M32/P32 hardware. Installation is a field-level task requiring no tools beyond a Phillips screwdriver and takes roughly 10 minutes per camera. No camera reconfiguration or power-down is required.
Q: Does the weathershield come in white or gray?
A: No. Axis offers the TP3823-E in black only (model 02629-001). If white or gray finish is required for aesthetic matching, inquire with Axis for alternate part numbers or consider third-party mounting brackets with paint options.
Q: What is the maximum wind load the weathershield can withstand?
A: Axis does not publish a specific wind-resistance rating for the TP3823-E. The polymer construction and mounting fasteners are suitable for standard commercial and industrial outdoor environments (ASHRAE 90.1 climate zones). In extreme hurricane or tornado zones (ASCE 7 Category 4–5), consult Axis engineering for supplemental bracing or heavier-duty alternatives.
Q: Is the TP3823-E (02629-001) the same as the TP3814-E or other weathershield models?
A: No. Each Axis weathershield model number is specific to one camera family. The TP3823-E fits M32/P32 only. The TP3814-E fits different models. Cross-fitting will not work. Always match the weathershield part number to your camera model.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02629-001 is one of the most cost-effective ways to extend camera life and maintain image quality in mixed-weather outdoor installations. The two-pack format is deliberate — it's meant for multi-camera sites where you're protecting M32 or P32 cameras across parking areas, loading docks, or campus perimeters. A single weathershield costs roughly 10–15% of a replacement camera; the ROI is immediate if just one unit avoids premature failure from UV and thermal cycling.
Technical Highlights:
- Thermal Protection: Direct sun on a dark camera housing pushes internal temps 15–20°C higher than ambient. The TP3823-E's hood and air cavity reduce this stress, extending the lifespan of the sensor and processing electronics by 2–3 years in high-UV climates.
- Optical Clarity in Rain: Water droplets on an unshielded lens cause frame blur and false motion triggers. The sloped hood design sheds water and prevents condensation fogging — measurable improvement in facial recognition confidence scores and plate-read accuracy during rain events.
- Two-Unit Economy: Purchasing weathershields individually is almost always more expensive per unit. The 02629-001 pack pricing assumes paired deployment, so plan camera rollouts in pairs if budget allows.
Deployment Considerations:
- Depth Clearance: The hood adds 60–80mm to the camera assembly. Tight soffit mounts, recessed gang boxes, or dense bracket clusters can conflict. Measure once before ordering — retrofit removal is tedious.
- Model Specificity is Absolute: The TP3823-E mounts only on M32 and P32 cameras. Attempting to fit this on an M20, M10, or Q-series camera will fail mechanically. Verify model against the Axis datasheet or camera label before purchasing.
- Paint or Custom Color: The TP3823-E is black only. If your system requires white or gray housings for aesthetic uniformity or architectural matching, this product will be a visual outlier. Plan color schemes before committing to purchasing multiple units.
Deploy the 02629-001 in any outdoor M32/P32 installation that faces sustained direct sunlight or frequent rain. This is table-stakes for warehouse perimeters, parking garages with skylights, and loading docks facing south or west. Skip it only if your cameras are already in enclosed housings or you have sufficient budget for semi-annual lens cleaning and thermal management.
