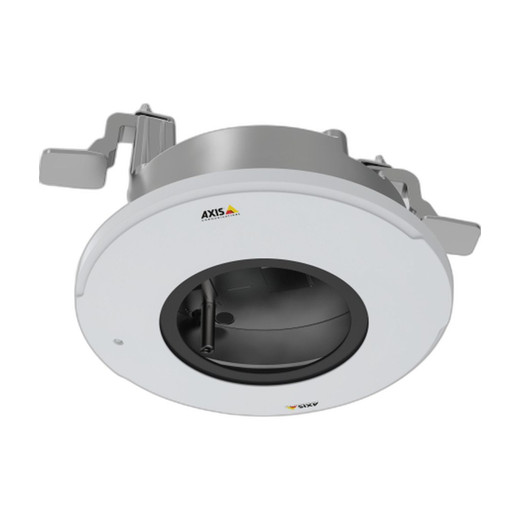

Axis 01757-001 TP3201 Recessed Mount for Drop Ceilings
Overview
The Axis 01757-001 is a recessed mounting solution purpose-built for integrating surveillance cameras into suspended drop ceiling environments. Unlike surface mounts that hang visibly below the tile, the TP3201 recesses flush with the ceiling plane — a practical choice when aesthetics and concealment matter in office lobbies, retail spaces, or corporate facilities. The metal construction is rated for plenum spaces (air-handling areas), meaning it complies with building fire codes in climate-controlled ceiling cavities without requiring costly rework.
This mount supports both Axis IP cameras and optional internal microphone installation, letting you integrate two-way audio without surface-mounted conduit or exposed wiring. That flexibility reduces installation labor and maintains the clean ceiling line your architect designed for.
Key Features
- Recessed drop ceiling form factor: Sits flush within the tile cavity, eliminating the visual clutter of a hanging mount. Critical for spaces where sight lines matter — retail displays, conference rooms, executive areas.
- Metal construction with plenum rating: Fire-rated for spaces where air circulates through the ceiling cavity. Avoids the need for protective boxing or rerouting HVAC — a compliance and cost win on retrofit jobs.
- Supports optional AXIS Device Microphone A and B: The mount is wired for integrated audio without additional surface penetrations. Useful for loss-prevention monitoring in retail or two-way communication zones in warehouses.
- Conduit entries for flexible cable management: Pre-drilled openings accept standard conduit sizes, letting installers route camera and microphone cables through the ceiling plenum rather than exposed surface runs. Simplifies future moves or reconfiguration.
- Compatible with M32-LVE, P32-V, P32-LV, P33, P33-V, Q35-V, and Q35-LV camera series: A broad roster of Axis models — from compact 1080p domes to high-resolution box cameras — can mount to the 01757-001. Verify the exact model weight and form factor against the mount specification before purchase, but the range covers most mid-range Axis deployments.
Integration & Compatibility
The TP3201 mount works with any IP camera from the M32-LVE through Q35 series. This includes fixed domes, varifocal turrets, and compact box cameras — as long as the camera's mounting footprint matches the standard Axis bracket interface. Audio integration uses the optional AXIS Device Microphone A or B, both of which wire through the mount's internal conduit path. This design keeps the ceiling plane clean and reduces the number of separate penetrations your facilities team has to certify.
If you are planning a network upgrade alongside your camera installation, consult your PoE switch documentation to confirm adequate power availability. A PoE-fed camera pulling 13W at the ceiling requires sufficient budget on your switch's per-port output — usually not an issue on modern enterprise gear, but worth verifying on older or heavily loaded installations.
Deployment Considerations
The recessed design requires 3–4 inches of clearance above the drop ceiling tile for the mount body and camera. Verify your ceiling cavity depth before ordering; shallow plenums (common in retrofit jobs) may require a surface mount instead. Test fit the camera you intend to use — the mount accepts the standard Axis bracket, but heavy or oversized models may need additional support bracing.
For plenum-space certification, confirm with your local building official that the metal construction and rating meet local fire code. The mount is rated for plenum installation, but some jurisdictions require additional documentation or inspection — plan for this on commercial jobs.
When to Choose a Different Mount
If your ceiling cavity is less than 3 inches, if you need IP67 submersion protection, or if you require a pendant-style outdoor mount, consider an alternate form factor from the Axis mounting line. For exterior eaves or weather-exposed soffits, a wall-mount or pole-mount bracket rated for your climate zone is more appropriate than a drop-ceiling recessed solution.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 01757-001 (often searched as 01757 001) solves a real problem: integrating surveillance into finished commercial spaces without turning the ceiling into a cable spaghetti show. The plenum rating is the key spec here — it means the mount itself doesn't require additional fire-rated boxing, which saves material cost and installation time on retrofit projects. On a 50-camera rollout across multiple office suites, that adds up.
Technical Highlights:
- Plenum-rated metal construction: No additional fire-rated enclosure required. Saves roughly $40–80 per camera on material and labor versus boxing a standard mount. On large deployments, that's real budget relief.
- Flush recessed design: Integrates seamlessly with drop-ceiling aesthetics. Retailers and corporate tenants notice the difference — no dangling hardware breaking the ceiling line. Matters for lease negotiations and facility manager satisfaction.
- Integrated audio conduit: AXIS Device Microphone A/B support built into the mount's internal pathway. Eliminates the separate surface microphone bracket, reducing ceiling penetrations and complexity.
Deployment Considerations:
- Requires 3–4 inches of plenum depth. Verify cavity height before ordering — shallow or pre-wired plenums may reject this mount.
- Confirm local fire code acceptance with your AHJ (Authority Having Jurisdiction). Plenum rating is standard, but documentation requirements vary by region.
- Test-fit your selected camera model. The Axis P33 and Q35 series are straightforward; heavier box cameras may need supplemental support.
Deploy this mount when aesthetics and code compliance are equal priorities — corporate offices with exposed ceilings, retail spaces, and hospitality venues. If your ceiling cavity is shallow or your local codes require additional submersion protection, step back to a surface or wall-mounted alternative.
Frequently Asked Questions
Q: Is the Axis 01757-001 suitable for spaces with very shallow ceiling cavities?
A: No. The mount requires approximately 3–4 inches of clearance above the drop tile. If your plenum depth is less than 3 inches, a surface mount or wall-bracket alternative is necessary.
Q: Can I use the 01757-001 with any Axis camera?
A: The mount is designed for M32-LVE, P32-V, P32-LV, P33, P33-V, Q35-V, and Q35-LV series cameras. Verify your specific model's form factor and weight against the mount specification before purchase.
Q: Does the 01757-001 include audio wiring?
A: The mount supports optional AXIS Device Microphone A and B integration. Microphones are sold separately; the mount provides the internal conduit pathway to route audio cables discreetly.
Q: Is the 01757-001 plenum-rated for fire code compliance?
A: Yes. The metal construction is rated for plenum spaces (air-handling ceiling cavities). Confirm acceptance with your local building authority or AHJ before finalizing installation.
Q: What tools or additional hardware are required to install the mount?
A: Standard installation tools (drill, screwdriver, level) are typical. Consult the installation guide for specific fastener types and any supplemental bracing requirements for your camera weight.
