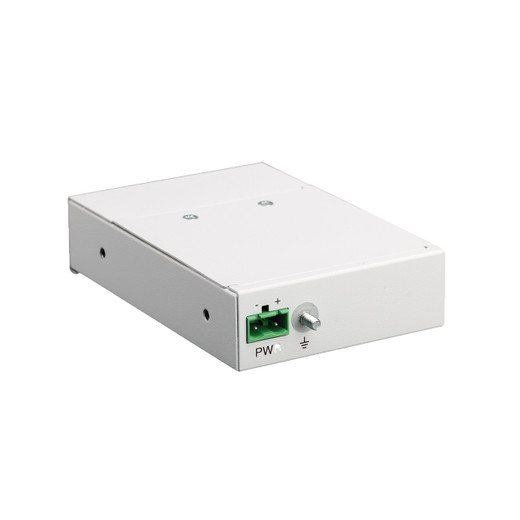

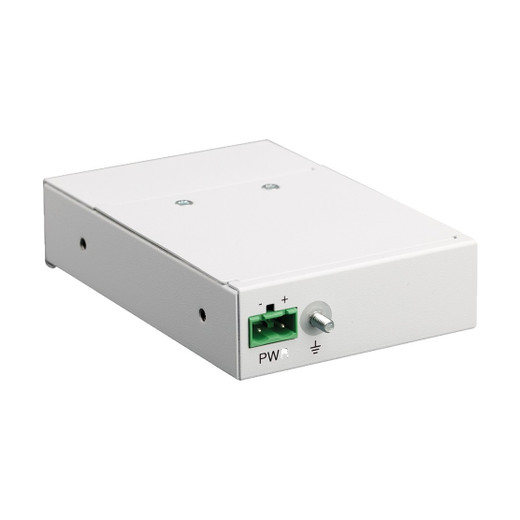

Axis T8604 Media Converter Switch

Axis T8604 Media Converter Switch

The Axis T8604 Media Converter Switch (SKU 5027-041) is a compact network accessory designed to extend IP surveillance system reach using fiber-optic connectivity. This dual-port converter bridges copper Ethernet and fiber networks, enabling reliable transmission of high-quality video and data over extended distances while maintaining network performance and security.

Key Features

• 2x RJ45 connectors (10/100 Mbps) for standard Ethernet connections
• 2x SFP connectors (100/1000 Mbps) for fiber optic or SFP-to-copper modules
• Compatible with all Axis network video products
• DIN Rail mount design for cabinet installation
• LED indicators for power and network status (4x)
• Low power consumption: 3.5 W maximum at 12.0-13.2 V DC
• Compact footprint: 150x100x30 mm (5.9x3.9x1.2 in)
• 3-year Axis warranty included

Technical Highlights

Built for industrial environments with an operating temperature range of -40°C to 75°C and humidity tolerance of 10-85% RH (non-condensing). The metal casing (White NCSS 1002-B) ensures durability for continuous cabinet operation. Full compliance with EMC, safety, and international standards including RoHS, REACH, CE, FCC Part 15, and AS/NZS certifications. Includes DIN Rail mount bracket and installation guide.

Applications

Ideal for integrating fiber-optic backbone networks into IP surveillance deployments, extending connectivity in large facilities, industrial sites, or environments where electromagnetic interference is a concern. Supports both multimode and single-mode fiber configurations through interchangeable SFP modules.
