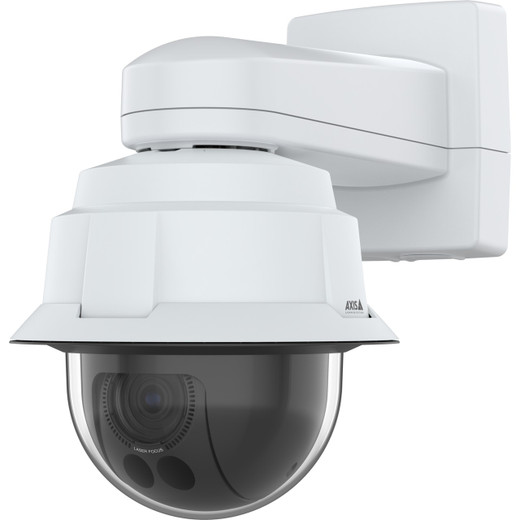

Axis Q6086-E 4MP PTZ Camera with 34x Optical Zoom - 03188-012

Axis 03188-012 4MP PTZ Camera with 34x Optical Zoom

The Axis 03188-012 is a professional-grade outdoor PTZ camera designed for demanding surveillance applications requiring extended zoom capability, extreme weather resistance, and intelligent video analytics. With 4MP resolution at 50/60 fps, IP66 weatherproofing, IK10 vandal resistance, and NEMA 4x/TS2 temperature certification, this camera operates reliably from -40°C to 74°C, making it ideal for mission-critical perimeter security, large-area outdoor monitoring, and facilities requiring continuous panoramic coverage in thermal extremes.

Key Features

• 4MP Resolution at 50/60 fps — High-sensitivity RGB sensor captures fine detail in daylight and low-light conditions with fluid motion tracking and minimal motion blur
• 34x Optical Quick Zoom with Laser Autofocus — Extended optical reach maintains image quality across the entire zoom range without manual adjustment or digital degradation
• Continuous 360° Pan Rotation — Unlimited panoramic sweep with no soft stops enables unrestricted monitoring and tracking across full compass headings
• H.265 Video Compression — Advanced codec reduces bandwidth and storage requirements while maintaining video quality
• Day/Night IR Capability — Integrated infrared illumination enables 24/7 surveillance in zero-light environments
• Deep Learning Analytics (DLPU) — On-board deep learning processing unit enables intelligent object detection and behavioral analysis without external servers
• Two-Way Audio — Integrated microphone and speaker support real-time communication and deterrent capabilities
• IP66 & IK10 Rating — Complete dust/water ingress protection and comprehensive vandal resistance meet demanding outdoor deployment standards
• PoE Power (802.3af) — Single cable installation simplifies deployment and reduces infrastructure costs

Technical Highlights

The 03188-012 combines mechanical durability with advanced optics. The 34x optical zoom with laser autofocus delivers consistent focus accuracy across temperature extremes and variable lighting conditions. NEMA 4x and NEMA TS2 ratings ensure operation in salt-spray, corrosive, and extreme temperature environments. H.265 compression minimizes bandwidth overhead while the DLPU provides edge-based analytics for motion detection, people counting, and intrusion detection without server dependency. Two-way audio and PoE power simplify installation in remote locations where power infrastructure may be limited.

Applications

• Perimeter security and fence-line monitoring
• Large parking lot and open-area surveillance
• Critical infrastructure protection (utilities, transportation hubs)
• Port and logistics facility coverage
• Coastal and corrosive-environment deployments
• Campus and industrial facility monitoring

VMS Compatibility

Full ONVIF compatibility ensures integration with industry-standard video management systems. Native support for Axis Camera Station and Milestone XProtect enables seamless multi-camera deployments and centralized monitoring workflows.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The 03188-012 is engineered for integrators and security teams managing large outdoor areas with extreme environmental constraints. The continuous 360° pan and 34x optical zoom eliminate the need for multiple fixed cameras, reducing total cost of ownership despite the premium price point. Laser autofocus ensures consistent image quality across temperature swings and humidity changes that degrade standard motorized focus systems.

The DLPU deep learning processor provides significant operational advantage by enabling object classification and behavioral analytics at the edge, eliminating bandwidth-intensive streaming of raw video to central servers. IP66/IK10 and NEMA ratings provide confidence in sub-zero and high-heat deployments where standard PTZ cameras fail. For integrators, the PoE power requirement simplifies power distribution and the ONVIF/Milestone compatibility ensures predictable multi-vendor workflows.

Primary consideration: verify PoE budget on backbone infrastructure, as 802.3af may require power injectors on longer cable runs.
