ATEN CE824 HDMI KVM Extender Remote Unit
Overview

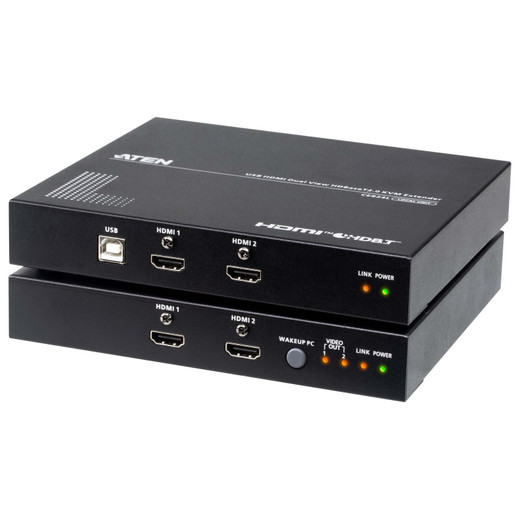

The ATEN CE824 is the remote unit component of the CE824 HDMI KVM extender system, designed for deployments where the workstation or source equipment must be located at a distance from the user console. The CE824 connects to its paired local unit via a single Cat5e/Cat6 cable terminated with an RJ-45 connector, delivering up to 1920 x 1200 @ 60 Hz (with Reduced Blanking) to the remote display — enough resolution for dual-monitor medical workstations, control room consoles, or rack-mounted AV setups that need full WUXGA output at the operator station. Four USB 2.0 Type-A ports on the remote unit let you connect keyboards, mice, and peripherals locally without running USB cabling back to the source rack. The unit includes a wakeup pushbutton for remote power-on signaling and a slide switch for firmware upgrades, keeping maintenance accessible without opening the rack bay.
Compatibility
The CE824 remote unit pairs exclusively with the ATEN CE824 local unit as part of the CE824 KVM extender set. It is not a standalone product and will not function without its corresponding local transmitter. The RJ-45 link interface is compatible with standard Cat5e or Cat6 structured cabling infrastructure. The HDMI output supports displays and monitors capable of accepting 1920 x 1200 @ 60 Hz (Reduced Blanking), including WUXGA-class professional monitors common in control room and broadcast environments. For ATEN KVM extender catalog compatibility across other resolutions or transmission distances, verify the local unit model before ordering. If your environment requires a higher-density KVM switching architecture or integration with a broader AV over IP distribution system, evaluate ATEN's matrix and over-IP extender lines instead.
Installation Notes
Operating humidity must remain between 0–80% RH, non-condensing — standard for enclosed equipment rooms and conditioned control spaces, but not suitable for unconditioned or outdoor enclosures. The rack-mount form factor follows ATEN's LxWxH dimensional convention for rack products; verify mounting rail compatibility with your specific rack before installation. The firmware upgrade slide switch is located on the unit body; consult the KVM extender installation guide (ce824-user-manual-w.pdf, updated 2026-04-22) for the correct firmware procedure before powering the unit in a live environment. A second HDMI output connector (orange-coded, quantity 2) is present on the unit — confirm your cabling plan accounts for both outputs if your console requires dual-display configuration. No special tooling is required for standard rack installation beyond common rack-mounting hardware.
