ASUS PN51-S1-BB3000XTD AMD Ryzen 3 5300U Barebone Mini PC

Overview

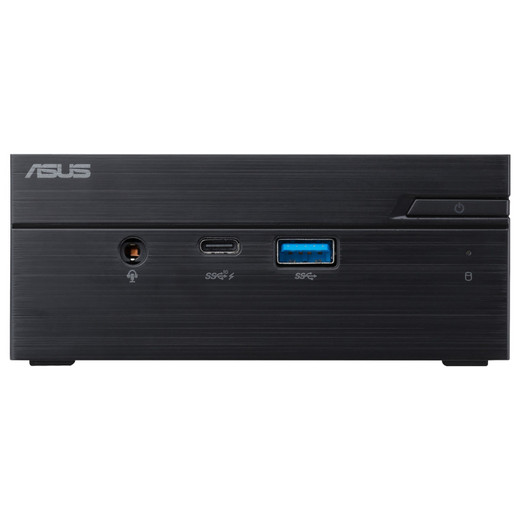

The ASUS PN51-S1-BB3000XTD is a barebone mini PC built around AMD's Ryzen 3 5300U — a quad-core, 8-thread processor that hits 2.6 GHz base clock with Radeon integrated graphics on-die. At 3.40 lb and 6.89 × 11.23 × 2.67 inches, it slots cleanly into rack enclosures or mounts behind a display without consuming meaningful footprint. The barebone configuration means you supply your own RAM and storage, letting you spec exactly the memory density and drive type the deployment demands rather than paying for pre-installed components you may not need.

For integrators deploying compact edge compute nodes in access control head-end closets, VMS workstations, or kiosk enclosures, the PN51 series from the ASUS commercial mini PC lineup offers a proven Zen 3 architecture baseline without the bulk of a tower or the thermal compromises of a stick-form device.

Key Features

• AMD Ryzen 3 5300U (Zen 3, 4C/8T, 2.6 GHz): The Ryzen 3 5300U is a Zen 3-generation APU — not a rebadged Zen 2 part. That matters for VMS clients and video analytics workloads where IPC improvements translate directly to smoother decode of multiple H.265 streams simultaneously. Four cores with eight threads handles concurrent camera decode, local recording, and a management UI without thrashing.
• Dual SO-DIMM slots, up to 32 GB: Two slots means you can start with a single 8 or 16 GB module and expand later without replacing anything. The 32 GB ceiling covers even memory-hungry VMS installations running multiple analytics plugins. Populate both slots in matched pairs to enable dual-channel mode for better integrated GPU throughput — relevant when the Radeon graphics are driving 4K display output.
• M.2 NVMe + 2.5-inch dual storage: NVMe on the M.2 slot delivers the OS and application load times of a proper SSD without consuming the 2.5-inch bay. That second bay stays free for a surveillance HDD or a large-capacity SSD dedicated to local video retention — a clean split between fast OS drive and high-capacity recording storage without adding USB-attached drives.
• NVMe support confirmed: Not all M.2 slots support NVMe — some are limited to SATA M.2. The PN51-S1-BB3000XTD explicitly supports NVMe, so you are not constrained to slower SATA speeds on the primary drive. For a VMS recording node writing continuous streams, NVMe write endurance and throughput headroom matters.
• AMD Radeon integrated graphics: The on-die Radeon GPU handles display output without a discrete add-in card — keeping power draw low and the chassis compact. It is adequate for driving one or two monitors in a VMS operator workstation scenario. If the deployment requires driving a video wall or running GPU-accelerated analytics, plan for an external GPU enclosure or a different platform; no discrete GPU slot is present.
• Trusted Platform Module (TPM): TPM is a hard requirement for Windows 11 and for enterprise endpoint management tools that enforce measured boot and disk encryption. Having TPM built in means the PN51-S1-BB3000XTD meets BitLocker and device attestation requirements out of the box — important in deployments where the machine sits in a semi-public or physically accessible location like a lobby AV rack.
• Compact chassis: 6.89 × 11.23 × 2.67 in, 3.40 lb: The depth of 2.67 inches fits standard mini PC VESA mount adapters and shallow rack shelves. At 3.40 lb it can be bracket-mounted behind a monitor or on the back of a rack door without structural concerns. Verify your enclosure's VESA pattern compatibility — the PN51 uses a standard 75 × 75 mm or 100 × 100 mm mount pattern typical of the PN series.
• No optical drive: Expected in this form factor. OS deployment is via USB — plan accordingly. For enterprise environments this is standard; just confirm your imaging workflow supports USB boot before deployment.

Integration and Compatibility

The PN51-S1-BB3000XTD (often searched as PN51 S1 BB3000XTD) is a barebone unit — it ships without RAM and storage pre-installed. Before deployment, confirm your memory and storage selections: DDR4 SO-DIMM modules are required (not DDR5), and the M.2 slot accepts 2280 form factor NVMe drives. The 2.5-inch bay supports both HDD and SSD formats up to standard 9.5 mm height.

For VMS and NVR software installations, the Ryzen 3 5300U handles client decode for most major platforms including Milestone XProtect, Genetec Security Center, and Avigilon Control Center in standard configurations — verify channel count and analytics load against each platform's published hardware recommendations. The AMD Radeon integrated graphics support hardware-accelerated H.265 decode, which reduces CPU load when the VMS is configured to use GPU-assisted playback.

Connectivity planning: the PN51 series typically provides USB-A, USB-C, HDMI, and DisplayPort outputs along with a wired GbE port — verify the specific rear-panel layout against the ASUS product page before specifying for a deployment that requires dual-display or USB-C device connectivity. A PoE switch in the same rack handles camera-side power and data; the PN51-S1-BB3000XTD itself connects via standard GbE and requires a local power adapter (included or sourced separately depending on bundle configuration).

For enterprise endpoint management, the built-in TPM pairs with access control and endpoint security platforms that require device attestation. Windows 11 Pro is installable without hardware modification — TPM and Secure Boot prerequisites are met natively.

Frequently Asked Questions

Q: Does the PN51-S1-BB3000XTD come with RAM and storage pre-installed?

A: No. The PN51-S1-BB3000XTD is a barebone unit. It ships with the processor, chassis, and motherboard, but requires you to supply DDR4 SO-DIMM memory (up to 32 GB across two slots) and your own M.2 NVMe and/or 2.5-inch drive. This lets you spec exactly the memory and storage capacity your deployment requires.

Q: What type of RAM does the PN51-S1-BB3000XTD require?

A: DDR4 SO-DIMM. There are two slots supporting a maximum of 32 GB total. Installing matched pairs in both slots enables dual-channel operation, which improves integrated graphics throughput for display-intensive workloads.

Q: Can the PN51-S1-BB3000XTD run NVMe drives?

A: Yes. The M.2 slot supports NVMe (not limited to SATA M.2), so you can install a full-speed NVMe SSD for the OS and applications. The separate 2.5-inch bay can then hold a high-capacity HDD or SSD for local data or video storage.

Q: Is the PN51-S1-BB3000XTD compatible with Windows 11?

A: Yes. The unit includes a built-in Trusted Platform Module (TPM), which is a hard requirement for Windows 11. Secure Boot is also supported. Install your preferred Windows 11 edition via USB after populating memory and storage.

Q: What are the physical dimensions and weight of the PN51-S1-BB3000XTD?

A: 6.89 × 11.23 × 2.67 inches (L × W × H) and 3.40 lb. It fits standard VESA bracket mounts and shallow rack shelves, and is light enough for behind-display or rack-door mounting.

Q: Does the PN51-S1-BB3000XTD support a discrete GPU?

A: No. The unit uses AMD Radeon integrated graphics built into the Ryzen 3 5300U processor. There is no discrete graphics card and no expansion slot for one. For GPU-accelerated analytics or multi-display video walls, a different platform would be required.

Karl Wilson

The PN51-S1-BB3000XTD is one of the more practical edge compute choices I have spec'd for VMS client and head-end deployments — specifically because the Ryzen 3 5300U is a genuine Zen 3 part, not a budget re-spin. The 4-core/8-thread configuration at 2.6 GHz base handles multi-stream H.265 decode without choking, and the barebone format means you are not stripping out pre-installed RAM to replace it with the density the job actually needs.

Technical Highlights:

• Dual SO-DIMM, 32 GB max: Two slots with a 32 GB ceiling covers the majority of VMS workstation requirements. Start with 16 GB and expand in-field without full unit replacement — useful when budgets phase hardware purchases.
• M.2 NVMe + 2.5-inch bay: The NVMe slot handles OS/app drive duties at full SSD speed; the 2.5-inch bay absorbs a surveillance HDD for local clip retention. Clean logical separation without external drives hanging off USB ports.
• TPM built-in: Non-negotiable for Windows 11 deployment and enterprise endpoint attestation. The PN51-S1-BB3000XTD clears that requirement without any add-on module — relevant for any deployment where BitLocker or device management policy is enforced.

Deployment Considerations:

• This is a barebone — budget time for memory and storage sourcing. Confirm DDR4 SO-DIMM availability in your preferred density before committing to a deployment date; DDR5 modules will not seat in this platform.
• No discrete GPU means GPU-accelerated video analytics (deep learning inference on-device) is limited to what the Radeon integrated graphics can handle. For heavier analytics workloads, verify the VMS vendor's minimum GPU spec before deploying on this platform.

Best fit: small-to-medium VMS client workstations, access control head-end nodes, and kiosk or digital signage enclosures where physical footprint is constrained and the workload stays within 4–8 concurrent H.265 streams without GPU-intensive analytics.
