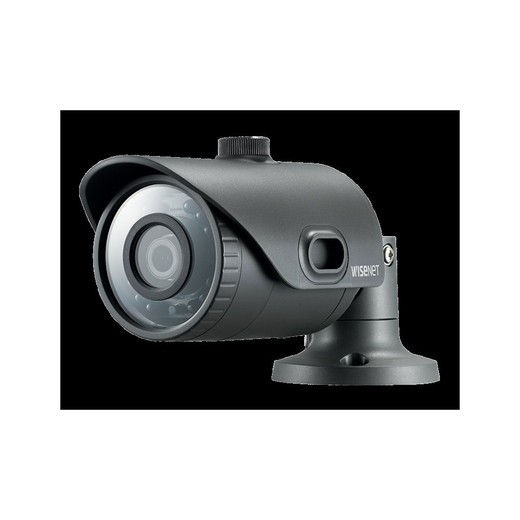

Hanwha AM07-006576A SNO-L6013R Front Assembly

Hanwha AM07-006576A SNO-L6013R Front Assembly

The Hanwha AM07-006576A is a replacement front assembly component for the SNO-L6013R 2MP weatherproof IR network camera. Designed for field maintenance, repair, and component refresh cycles, this front-end assembly enables seamless integration and restoration of existing SNO-L6013R camera deployments in outdoor and weather-exposed environments.

Key Features

• 2MP full HD resolution (1920 × 1080) at 30 fps
• IP66 weatherproof rating for outdoor mounting
• Integrated IR illumination with 65-foot range
• 3.6mm fixed lens with 86.5° horizontal field of view
• Day/night operation with true low-light performance (0.15 Lux color; 0 Lux with IR)
• Motion detection and tampering alarm analytics
• H.264 and MJPEG video compression support
• Hallway view rotation (90°/270°)
• Board-type mount design

Technical Specifications

• Image Sensor: 1/2.9" 2.19M CMOS
• Compression: H.264, MJPEG
• Frame Rate: 30 fps @ all resolutions
• IR Range: 65 ft (20m) with LED illumination
• Minimum Illumination: 0.15 Lux (color, 1/30sec F1.8); 0 Lux (B/W with IR on)
• Audio Support: Line in
• Dynamic Range: SSDR (Samsung Super Dynamic Range)

Applications

Ideal for facility maintenance teams, system integrators, and security operators managing SNO-L6013R deployments. Use this front assembly for field repairs, component replacement, and system refresh cycles in outdoor perimeter monitoring, parking lot surveillance, and weather-exposed facility monitoring scenarios.
