APC by Schneider Electric SRT002 Concise Descriptor

Overview

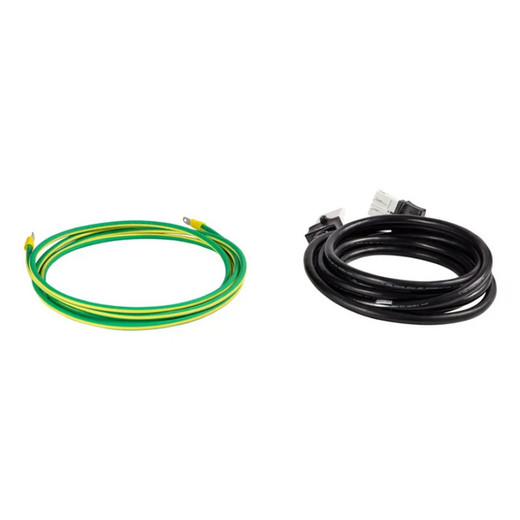

The APC by Schneider Electric SRT002 is a 15-foot (4.57 m) battery extension cable designed to connect external battery packs to compatible APC Smart-UPS 5/6KVA systems. This cable allows for flexible placement of battery modules, enabling you to expand runtime capacity beyond the UPS unit's immediate vicinity. It is engineered to handle a rated voltage of 192 VDC, ensuring safe and efficient power transfer for critical loads.

Compatibility

This extension cable is specifically designed for use with APC Smart-UPS 5/6KVA models that support external battery packs requiring a 192 VDC connection. It is intended to extend the reach of APC's 192VDC external battery solutions, facilitating custom power protection deployments where the UPS and battery cabinets are not co-located.

Installation Notes

Ensure the UPS system and all connected battery packs are powered off and disconnected from AC mains before installing or disconnecting the SRT002 cable. The cable's connectors are keyed to prevent incorrect insertion. Verify that the cable is securely seated at both the UPS and the external battery pack interface to maintain a reliable connection and prevent voltage drops. The 15-foot length provides significant flexibility but should be routed to avoid physical damage or excessive strain.
