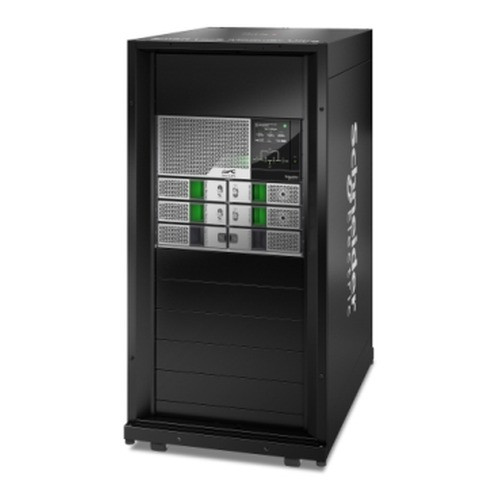

APC Smart-ups Modular Ultra 10KW Scalable to 15KW N+1 Redundant Tower 208/240V - SRYL10K15XLT24

APC by Schneider Electric SRYL10K15XLT24 10KW Scalable Modular Tower UPS

Overview

The APC Smart-UPS Modular Ultra SRYL10K15XLT24 is a 10KW tower UPS designed for facilities that need power protection today and room to grow without replacing hardware tomorrow. Starting at 10KW and scaling to 15KW, it supports N+1 redundancy — meaning one module can fail and the load stays protected, which is the difference between a planned maintenance window and an unplanned outage in a server room or comms closet. At 427.7 lb and 47.2 inches tall, this is a permanent installation rated for commercial UPS deployments in data centers, network operations centers, and critical infrastructure environments. The pure sine wave output ensures compatibility with sensitive loads — enterprise servers, storage arrays, and network switching gear that reject the modified sine wave cheaper UPS units produce.

Key Features

• 10KW Scalable to 15KW: The modular architecture lets you commission at 10KW and expand capacity to 15KW as your load grows — no forklift upgrade, no new UPS procurement cycle. For facilities phasing in additional server racks or edge compute nodes, that scalability compresses the total cost of ownership across a 5–7 year refresh cycle.
• N+1 Redundancy Architecture: Built-in N+1 support means the system keeps running through a single module failure. In practice, this eliminates the common tradeoff between maintenance access and uptime — technicians can hot-swap a failed module without dropping the load.
• Pure Sine Wave Output: The sine wave output waveform is not a negotiable spec for enterprise equipment. Active power factor correction (PFC) power supplies in servers and storage — which are standard across Dell, HPE, Lenovo, and similar platforms — require pure sine wave input to regulate correctly. Modified sine wave UPS units cause these PSUs to run hot, fail early, or reject input entirely. The SRYL10K15XLT24 avoids that class of problem entirely.
• Lithium-Ion Battery Technology: Li-Ion chemistry carries a longer service life and faster recharge compared to valve-regulated lead-acid (VRLA) batteries, which have dominated UPS deployments for decades. The practical benefit: fewer battery replacement cycles over the UPS service life, reduced weight per kilowatt-hour of stored energy, and a smaller physical footprint inside the tower enclosure.
• 208/240V Input Compatibility: Accepts 208V AC input — the standard distribution voltage on 3-phase panels in North American commercial facilities. This makes it a direct fit for dedicated UPS branch circuits off a 208V bus without step-up or step-down transformers.
• 120V AC Output: Delivers 120V AC output, supporting standard single-phase loads at North American line voltage. Useful for mixed environments where 120V IT equipment and peripherals need protected power from the same UPS that feeds higher-voltage infrastructure.
• Tower Form Factor with Defined Physical Envelope: At 47.2 inches tall and 427.7 lb, the SRYL10K15XLT24 is engineered for floor-standing installation in equipment rooms. The black and silver finish is consistent with standard data center and comms room aesthetics. Verify floor load ratings before placement — 427.7 lb concentrated on a UPS footprint can exceed raised-floor tile limits in older facilities.

Integration & Compatibility

The 208V input aligns with standard North American commercial electrical distribution, making the SRYL10K15XLT24 compatible with dedicated UPS circuits fed from a 3-phase 208/120V distribution panel. The 120V output feeds single-phase 5-15 and 5-20 receptacle loads typical in mixed IT environments. For facilities evaluating power protection infrastructure, the scalable modular design supports a phased deployment approach — deploy at 10KW, qualify the installation, then expand to 15KW without new hardware. Integration with APC by Schneider Electric's EcoStruxure IT or Network Management Cards (where applicable to this platform) enables SNMP-based monitoring and remote management, though specific network management accessory compatibility should be confirmed against the manufacturer's current compatibility matrix. For larger deployments involving multiple UPS units, parallel or tiered architectures, consult pre-sales engineering to model load distribution and runtime requirements before committing to a configuration.

Frequently Asked Questions

Q: What is the difference between the 10KW base configuration and the 15KW scalable capacity on the SRYL10K15XLT24?

A: The SRYL10K15XLT24 ships with 10KW of active UPS capacity and supports expansion to 15KW through the modular architecture — meaning additional power modules can be added without replacing the base unit. This is designed for facilities whose power load is expected to grow over time.

Q: Does the SRYL10K15XLT24 support N+1 redundancy?

A: Yes. The SRYL10K15XLT24 is specified with N+1 redundant architecture, which means one module can be taken offline for service or fail without dropping the protected load — provided the remaining capacity covers the active load.

Q: What battery type does the SRYL10K15XLT24 use, and what are the maintenance implications?

A: The SRYL10K15XLT24 uses Lithium-Ion (Li-Ion) battery technology. Li-Ion batteries typically offer a longer service life and faster recharge cycles compared to traditional VRLA lead-acid batteries, which can reduce the frequency of battery replacement maintenance events over the unit's service life.

Q: Is the SRYL10K15XLT24 suitable for sensitive enterprise servers and storage arrays?

A: Yes. The SRYL10K15XLT24 produces a pure sine wave output waveform, which is required for compatibility with active PFC power supplies found in most enterprise servers, storage systems, and networking equipment. Modified sine wave UPS units are not appropriate for these load types.

Q: What are the installation space and floor load requirements for the SRYL10K15XLT24?

A: The SRYL10K15XLT24 stands 47.2 inches (1,198 mm) tall and weighs 427.7 lb (194 kg). It is a floor-standing tower unit. Verify that your equipment room floor — particularly raised access flooring — is rated to support the concentrated load before installation.

Q: What input voltage does the SRYL10K15XLT24 require?

A: The SRYL10K15XLT24 requires 208V AC input, which corresponds to the standard single-phase or line-to-line voltage available from a 3-phase 208/120V distribution panel common in North American commercial facilities. A dedicated branch circuit is recommended.

Marty Allison

The detail I keep coming back to on the SRYL10K15XLT24 is the N+1 redundancy combined with the modular scalability — you're not buying a fixed-capacity appliance, you're buying a power infrastructure platform that can absorb a module failure and still keep a 10KW load alive, then grow to 15KW when the next rack phase lands. That combination is genuinely uncommon at this price tier in a tower form factor.

Technical Highlights:

• Li-Ion Battery Chemistry: Longer cycle life and faster recharge versus VRLA — in a 10KW+ UPS that may run through multiple discharge cycles per year, that translates to fewer planned battery replacement windows and lower total maintenance cost over a 7–10 year deployment horizon.
• Pure Sine Wave Output: Non-negotiable for any load running active PFC power supplies — which covers virtually all current-generation enterprise servers and storage. The SRYL10K15XLT24's sine wave output means you're not introducing PSU stress or compatibility issues at the power layer.
• 427.7 lb Tower Installation: The physical weight is a real pre-installation constraint. At 194 kg concentrated on a tower footprint, raised-floor tile ratings (typically 1,000–2,000 lb/sq ft, but often lower in older builds) must be verified before the unit ships to the data floor.

Deployment Considerations:

• The 208V AC input requires a dedicated branch circuit from a 208/120V 3-phase panel — confirm your electrical infrastructure can deliver this before specifying the SRYL10K15XLT24; a 120V-only facility will need a step-up transformer or panel upgrade.
• At 47.2 inches tall, clearance planning matters: factor top-of-unit service access for module hot-swap into your equipment room layout, particularly in tight NOC or IDF environments with low overhead cable trays.

This unit is the right specification for a mid-size enterprise equipment room or colocation cage where the load today is 8–10KW, the 3-year roadmap pushes past 12KW, and a single module failure cannot be allowed to drop production systems — the N+1 architecture and Li-Ion serviceability make it a practical fit for that exact scenario.
