APC by Schneider Electric SMTL750RM2UC Smart-UPS Line-Interactive Rack/Tower UPS
Overview
The APC by Schneider Electric SMTL750RM2UC is a 750VA/600W line-interactive UPS built around a lithium-ion battery in a 2U rack/tower convertible form factor. Designed for small server rooms, network closets, and edge deployments where space is tight and runtime reliability matters, this unit delivers pure sine wave output — the only waveform type that active PFC power supplies in modern servers, NVRs, and network equipment actually require. If you've had equipment behave erratically on a modified sine wave UPS, this is the spec to focus on.
At 96% efficiency in line mode, the SMTL750RM2UC wastes almost no energy during normal operation — meaningful when the unit runs 24/7 and electricity costs compound across a multi-site deployment. The lithium-ion chemistry also changes the maintenance calculus significantly compared to traditional VRLA battery UPS units: longer calendar life, lighter weight, and no periodic wet-cell replacement cycles to schedule.
Explore the full APC by Schneider Electric UPS and power protection lineup for complementary models in this family.
Key Features
- 750VA / 600W Pure Sine Wave Output: Delivers clean sinusoidal AC even on battery — essential for active PFC server PSUs, NVR appliances, and managed switches that will fault or shut down on stepped approximations. The 600W real-power rating is the number that actually sizes your load; VA is the apparent-power ceiling.
- Line-Interactive Topology with 82–144V Input Range: The automatic voltage regulation (AVR) stage corrects input sags down to 82V and surges up to 144V without switching to battery — protecting connected equipment from brownouts that are endemic in commercial buildings without exhausting battery capacity on nuisance events. That 62V correction window is wider than most entry-level UPS units in this wattage class.
- 6ms Transfer Time: When the unit does switch to battery, the 6ms transition is fast enough that virtually all IT equipment rides through without a glitch. Double-conversion UPS units achieve 0ms, but at the cost of efficiency; 6ms line-interactive is the accepted standard for servers and network gear that aren't on true critical-power circuits.
- Lithium-Ion Battery Chemistry: Compared to VRLA gel batteries, lithium-ion cells tolerate higher ambient temperatures, hold charge longer during storage, and have a significantly longer service life — reducing the operational overhead of battery replacement in hard-to-access rack deployments. Lighter weight also matters when the 2U unit ships to a remote site or mounts in a wall-hung rack.
- 96% Efficiency in Line Mode: A UPS running at 96% efficiency dissipates very little heat and draws minimal excess current from the branch circuit — an advantage in high-density environments where every watt of heat load matters for CRAC capacity planning. Most line-interactive units at this capacity class run 88–92%; 96% is meaningfully better.
- 680J Surge Energy Rating: The integrated surge suppressor absorbs up to 680 joules of transient energy — sufficient for typical utility-side switching events and nearby lightning strikes. Combine with a whole-facility surge panel for sites in high-lightning-exposure geographies.
- 6 × NEMA 5-15R Outlets: All six outlets are on a single NEMA 5-15P input cord, which fits any standard 15A branch circuit without a special receptacle. For rack deployments where you're powering a mix of 1U switches, NVR appliances, and patch panel gear, six individually protected outlets provides enough ports to avoid a secondary PDU in most small deployments.
- Emergency Power Off (EPO) Support: The EPO circuit allows a remote kill switch — required by NFPA 75 and NEC in many commercial data room installations. If your local AHJ requires EPO, this unit covers that requirement without a separate accessory.
- Output THD ≤ 5%: Low total harmonic distortion on the output protects sensitive electronics and keeps the power factor of connected loads stable. High THD on UPS output is a common source of unexplained equipment failures and premature PSU degradation.
- USB Connectivity: The onboard USB port enables direct integration with host operating systems and UPS management software for graceful shutdown sequencing — critical for NVR appliances and servers that need to flush write buffers before power loss.
- Audible Alarm System: Three-mode alarms (on-battery, low battery, overload) give local operators immediate situational awareness without requiring a network management card for basic alerting.
Integration and Compatibility

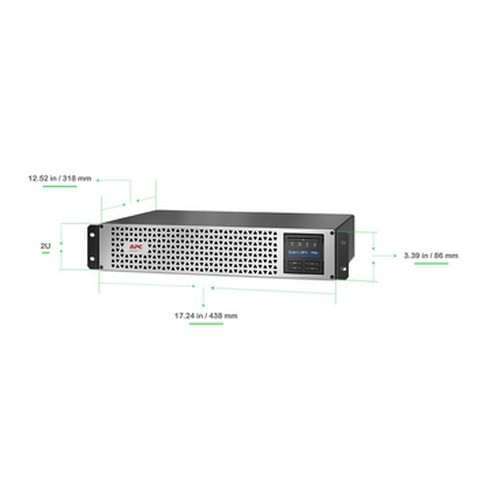

The SMTL750RM2UC ships with a NEMA 5-15P input plug and six NEMA 5-15R output receptacles, making it compatible with standard North American 120V/15A branch circuits — no electrician work required in most installations. The 2U rack/tower convertible chassis supports both standard 19-inch EIA rack mounting and freestanding tower orientation, giving you flexibility when the final install location isn't confirmed at procurement time.
USB host communication pairs with APC PowerChute software (sold separately) or third-party UPS management tools that support USB HID UPS protocol. This is the standard path for graceful shutdown of network video recorders and servers. For SNMP-based management across a large site, a network management card accessory is required — the base unit does not include a NIC.
The unit's 50/60Hz input frequency auto-sensing makes it deployable in facilities with non-standard generator outputs that fluctuate between frequencies during startup and load transitions.
Consider pairing with a managed rack PDU if you need per-outlet switching or metering beyond what the SMTL750RM2UC's fixed outlet bank provides. For broader power protection planning across a security or IT deployment, review the power planning and UPS sizing guide.
Frequently Asked Questions
Q: Does the SMTL750RM2UC output a pure sine wave when running on battery?
A: Yes. The SMTL750RM2UC produces a pure sine wave output both in line mode and on battery. This is required for active PFC power supplies found in modern servers, NVRs, and network switching equipment — a modified sine wave UPS can cause these devices to fault or shut down under load.
Q: What is the real power (watt) capacity of the SMTL750RM2UC?
A: The unit is rated at 600 watts (0.75 kVA). When sizing your load, use the watt figure — not the VA rating — as your primary constraint. Ensure your connected load stays below 600W with headroom for startup surge currents.
Q: Can the SMTL750RM2UC be mounted in a standard 19-inch rack?
A: Yes. The SMTL750RM2UC occupies 2U in a standard 19-inch EIA rack. It also converts to a tower orientation for freestanding deployment — useful when rack space isn't available at the installation site.
Q: Does the SMTL750RM2UC support Emergency Power Off (EPO)?
A: Yes. EPO is supported, allowing integration with a remote kill switch. This is often required by NFPA 75 and NEC code in commercial data room and server room installations. Verify your local AHJ requirements before finalizing the installation design.
Q: What input voltage range does the SMTL750RM2UC handle without switching to battery?
A: The AVR stage handles input voltages from 82V to 144V without engaging the battery. Below 82V or above 144V, the unit transfers to battery to protect connected loads. This range covers most brownout and overvoltage conditions common in commercial utility power.
Q: How does the SMTL750RM2UC communicate with a connected server or NVR for graceful shutdown?
A: The unit includes a USB port that supports UPS HID protocol, enabling communication with host operating systems and UPS management software such as APC PowerChute for automated graceful shutdown sequences during extended outages.
The spec I always point integrators to first on the SMTL750RM2UC is the 96% efficiency rating in line mode — that's not a rounding difference from the 88–92% you'll see on most competing line-interactive units at this capacity. Over a full year of 24/7 operation, that gap translates to real heat reduction in the rack and measurable savings on the branch circuit. For a small NVR room or network closet running a handful of units, it adds up.
Technical Highlights:
- 82–144V AVR Input Range: A 62V correction window means the unit handles browndowns to 82V and surges to 144V entirely in AVR mode — battery stays reserved for genuine outages, not nuisance voltage events that are common in older commercial buildings.
- 6ms Transfer Time + Pure Sine Wave: Active PFC server PSUs and NVR appliances need sine wave output and a transfer time fast enough to bridge without a power interruption. Six milliseconds is the accepted threshold; this unit meets it without the cost or efficiency penalty of double-conversion.
- 680J Surge Rating: Adequate for utility switching transients. Not a substitute for facility-level surge protection in high-exposure sites — treat it as last-line protection at the device level, not first-line.
Deployment Considerations:
- The USB management port enables graceful shutdown integration with most NVR OS platforms via HID UPS protocol — wire this up before commissioning, not after the first outage. APC PowerChute or open-source NUT are the standard paths.
- Six NEMA 5-15R outlets cover most small deployments, but there's no per-outlet switching or metering on the base unit. If you need load-shed sequencing or per-outlet power monitoring, you'll need a network management card plus a managed PDU downstream.
This unit fits cleanly in a small-to-mid surveillance closet running an NVR, a PoE switch, and a patch panel — a load profile that typically lands in the 300–450W range, well within the 600W real-power ceiling with runtime headroom to spare for graceful shutdown before battery depletion.
