APC Rack PDU 9000 Switched Zerou 32A - APDU9953

APC by Schneider Electric APDU9953 Rack PDU 9000 Switched Zero U 32A

Overview

The APC by Schneider Electric APDU9953 is a Switched Zero U rack power distribution unit rated for 32A at 200–240V — the right call for high-density equipment racks in data centers, server rooms, and security operations infrastructure where per-outlet switching control and vertical space efficiency matter. Unlike traditional 1U or 2U PDUs that consume rack units your equipment could occupy, the APDU9953 mounts vertically along the side of the rack, preserving every usable rack unit for active gear. If your deployments involve dense NVR stacks, edge compute nodes, or networked security appliances that benefit from remote outlet-level power cycling, this is the class of PDU to evaluate.

Switched PDUs at the 32A level are a genuine operational tool — not just a power strip with a network port. The ability to remotely reboot a locked-up appliance or sequentially power up equipment after a planned outage without a physical site visit has real value in distributed security infrastructure where a technician dispatch costs time and money.

Key Features

• Switched PDU Architecture: Per-outlet switching means you can remotely cycle power on individual devices — critical when a camera controller, NVR, or access panel locks up at 2 AM at a remote site. No truck roll required for a hard reboot.
• 32A Input at 200–240V: Rated for 32A input via IEC 60309 2P+E connector, handling the full power demands of a dense rack loaded with PoE switches, NVRs, and edge servers. The 200–240V input range covers both 208V three-phase legs common in US data centers and 230V standard in international deployments.

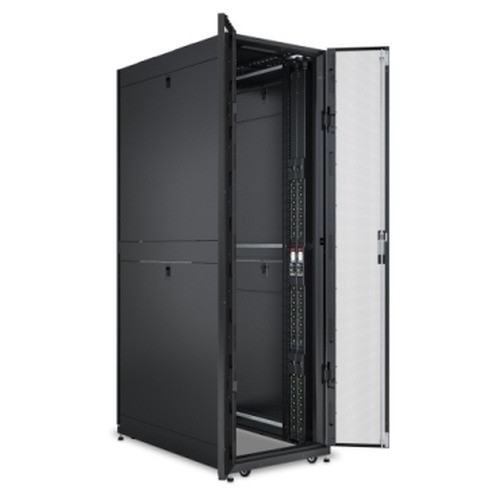

• Zero U Vertical Mounting: The APDU9953 installs along the side of the rack — not in a rack unit — so you lose zero usable rack space to power distribution. In a 42U rack already under pressure from switches, servers, and patch panels, that matters more than it sounds.
• 3.05m Cord Length: The 3.05-meter input cord gives you genuine flexibility in where the PDU connects to your UPS or facility power feed, reducing the need for extension infrastructure inside the cabinet.
• 200–240V Output Range: Output voltage mirrors the input range (200–240V), supplying connected devices with stable voltage matched to your facility's distribution — no step-down transformer required for international hardware.
• 50/60 Hz Compatibility: Dual-frequency operation means the APDU9953 is qualified for both North American (60 Hz) and international (50 Hz) facility power without modification — useful for globally standardized rack configurations.
• 5–95% Relative Humidity Tolerance: Broad humidity tolerance accommodates the APDU9953 in non-controlled environments like wiring closets or edge deployments where HVAC precision is limited — the unit won't require a climate-controlled room to operate reliably.

Integration & Compatibility

The APDU9953 belongs to APC's Rack PDU 9000 series, designed for integration into APC's EcoStruxure-based data center management ecosystem. As a switched PDU, it communicates over the network for remote outlet control and monitoring — verify your network management card compatibility with the 9000 series before deployment. The IEC 60309 32A 2P+E input plug is a twist-lock industrial connector standard in commercial and data center installations; ensure your facility's power whips or UPS output is terminated with the matching receptacle. For rack power distribution planning in high-density environments, pair this PDU with an appropriately sized UPS — APC's Smart-UPS or Symmetra lines are the natural upstream partners. If you're building out a complete rack power strategy, review your UPS selection alongside PDU capacity to ensure the upstream unit can sustain the full 32A draw under load. The vertical side-mount design is compatible with standard EIA 19-inch racks and most two-post configurations with adequate depth for the cord management.

What's in the Box

• 1x APDU9953 Switched Zero U Rack PDU
• 1x Installation guide
• 1x Rack mounting brackets
• 1x Safety guide

Frequently Asked Questions

Q: What input plug does the APDU9953 use, and is it compatible with standard data center power whips?

A: The APDU9953 uses an IEC 60309 32A 2P+E (two-pole plus ground) twist-lock input plug. This is a standard industrial connector widely used in commercial and data center environments. Verify that your facility's power distribution or UPS output is terminated with the matching IEC 60309 32A receptacle before ordering.

Q: Does the APDU9953 mount in a standard 19-inch rack, and how much rack space does it consume?

A: The APDU9953 is a Zero U unit — it mounts vertically along the side of the rack rather than occupying rack units. This preserves your full rack unit inventory for active equipment. It is not rack-mountable in the traditional horizontal 1U/2U sense; it uses the side-mount position.

Q: What is the input voltage and frequency range for the APDU9953?

A: The APDU9953 accepts 200–240V input at 50 or 60 Hz, covering both standard North American 208V data center distribution and international 230V facility power. The 32A rating applies across this voltage range.

Q: Can I remotely reboot individual devices connected to the APDU9953?

A: Yes — as a Switched PDU, the APDU9953 supports per-outlet remote power switching, which allows you to cycle individual connected devices over the network without a physical site visit. This is the core operational advantage of the switched PDU class over metered or basic PDUs.

Q: What is the cord length on the APDU9953, and is it sufficient for typical cabinet installations?

A: The APDU9953 ships with a 3.05-meter (approximately 10-foot) input cord. This length is generally sufficient to reach from a rack-mounted UPS output or an overhead/underfloor power distribution point to the PDU's side-mounted position in a standard cabinet.

Q: What is included in the box with the APDU9953?

A: The APDU9953 ships with the PDU unit itself, rack mounting brackets, an installation guide, and a safety guide. No network management card is listed in the included accessories — verify separately whether a network card is required for your remote switching use case.

Karl Wilson

The APDU9953 sits in the part of the PDU market that actually solves operations problems rather than just distributing power. The 32A/200–240V input via IEC 60309 means this unit is built for real data center infrastructure — not a closet with a 15A wall outlet — and the switched architecture gives you the remote outlet control that turns a locked-up device at a remote site from a dispatch event into a 30-second fix from the NOC.

Technical Highlights:

• 32A IEC 60309 Input: The twist-lock 2P+E connector at 32A is the standard termination for PDU-class loads in commercial facilities — not a NEMA 5-15 that gets overloaded when you actually fill the rack. At 200–240V, this covers 6.4–7.7kW of connected load capacity, which is realistic for a fully populated NVR/switch/compute rack.
• Zero U Vertical Side Mount: Vertical mounting along the rack side is genuinely zero overhead — you don't give up a single rack unit. The 182.9cm unit height covers most standard 42U cabinet heights, distributing outlets across the full usable range of the rack rather than concentrating them at one elevation.
• 7.34 kg Unit Weight: At 7.34 kg, the APDU9953 is substantial — plan your side-mount rail and bracket load ratings accordingly, particularly in mobile or seismically braced racks where side-mounted mass adds a moment arm.

Deployment Considerations:

• The IEC 60309 32A input is non-negotiable — if your facility runs NEMA L6-30 or L6-20 whips, you need a power cord adapter or a re-termination before this PDU will connect. Confirm facility plug compatibility before the unit arrives on site.
• Switched PDU network management requires a compatible network card (not included per the box contents). Budget for the management card separately and verify it is supported on the 9000 series — without it, you have a basic PDU with no remote switching capability.

The APDU9953 is the right unit for a high-density security operations rack — think a co-location cage or a purpose-built security NOC cabinet with NVRs, managed PoE switches, and edge compute — where remote power management eliminates the operational gap between
