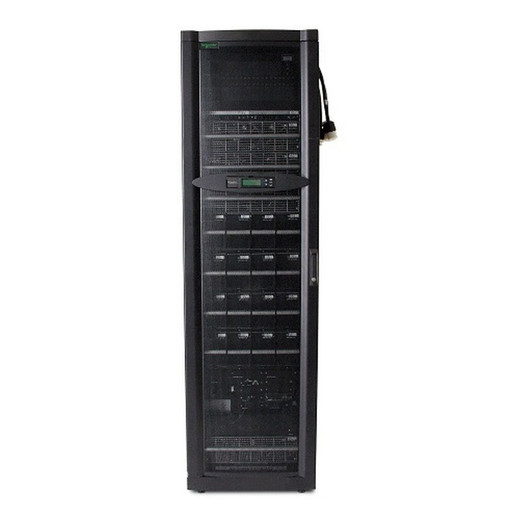

APC - APC Pre-cfg 20 KW UPS PDU 208 V W/9 OUT - ISX20K20F
APC - APC Pre-cfg 20 KW UPS PDU 208 V W/9 OUT - ISX20K20F
APC - APC Pre-cfg 20 KW UPS PDU 208 V W/9 OUT - ISX20K20F
Product images are provided for reference and may not represent the exact model, configuration, or included components.

No Bots, Just Experts

Questions about this product? Free pre-sales support from a senior specialist — product questions, compatibility checks, BOM quotes, price confirmation — typically answered within one business day. Need camera placement or system design work? Engineering time is $175 per hour (qty 1 = 1 hour). Hardware buyers get up to one hour ($175) credited back on their order.

Get Free Pre-Sales Support Buy Design Hours ($175/hr)
Description

APC by Schneider Electric ISX20K20F Battery Cabinet

Overview

The APC ISX20K20F is a 42U rack-height battery cabinet designed to house sealed Lead-Acid batteries, providing critical backup power for APC's InfraStruXure power systems. This unit is engineered for environments requiring high-density, reliable uninterruptible power, such as data centers or enterprise IT rooms. Its 20 kW / 20 kVA configured power capacity ensures substantial runtime for connected equipment. The ISX20K20F model specifically supports a 208V nominal output and integrates seamlessly with compatible APC power arrays.

Compatibility

This battery cabinet is part of the APC InfraStruXure power management ecosystem. It is designed for use with APC power modules and UPS systems that support 208V nominal output and utilize the SYBT4 replacement battery. While specific UPS models are not listed in the provided data, it is intended for integration into larger APC power distribution architectures.

Installation Notes

The ISX20K20F requires a 208V 3-phase input connection via a Hard Wire 5-wire (3PH + N + G) configuration. It features built-in maintenance and static bypass capabilities for serviceability. The cabinet stands 42U tall and is designed to house a single rack of batteries. Typical recharge time for the 5376 VA-h battery capacity is approximately 2.65 hours. The unit is black and weighs approximately 1803 lb.

What's in the Box

  • 1x InfraStruXure ISX20K20F Battery Cabinet
  • 1x Installation guide
  • 1x Pre-installed whips
  • 1x Start-Up Service
  • 1x User Manual
  • 1x Web/SNMP Management Card
Expert Analysis
Specifications
Manufacturer Website Address: http://www.schneider-electric.com
Product Model: ISX20K20F
Product Name: InfraStruXure ISX20K20F Battery Cabinet
Type: Power Array Cabinet
Input Voltage: 220 V AC
Dimensions: 81.5"
Weight (Approximate: 1803 lb
Package Contents: InfraStruXure ISX20K20F Battery CabinetInstallation guidePre-installed whipsStart-Up ServiceUser ManualWeb/SNMP Management Card
Rack Units: 42U
Number Of Racks: 1
Color: Black
Configured Power: 20 kW / 20 kVA
Max Configurable Power: 20 kW / 20 kVA
Nominal Output Voltage: 120V,208V,208V 3PH
Bypass: Built-in Maintenance Bypass,Built-in Static Bypass
Output Connections: 9 x NEMA L21-20
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: Hard Wire 5-wire (3PH + N + G)
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte, leakproof
Battery Volt-Amp-Hour Capacity: 5376
Typical Recharge Time: 2.65 hour(s)
Replacement Battery: SYBT4
Rbc Quantity: 1
freight: 999.64
