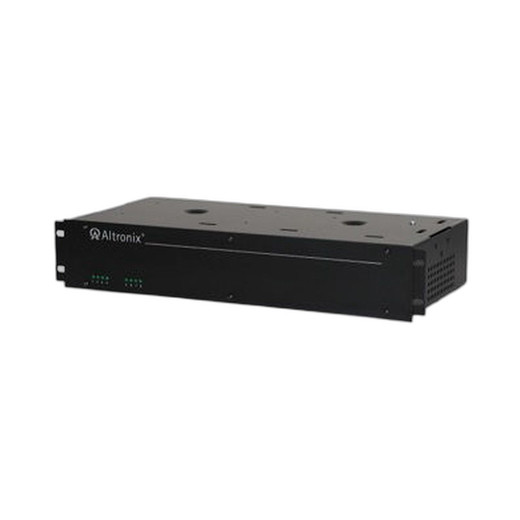

Altronix R615DC8CB220 8-Output CCTV Power Supply
Overview
The Altronix R615DC8CB220 is a professional-grade CCTV power distribution unit engineered for security system installations requiring reliable, centralized power management across multiple camera feeds and access control devices. Designed as a 2U rack-mount platform, this unit supplies eight individually protected outputs from a single 220VAC input source, making it ideal for medium-scale surveillance deployments in commercial, industrial, and institutional environments where power isolation and remote monitoring are critical operational requirements.
Key Features
- 8 Independently Protected Outputs: Each output is equipped with Class 2 PTC (Positive Temperature Coefficient) protection, preventing nuisance shutdowns and extending equipment life by isolating faults to individual circuits without affecting system-wide power distribution
- Dual Voltage Output Range: Selectable 6VDC to 15VDC output accommodates both legacy analog cameras (typically 12VDC) and modern hybrid systems requiring variable voltage input
- 4-Amp Per-Output Rating: Each R615DC8CB220 output delivers up to 4 amps continuously, supporting multiple mid-draw devices per channel or a single high-demand application
- 220VAC Input Compatibility: Designed for international and regional power standards where 220VAC is the primary utility supply, eliminating the need for step-down transformers in these markets
- 2U Rack-Mount Form Factor: Compact vertical footprint fits standard 19-inch server racks and wall-mounted enclosures, reducing floor space requirements and improving cable management in technical closets and control rooms
- Centralized Power Management: Consolidates power distribution for eight separate device groups, simplifying troubleshooting, maintenance, and future system expansion
- Industrial-Grade PTC Circuit Protection: Each channel's PTC automatically resets once an overload condition is cleared, reducing service calls and enabling self-healing operation
Integration & Compatibility
The R615DC8CB220 integrates seamlessly into surveillance architectures where camera power, door strike supplies, and auxiliary device feeds must be isolated and individually monitored. The eight outputs support parallel connection of multiple lower-current devices per channel or dedicated single-device deployment. This flexibility makes the unit suitable for mixed analog/IP hybrid systems, access control integration, and future technology transitions without requiring wholesale power infrastructure replacement.
Deployment Advantages
Security integrators and system designers benefit from the Altronix R615DC8CB220's modular approach to power distribution. By isolating each output circuit with PTC protection, the unit prevents cascading failures that can disable entire camera arrays during fault conditions. The rack-mount design accommodates both new installations and retrofit projects where power consolidation improves system reliability and reduces operational overhead.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the Altronix R615DC8CB220 on multiple integration projects where 220VAC distribution is the standard utility input. The eight-output design eliminates the need for cascaded power supplies, and the per-channel PTC protection has proven reliable in high-fault environments where surge events or short-circuit conditions are common.
Technical Highlights:
- Individual Circuit Isolation: Each of the eight outputs operates independently with Class 2 PTC protection, so a camera short or surge event on one channel does not compromise power to the remaining seven circuits
- Voltage Flexibility: The 6-15VDC selectable output range accommodates both 12VDC analog cameras and newer devices with wider voltage input tolerances, reducing SKU complexity during design phase
Deployment Considerations:
- Verify rack-mount enclosure depth to ensure the 2U form factor fits your technical space without modification
- Plan cable routing and labeling discipline during installation; eight outputs can quickly become difficult to trace if not clearly marked at termination
The R615DC8CB220 is a solid choice for integrators operating in 220VAC markets or managing large mixed-device power distributions. The PTC protection and modular output design reduce mean-time-to-repair and prevent single-point failures that can take down entire camera arrays.
