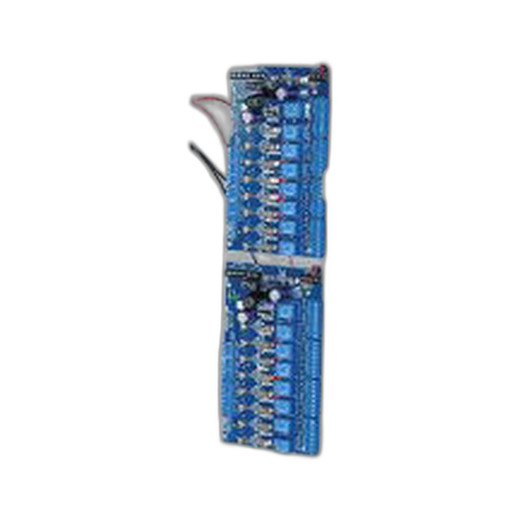

Altronix MAXIMAL5 12VDC 9A Access Power Controller
The Altronix MAXIMAL5 is a compact access power controller that converts 115VAC input to regulated 12VDC output while simultaneously managing 16 independent fused relay channels. Purpose-built for access control installations, the MAXIMAL5 consolidates power supply and relay switching in a single BC800 enclosure, eliminating the need for separate power distribution and relay modules. The integrated battery charging circuit supports auxiliary backup batteries, ensuring sustained power to door strikes and magnetic locks during utility outages.
Key Features
- 16 Fused Relay Outputs: Independent switching channels with individual fuses. Each relay can drive a door strike, magnetic lock, or auxiliary solenoid without cross-load interference.
- Regulated 12VDC at 9A: Clean, stable output from 115VAC input. The 9A main current capacity supports multiple simultaneous door activations on a single controller.
- Integrated Battery Charging: Built-in charging circuit conditions external backup batteries without external regulators. Maintains door security during power loss.
- BC800 Form Factor: Compact single-gang enclosure footprint. Mounts in standard electrical boxes or equipment racks, reducing installation labor and space overhead.
- Fused Protection: Each relay output is individually fused. A shorted door strike on one channel does not disable remaining relay outputs.
- Lifetime Limited Warranty: Manufacturer warranty covers defects in materials and workmanship over the product life cycle.
The MAXIMAL5 addresses a critical gap in mid-scale access control deployments. Most facilities with 8–16 door strikes or magnetic locks cannot justify separate power supplies, battery chargers, and relay panels. This controller bundles those three functions into one unit, reducing bill-of-materials complexity and accelerating wiring schedules on new construction or retrofit projects.
Relay output architecture is the key operational advantage. Unlike solid-state output modules that share a common bus, the MAXIMAL5's 16 independent fuses ensure that a single failed load (e.g., a shorted door strike coil) cannot cascade across the entire system. Integrators can confidently daisy-chain multiple MAXIMAL5 units on the same 115VAC circuit without risk of single-point failure. The 9A total output capacity maps cleanly to typical access control loads: a standard 12VDC door strike draws 0.8–1.2A; a magnetic lock draws 0.5–1.5A depending on frame size. Most deployments operate well under saturation, leaving headroom for surge current on solenoid activation.
Battery backup integration is straightforward. The charging circuit floats on the main 12VDC rail and automatically charges external sealed lead-acid or lithium backup batteries without requiring a separate charger module. On loss of 115VAC input, the battery seamlessly supplies the 12VDC bus. This configuration is industry-standard in access control design and eliminates the need for UPS modules or additional power conditioning equipment. The MAXIMAL5 supports batteries ranging from small 7Ah units (for 2–3 hours of backup on moderate load) to larger 20–24Ah packs (for extended overnight or multi-day backup scenarios). Capacity is limited only by physical space and facility power budget during recharge.
Integration with access control systems is transparent. The relay outputs are dry-contact form-C switches — they carry no voltage or data signaling. Any 12VDC access control panel (Salto, HID, Gallagher, Lenel) can trigger relays via standard 24VDC to 12VDC logic level adapters or direct relay coil connections. The MAXIMAL5 does not require proprietary software, firmware updates, or network connectivity. It is a pure analog power and switching device, which makes it ideal for facilities that operate legacy access control systems or require zero-dependency backup circuits for life-safety doors.
The Altronix MAXIMAL5 is best suited for integrators and end-users deploying traditional wired access control in small to mid-market facilities (10–50 controlled openings per location). Its fused-relay architecture, integrated battery charging, and compact BC800 form factor make it the standard choice for new construction electrical rooms and retrofit projects where space, reliability, and serviceability are equally weighted. For larger campuses or high-density access scenarios, consider stacking multiple MAXIMAL5 units or exploring Altronix's modular power and relay platforms. Explore the Altronix catalog for additional power distribution and battery backup options.
