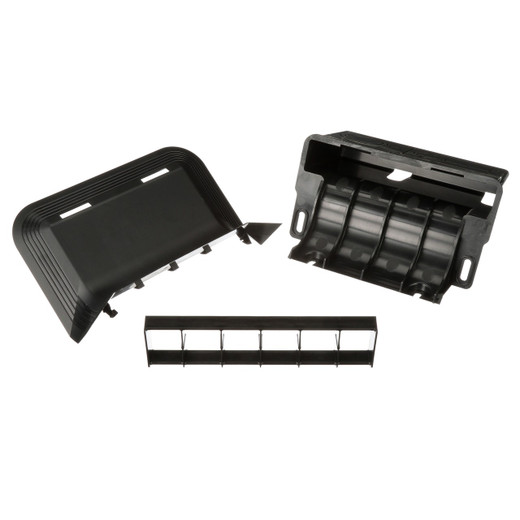

Panduit AFR4WTRBL Above Floor Raceway Wall Transition Fitting
Running cables from floor-based raceway systems into wall cavities presents a common challenge in commercial installations: maintaining a clean, code-compliant pathway without exposed wiring or improvised transitions. The Panduit AFR4WTRBL wall transition fitting solves this by providing a purpose-built interface between Pan-Way® above floor raceway and in-wall cable routes. Designed specifically for use with the AFR4BCBL6 above floor raceway channel, this black-finished fitting ensures your cable management system maintains both functionality and professional appearance where horizontal runs meet vertical pathways.
Key Features
- Engineered for seamless integration with Panduit AFR4BCBL6 above floor raceway channel
- Black finish provides discrete appearance in conference rooms, control centers, and office environments
- 4.62" height × 7.16" width accommodates multi-cable bundles typical in security and AV installations
- Pan-Way® sub-brand delivers Panduit's precision manufacturing standards
- Maintains enclosed pathway integrity from floor to wall per NEC Article 800 requirements
- Eliminates exposed cable runs that fail inspection or undermine installation aesthetics
The AFR4WTRBL's 117.5mm × 181.8mm (4.62" × 7.16") profile is sized to handle the cable volumes found in typical IP security deployments—multiple Cat6a runs for cameras, access readers, and intercom endpoints, plus power-over-Ethernet or supplementary 12VDC lines. Unlike improvised floor-to-wall transitions using flexible conduit or surface-mount boxes, this fitting maintains the same pathway cross-section as the AFR4BCBL6 channel, preventing cable pinch points and maintaining bend radius compliance for Category-rated copper and fiber. The black PVC construction matches both the raceway channel and typical commercial wall plates, ensuring the transition blends into the surrounding environment rather than calling attention to infrastructure.
Deploy the AFR4WTRBL in scenarios where floor-based cable distribution meets vertical wall penetrations: security operations centers where console feeds transition to overhead distribution, conference rooms where table connectivity runs up to ceiling-mounted displays and cameras, or retail back-offices where point-of-sale and surveillance cabling enters wall cavities en route to IDF closets. Because the fitting maintains a continuous enclosed pathway, it satisfies commercial building codes requiring plenum-rated or enclosed-pathway methods for low-voltage cabling in occupied spaces. Integrators working under design-build contracts or jurisdictions with strict inspection protocols will find that using manufacturer-specified fittings like the AFR4WTRBL eliminates the rework and delays caused by improvised transitions that fail rough-in inspections.
Panduit's Pan-Way® raceway system is engineered as an integrated family—channels, fittings, mounting hardware—so the AFR4WTRBL's dimensions and attachment method are factory-matched to the AFR4BCBL6 channel. This precision fit prevents the gaps, misalignments, and cable snagging common when mixing raceway brands or using generic fittings. For commercial security integrators, IT/datacenter installers, and AV professionals who stake their reputation on installations that pass inspection the first time and still look sharp years later, the AFR4WTRBL delivers the engineered transition that keeps cable pathways both compliant and inconspicuous from floor to wall.
