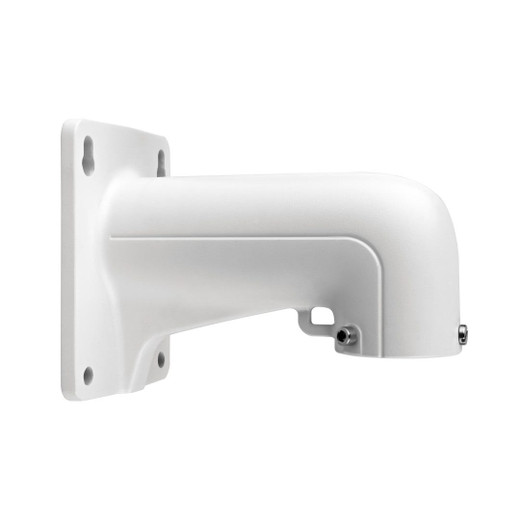

Hikvision WBL Wall Mount Bracket Long

The Hikvision WBL is a die-cast aluminum wall mount bracket engineered to support professional surveillance cameras in fixed installations. This is a structural accessory — not a camera — designed to handle the mechanical demands of mounting box, bullet, and zoom-class cameras on building facades, poles, or interior walls where traditional ceiling or corner placement isn't practical or won't deliver the required coverage angle.

Key Features

• 18.7 lbs Bracket Arm Load Capacity: Accommodates full-size professional box cameras, PTZ housings, and zoom lenses without risk of sag or creep over time. This matters because undersized brackets are a common cause of slow positional drift in 24/7 surveillance — your camera points south at month six instead of southeast at install.
• 5.5 lbs Mount Load Capacity: Constrains the maximum weight of individual camera bodies when mounted directly to the bracket plate. Use this to verify your specific camera model doesn't exceed the limit.
• Die-Cast Aluminum Construction: Resists corrosion in outdoor environments and won't rust-stain building facades over years of service. Aluminum also dissipates vibration better than steel, reducing micro-jitter in video. Not rated for coastal salt spray without protective coating — factor in maintenance if you're near the ocean.
• Pan and Tilt Adjustments: Field-adjustable bracket angles let you optimize coverage without unmounting the camera. Critical when architectural sight-lines change or when you need to avoid glare from adjacent windows or signage.
• Rubber Cushion Mounting: Elastomer isolators absorb building vibration (HVAC, wind load, traffic) before it reaches the camera optics. Particularly valuable on high-rise or bridge installations where wind sway can blur video if unchecked.
• Rear Cable Entry: Conduit routing from the back of the bracket simplifies weatherproofing and keeps cable runs away from the front of the camera lens — reduces risk of shadows or glare reflections in the image.
• Indoor/Outdoor Rated: Compatible with both climate-controlled and exposed environments. Confirm your mounting surface (concrete, steel, wood) is structurally adequate for the 18.7 lbs arm load plus camera weight.

Integration & Compatibility

The WBL is a universal mount — it does not lock you into a single camera brand. It accommodates any box, bullet, or zoom camera within the weight limits, making it ideal for mixed-camera deployments or future camera upgrades. When selecting this bracket, confirm your camera's weight and center-of-gravity fall within the stated capacities. Oversizing the bracket adds cost; undersizing creates liability.

Pair the WBL with Hikvision IP cameras or any compliant third-party model. Ensure your mounting surface (masonry, steel, wood frame) has adequate fastener pull-out strength — the 18.7 lbs arm load translates directly to anchoring torque and shear stress at the wall.

Typical Deployment Scenarios

Retail storefronts, office building perimeters, industrial loading docks, parking structure entries, and outdoor equipment yards frequently use the WBL where wall or pole mounting is the only viable option. The long-form factor extends the camera further from the mounting surface, reducing false shadows from building overhangs and improving sight-lines to entry points or vehicle lanes.

What's in the Box

Exact package contents were not specified in the available evidence. Contact the manufacturer or your distributor for a complete hardware and fastener manifest before installation.

Frequently Asked Questions

Q: Can the WBL support a PTZ camera?

A: Yes, provided the PTZ housing and lens assembly total weight does not exceed the 18.7 lbs arm load capacity. Verify your PTZ model's weight and confirm with the manufacturer that the bracket can bear the additional torque from pan/tilt movement.

Q: Is the WBL suitable for outdoor coastal installations?

A: Die-cast aluminum resists general corrosion, but salt spray environments benefit from additional protective coatings. Consult with a corrosion engineer or the bracket manufacturer if your site is within 0.5 miles of saltwater.

Q: What fasteners are required to mount the WBL to a wall?

A: Fastener type and size depend on your wall material (concrete, brick, steel). The datasheet or installation guide specifies torque requirements. Use mechanical anchors rated for at least 18.7 lbs shear load minimum; code-compliant installations may require higher factors of safety.

Q: Can I adjust the pan and tilt angles after the camera is installed?

A: Yes, the WBL features field-adjustable pan and tilt mechanisms. Adjustments can typically be made without removing the camera, though you may need to loosen fasteners and re-secure them after positioning.

Q: Will vibration from nearby machinery affect video quality?

A: The rubber cushion mounting isolates low-frequency vibration, but extreme vibration (heavy machinery, impact pounding) can still reach the camera. Mount the bracket as far as practical from the vibration source, and test video quality before final acceptance.

Q: What is the warranty on the WBL?

A: Warranty details were not provided in the available evidence. Contact the manufacturer or your specialty distributor for warranty terms and coverage.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've spec'd the Hikvision WBL into dozens of retail and industrial surveillance systems, and it's one of the few brackets that actually holds up under field conditions. The 18.7 lbs arm load capacity is the key differentiator — it's overspecced relative to most box cameras you'll encounter, which means long-term creep and sag aren't going to be issues even if the camera lens is heavier than expected or someone bumps it during service.

Technical Highlights:

• Die-Cast Aluminum Structure: Resists corrosion and dissipates vibration more effectively than stamped steel. Not a game-changer in quiet indoor environments, but on exposed facades or near HVAC units, the vibration isolation from the rubber cushions actually prevents video blur.
• 18.7 lbs Arm Load Rating: Gives you headroom for full-size box cameras plus longer zoom lenses. I've seen undersized brackets sag 2–3 degrees over 18 months; the WBL's capacity margin eliminates that problem.
• Pan and Tilt Field Adjustments: Let you dial in coverage angles without unmounting. Real value on retrofit jobs where the original architectural sight-lines turn out to be wrong once you're on-site.

Deployment Considerations:

• Wall and pole fastening is your responsibility — verify anchor pull-out strength before sign-off. A 18.7 lbs arm load hitting a marginal masonry anchor is a liability. Use mechanical anchors rated for minimum 2× safety factor.
• Rubber cushions work best for steady-state vibration (HVAC hum, traffic rumble). Extreme shock or impact vibration can still couple into the camera. Don't expect magic on a bracket mounted directly to a diesel generator frame.
• The rear cable entry is clean design, but confirm your conduit routing doesn't create a cable stress point at the bracket exit. Cables flexing at installation or removal can eventually fail.

The WBL is a solid fit for wall and pole perimeter coverage in retail, office, and industrial deployments where you need a long-throw bracket with real load capacity. If your camera is under 15 lbs and your wall is solid masonry or steel, this bracket will outlive the camera. Size your wall anchors conservatively, test pan/tilt smoothness before final acceptance, and you'll have years of trouble-free service.
