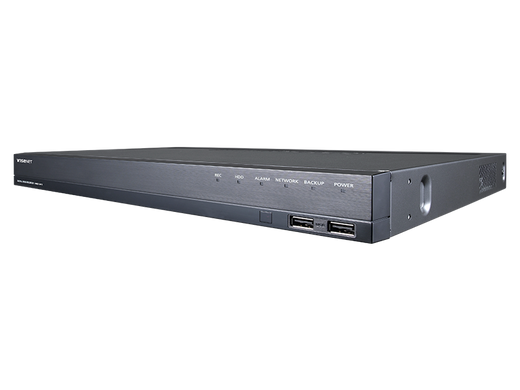

Hanwha HRD-841-6TB 8 Channel 4M Analog HD Digital Video Recorder, 6TB

The world of surveillance demands reliability, precision, and innovation. The Hanwha HRD-841-6TB sets a new standard in surveillance technology. This …

Add to cart for sale price
$1,505.00
$794.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install

Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Hanwha HRD-841-6TB 8 Channel 4M Analog HD Digital Video Recorder, 6TB

$1,505.00
$794.99

Your recommended setup

Review items below — quantities update pricing automatically.

Item Qty Status Price

Bundle Summary

Bundle Subtotal: $0.00
Optional Add-Ons: $0.00
Services: $0.00
Total: $0.00

Overview

SKU: HRD-841-6TB
UPC: 849688009574
Condition: New
Availability: No Longer Available
Warranty 3-year warranty
Description

The world of surveillance demands reliability, precision, and innovation. The Hanwha HRD-841-6TB sets a new standard in surveillance technology. This 8 Channel 4M Analog HD Digital Video Recorder brings together remarkable features, unmatched compatibility, and expansive storage to deliver an exceptional surveillance solution for businesses and IT professionals. Let's delve into the key features, compatibility options, and detailed specifications that make this product stand out.

Key Features:

  • High Resolution Recording: The HRD-841-6TB supports up to 4 Megapixel resolution, ensuring that every detail is captured with astonishing clarity.
  • Flexible Camera Compatibility: Whether it's 4MP AHD, TVI, CVI (Max. 2MP), or analog cameras, this DVR accommodates them all, providing versatility in your surveillance setup.
  • Impressive Recording Rates: Enjoy recording rates of up to 120/100 frames per second at 4MP and up to 240/200 frames per second at 1080p, ensuring that no moment is missed.
  • Multiple Video Outputs: Connect to different monitors and displays seamlessly using HDMI and VGA video outputs, offering you flexibility in viewing.
  • Enhanced Audio Capabilities: With 4 audio input channels and 1 audio output channel, you can include audio in your surveillance for a more comprehensive security solution.
  • Expansive Storage: The HRD-841-6TB features two internal HDD bays, supporting a maximum of 12TB storage, ensuring long retention of crucial footage.
  • Coaxial Camera Control: Take advantage of coaxial cable support, including Pelco-C and ACP protocols, for smooth camera control.
  • Remote Monitoring: Stay connected and informed with smartphone support for both Android and iOS devices. Monitor your property remotely and receive real-time updates, enhancing your peace of mind.

Compatibility:

The Hanwha HRD-841-6TB is designed to work seamlessly with various surveillance cameras, including 4MP AHD, TVI, CVI (Max. 2MP), and analog cameras. This wide compatibility ensures that it can easily integrate into your existing surveillance infrastructure.

Specifications:

  • Channels: 8 channels
  • Resolution: Up to 4MP AHD DVR (Supports TVI, CVI up to 2MP, and analog cameras)
  • Recording Rate: Up to 120/100 fps @ 4MP, Up to 240/200 fps @ 1080p
  • Video Outputs: HDMI / VGA
  • Audio Inputs: 4 channels
  • Audio Output: 1 channel
  • Storage: Up to 2 internal HDDs (Max. 12TB)
  • Coaxial Compatibility: Supports Pelco-C, ACP
  • Smartphone Support: Android, iOS

Package Contents:

Your purchase of the Hanwha HRD-841-6TB 8 Channel 4M Analog HD Digital Video Recorder includes:

  • 1x Hanwha HRD-841-6TB 8 Channel 4M Analog HD Digital Video Recorder

Elevate your surveillance infrastructure with the Hanwha HRD-841-6TB. It's the ideal choice for those seeking exceptional features, compatibility, and storage capacity to meet their security needs.

Specifications
: Analog camera
Inputs: 8CH(1Vp-p 75ohm, BNC)
Signal Type: AHD(4MP, 1080p, 720p); HDTVI(1080p); HDCVI(1080p); CVBS(NTSC/PAL)
Local Display: HDMI: 3840 x 2160, 2560x1440, 1920x1080, 1280x720; VGA: 1920x1080, 1280x1024, 1280x720
Resolution: 4MP(30/25fps), 2MP(30/25fps), 1MP(30/25fps), 960H(30/25fps), 720H(30/25fps) 960x576(30/25fps) per CH
Video Compression: H.264
Record Rate(Analog: [Analog Camera(NTSC/PAL)]: 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH
Mode: Manual, Schedule (Continuous/Event), Event(Pre/Post), Time lapse (1~30 fps(N), 1~25fps(P))
Event Trigger: Video Loss, Motion(Level 1~10), Alarm Input(16), Tampering(Level Low,Medium, High)
Event Action: E-mail, Alarm out, Buzzer
User: Max. 4 Users (Local 1, Remote 3)
Simultaneous playback: 8CH(Local Monitor)
Supported HDD: Up to 6TB
HDD Slot: SATA 2ea(Max 12TB)
File backup: BU, SEC, AVI
Function: Multi channel(Upto 8CH) Play, Date-Time/Title display
Control: Via GUI, Webviewer, Smart Viewer, Wisenet Mobile Viewer, System Controller
Support Model: iOS, Android
Protocol Support: RTP, RTSP, HTTP
Max. Remote Users: Search(1), Live Unicast(10)
Coaxial Control: CVBS(Pelco-C)/AHD
HDMI: 1EA
VGA: 1EA
BNC: 8CH In / 1CH Out(Spot Output)
e-SATA: 1EA
Audio Support: Out(1EA, RCA, Line)
Ethernet: RJ-45(10/100/1000BASE-T)
Alarm: In 8EA, Out 4EA\n - Relay Out1(NO/NC/COM)\n - Relay Out2~4(NO/COM)
USB: 3EA(Front 2, Rear 1)
Serial(Protocols: RS-485 (Samsung-E/Samsung-T/Pelco-D/Pelco-p/Panasonic/ Phillips/ AD/ DIAMOND/ ERNA/ KALATEL/ VCL TP/VICON/ ELMO/GE) * for PTZ
Power inlet: 1EA DC Input Jack
System Control: Mouse, Remote Controller, Web Viewer, System controller(SPC-7000, SPC-6000)
Language: English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Chinese(Traditional)
Operating Temperature: 0°C to +40°C(+32℉ to +104℉)
Operating Humidity: 20% ~ 85% RH
Certification: UL, CE, FCC, KC
Input Voltage: DC12V Adaptor(100~250V AC ±10%, 50/60Hz)
Power (Max: Max. 23W (3T HDD 1ea)
Color / Material: Black / Metal
Dimension (WxHxD: W370.0x H44.0 xD320(14.57” x 1.73” x12.6”)
Weight: 3.4Kg (7.5lb) (3TB HDD 1ea)
Protocol: TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP, SNMP
DDNS: Wisenet DDNS
Transmission speed: [Analog Camera(NTSC/PAL)]\n- Main Stream: 4M 15/12fps, 2M 30/25fps, 720p 30/25fps, SD 30/25fp per CH\n- Sub Stream) WD1/4CIF : 12fps/CH, 2CIF/CIF : 30fps/CH(N), 25fps/CH(P)
Transmission Bandwidth: Max. 64Mbps
Input/Output: 4 CH / 1 CH
Audio Communication: 2-Way
Max Remote Users: Search(3), Live Unicast(10), Multicast(20)
Security: User access Log, Watermark
Viewer Software: SSM, Webviewer, Smart Viewer, Wisenet mobile
