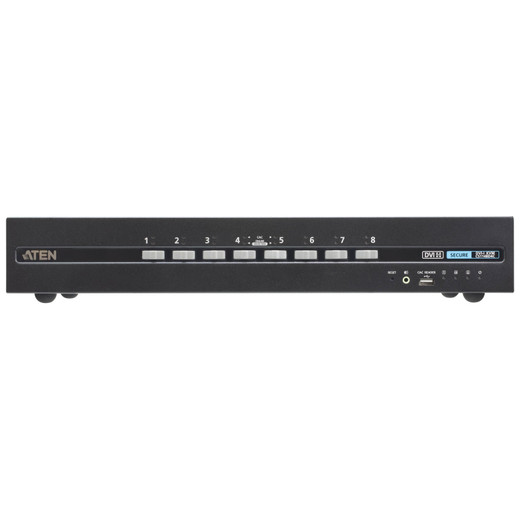

ATEN CS1148D4C 8-PORT DVI DUAL DISPLAY PP4.0 SECURE KVM
Overview
The ATEN CS1148D4C is an 8-port, dual-display Secure KVM switch designed for environments demanding high security and robust data handling. It enables operators to control multiple computers from a single console, ensuring isolation between systems. This unit is ideal for secure government, military, or enterprise facilities where data segregation and tamper-resistance are paramount. The CS1148D4C supports dual DVI-I displays, allowing for simultaneous monitoring of two systems or two displays from a single system, all while meeting stringent PSD PP v4.0 security standards.
Compatibility
This KVM switch supports dual DVI-I Dual Link video interfaces for both the console and computer connections. It is compatible with any DVI-I Dual Link video source and display. The unit provides 8 computer connections, enabling control of up to eight separate systems. Its design accommodates standard USB keyboards and mice, and it features support for Common Access Cards (CAC) via its dedicated reader port, essential for secure authentication protocols.
Installation Notes
The CS1148D4C requires DVI-I Dual Link cables for both video connections to the computers and the console. Standard USB cables are used for keyboard and mouse connections. Port selection is managed via front-panel pushbuttons or an optional remote port selector, ensuring convenient operation without physically accessing the rear ports. The unit supports a maximum resolution of 3840 x 2160 at 30 Hz on both displays.
