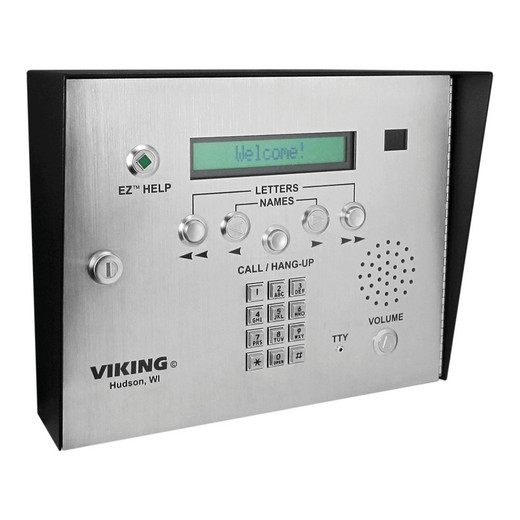

Viking AES-2005S 525-Name Apartment Entry System w/ Camera

Viking Electronics AES-2005S Apartment Entry System with Display and Color Camera

The Viking Electronics AES-2005S is a surface-mount apartment entry system built for multi-tenant residential and commercial properties that need a durable, expandable directory with integrated color video at the door. Starting at 75 names and expandable to 525 tenants via the ES-3 door controller, the AES-2005S handles buildings that grow — without ripping out the panel. Its vandal-resistant housing and wide operating temperature range make it a defensible choice for exterior vestibules, covered entryways, and lobby applications where the hardware will take real-world punishment. If you're spec'ing a access control solution for a mid-size apartment complex or mixed-use building, this unit covers the directory, intercom, and video functions in a single surface-mount footprint.

Key Features

• 525-Tenant Scalability via ES-3 Controller: The base unit ships with 75 names, but pair it with Viking's ES-3 door controller and you support up to 525 tenants and up to 32 separate entry points — meaning a phased campus or multi-building property can share infrastructure without re-wiring the front end. The ES-3 also logs up to 1,024 entry events, giving you an auditable access history without a separate access control platform.
• Back-Lit LCD with 1/2" Characters: The display is readable in low-light conditions — important for any vestibule where exterior lighting is inconsistent. Half-inch tall characters are legible to older residents without squinting, reducing support calls about finding names in the directory.
• Integrated Color Camera: The built-in color camera gives tenants a visual confirmation of who's at the door before buzzing them in, and gives property managers a record of entry attempts. This removes the need for a separate doorbell camera or video intercom panel in most standard lobby configurations.
• -15°F to 130°F Operating Range: Rated for extremes that cover northern winters and unventilated summer vestibules. Most competitor panels start failing under sustained heat load above 120°F — this unit's thermal ceiling gives you margin for metal enclosures in direct sun. Operating humidity rated 5% to 95% non-condensing handles coastal and humid-climate installs without corrosion concerns.
• 5A Relay Contacts at 30V DC / 250V AC: The relay output handles both low-voltage DC strikes and standard AC electric latch hardware — you're not locked into a specific door hardware spec. At 5A, it can drive most commercial electric strikes directly without a relay amplifier board in between.
• 800 ft Maximum Wiegand Run: If you're integrating a Wiegand-output credential reader (Viking lists compatibility with PRX-1 and PRX-2 proximity readers), you have up to 800 feet of wire run before signal degradation becomes a concern. For a mid-rise building with a remote parking garage reader, that's a meaningful number — most entry systems cap at 500 ft.
• Integrated Modem for Remote Programming: Tenant data and system parameters can be programmed over a standard analog phone line via the built-in modem. For property managers handling multiple sites, this eliminates truck rolls for directory updates — add or remove tenants from the office.
• Surface Mount Dimensions (12.5" x 9.75" x 4.25"): The AES-2005S mounts directly to a flat wall surface with no rough-in box required. A flush-mount variant (AES-2005F, 15" x 12.5" x 3.5") is available if the install allows for a deeper wall cavity. Shipping weight is 17 lbs — plan for two-person installation on a masonry surface.
• 120V AC / 13.8V AC Input Power: Standard 120V AC input with an onboard transformer producing 13.8V AC at 1.25A for internal logic and accessories. No separate power supply needed for most installations — one circuit from the electrical panel handles the unit.
• Vandal-Resistant Housing: The housing is described by Viking as highly vandal resistant — appropriate for the ground-level, high-foot-traffic environments where apartment entry panels live. Surface mount installs are inherently more exposed than flush-mount panels, making housing durability a real factor in product selection.

Integration and Compatibility

The AES-2005S is designed to operate as a standalone entry system or as the front-end panel in a larger door controller network using the Viking ES-3. With the ES-3, the system supports up to 32 entry points and 525 tenants — useful for gated communities or mixed-use developments with multiple controlled access points. Wiegand reader compatibility (PRX-1, PRX-2 and compatible models) enables credential-based access at secondary entry points tied to the same controller. The integrated analog modem supports remote programming over a POTS line, which pairs well with legacy building phone infrastructure still common in older apartment stock. For new construction or fully IP-networked facilities, verify whether your telecom infrastructure supports the analog modem path before spec'ing this unit — it is not an IP-connected panel. Explore the full Viking Electronics line for companion intercoms, door controllers, and telephone entry accessories that integrate with this system.

Frequently Asked Questions

Q: How many tenants can the AES-2005S support?

A: The AES-2005S ships configured for 75 names and is expandable to 525 tenants when paired with the Viking ES-3 door controller. The ES-3 also enables up to 32 entry points and logs up to 1,024 entry events.

Q: What is the warranty on the AES-2005S?

A: Viking Electronics covers the AES-2005S with a two-year limited manufacturer warranty.

Q: Is the AES-2005S surface mount only, or is there a flush-mount option?

A: Both configurations are available. The AES-2005S is the surface-mount version (12.5" x 9.75" x 4.25"). The flush-mount equivalent is the AES-2005F (15" x 12.5" x 3.5"), which requires a deeper wall cavity during rough-in.

Q: Does the AES-2005S require an IP network connection for programming?

A: No. The AES-2005S uses an integrated analog modem for remote programming over a standard POTS telephone line. It is not an IP-networked panel — if your building has eliminated analog phone lines, remote programming will not be available without a compatible analog adapter.

Q: What door hardware does the AES-2005S relay output support?

A: The relay contacts are rated 5A at 30V DC or 250V AC maximum, which covers the majority of commercial electric strikes and magnetic locks operating on either low-voltage DC or standard AC power.

Q: What is the maximum Wiegand cable run for the AES-2005S?

A: The maximum Wiegand run is 800 feet, supporting Viking PRX-1, PRX-2, and compatible proximity readers at remote entry points such as parking garages or secondary building entrances.

James Everett

The spec I keep coming back to on the AES-2005S is the 800-foot Wiegand run. On a mid-size apartment complex — say a 4-story building with a detached parking structure — that distance is the difference between running one controller or two. Being able to put Viking's PRX-1 or PRX-2 reader at a remote gate and still tie it back to the same ES-3 that drives the front door saves real money on controller hardware and reduces your programming complexity considerably.

Technical Highlights:

• 525-Tenant Expansion: Base unit handles 75 names standalone, but the ES-3 controller unlocks full 525-tenant capacity across up to 32 entry points — plan for the ES-3 from day one on any property above 75 units to avoid a panel swap later.
• Relay at 250V AC / 5A: This rating means you can wire directly to standard AC magnetic locks without a relay amplifier — one less failure point in the door hardware chain, and one less component to troubleshoot on a service call.
• -15°F to 130°F Thermal Range: The surface-mount form factor puts this panel in full exposure to ambient temperature extremes. That 130°F ceiling gives you real margin for a metal-clad vestibule in a southern climate where summer surface temps routinely exceed 100°F ambient.

Deployment Considerations:

• The AES-2005S (also searched as AES 2005S) relies on an analog POTS modem for remote programming — verify the building's telecom infrastructure before finalizing the spec. Properties that have cut over to full VoIP with no ATA will need a workaround for remote directory management.
• At 17 lbs and surface-mount depth of 4.25 inches, plan for solid blocking in the wall substrate — particularly on stucco or EIFS exteriors common in western states. Anchor into studs or install a steel backing plate; the weight and leverage on those mounting screws will cause problems in drywall alone over time.

This unit is the right call for a 50–200 unit apartment community doing a controlled access retrofit where the building still has working analog phone lines and needs a single panel to cover directory, intercom, video, and door release without deploying a full IP access control infrastructure.
