Description

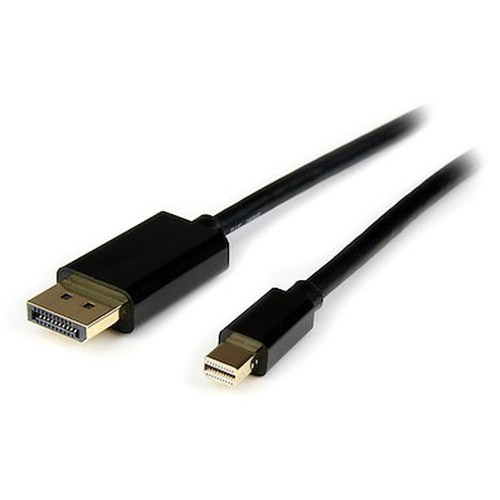

StarTech MDP2DPMM4M Mini-DP to DisplayPort Cable

Overview

The StarTech MDP2DPMM4M is a 4-meter (13.1 ft) cable designed to connect devices with a Mini DisplayPort output to monitors or displays with a standard DisplayPort input. This cable supports the full DisplayPort 1.2 specification, enabling high resolutions and refresh rates critical for detailed surveillance monitoring or multi-display setups. The 4-meter length provides flexibility for routing in server rooms, control centers, or office environments where direct connections are needed without excessive cable slack. The MDP2DPMM4M model ensures reliable signal transmission for 4K video streams.

Compatibility

This cable is compatible with any device featuring a Mini DisplayPort output, including many laptops, workstations, and graphics cards. It connects to any display or monitor equipped with a standard DisplayPort input. It supports HBR 2 (High Bit Rate 2) and MST (Multi-Stream Transport) protocols, allowing for daisy-chaining of multiple displays from a single Mini DisplayPort source if the source device supports MST. This makes it suitable for extending your desktop across multiple screens for enhanced situational awareness in command centers.

Installation Notes

The cable features a 32 AWG wire gauge, providing a balance between flexibility and signal integrity for its length. The connectors are gold-plated for enhanced conductivity and corrosion resistance. The PVC jacket offers durability for standard office and commercial installations. The aluminum-Mylar foil with braid shielding minimizes electromagnetic interference, ensuring a clean signal for resolutions up to 3840x2160 at 60Hz with a bandwidth of 21.6 Gbps.

What's in the Box

  • 1x 4m Mini DisplayPort to DisplayPort Cable
Specifications
Cable Length: 13.1 ft [4 m]
Product Length: 13.1 ft [4 m]
Product Width: 0.8 in [2 cm]
Product Height: 0.4 in [1 cm]
Weight Of Product: 4.8 oz [136 g]
Connector A: Mini-DisplayPort (20 pin)
Connector B: DisplayPort (20 pin)
Wire Gauge: 32 AWG
Connector Plating: Gold
Cable Jacket Material: PVC
Cable Shield Material: Aluminum-Mylar Foil with Braid
Displayport Version: v1.2
Bandwidth: 21.6 Gbps
Max Resolution: 3840x2160 60Hz
Protocols: HBR 2, MST, GTC
Warranty: Lifetime
Brand: StarTech
MPN: MDP2DPMM4M
Type: Monitor
Connectivity: DisplayPort
